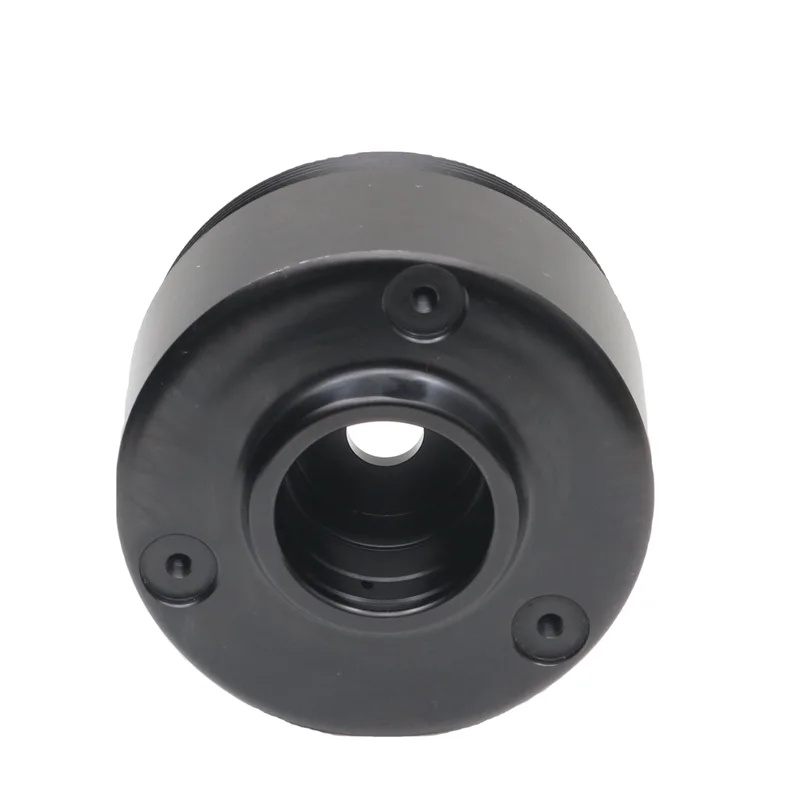

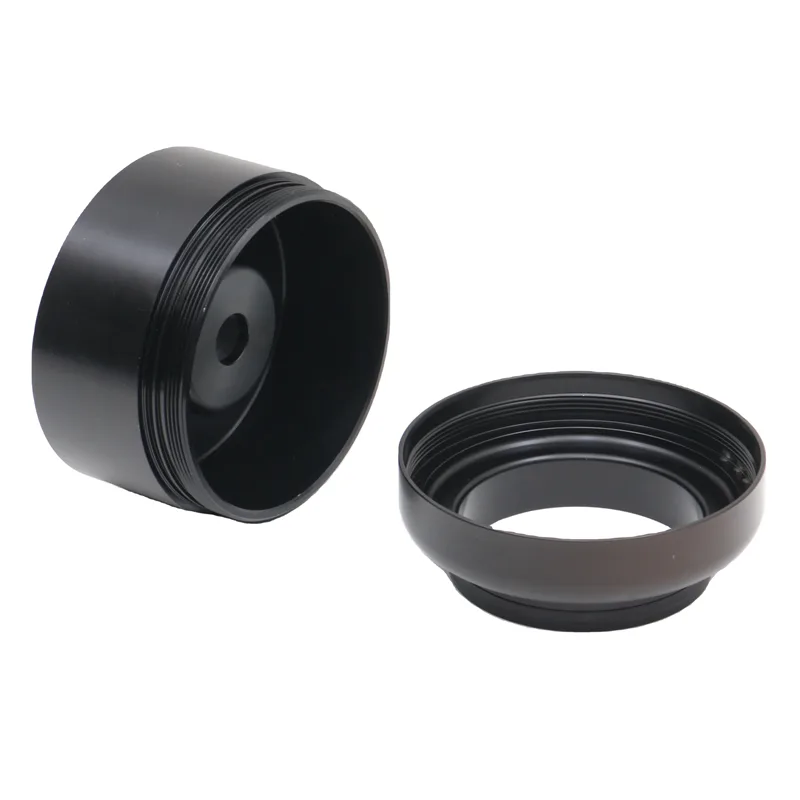

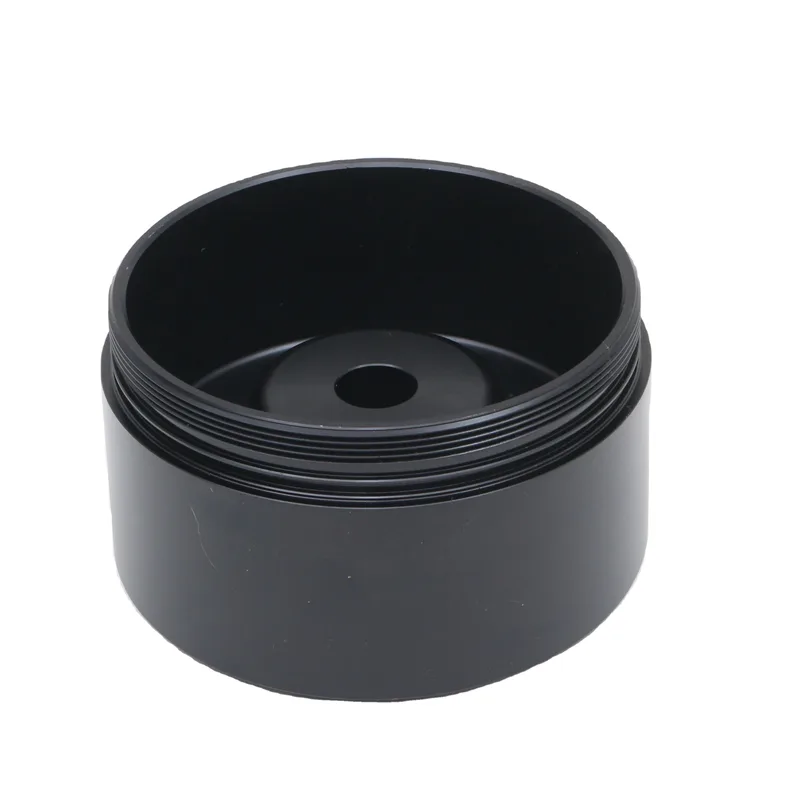

Aluminum Automotive Base

A base item for the mounting arrangement identified in the equipment design. This automotive base is specified in Aluminum. The manufacturing specification includes precision machining.

Technical Overview

• Part: Automotive Base
• Material: Aluminum
• Processing: Precision Machined

Automotive Base Design and Assembly

• Vehicle application: identify the relevant assembly and component drawing revision.
• Mating interfaces: specify fastening, mounting or engagement features used in that assembly.
• Procurement scope: distinguish the individual metal component from a complete vehicle subsystem.

Material and Manufacturing Requirements

The specified material is aluminum. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Define the seating surface, attachment-hole pattern and locating features used to position the adjoining assembly. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
