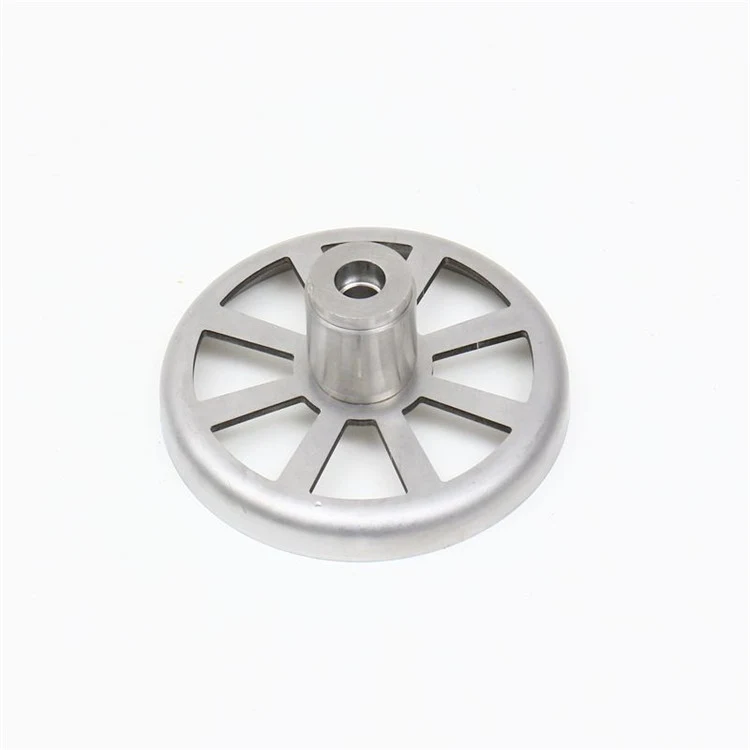

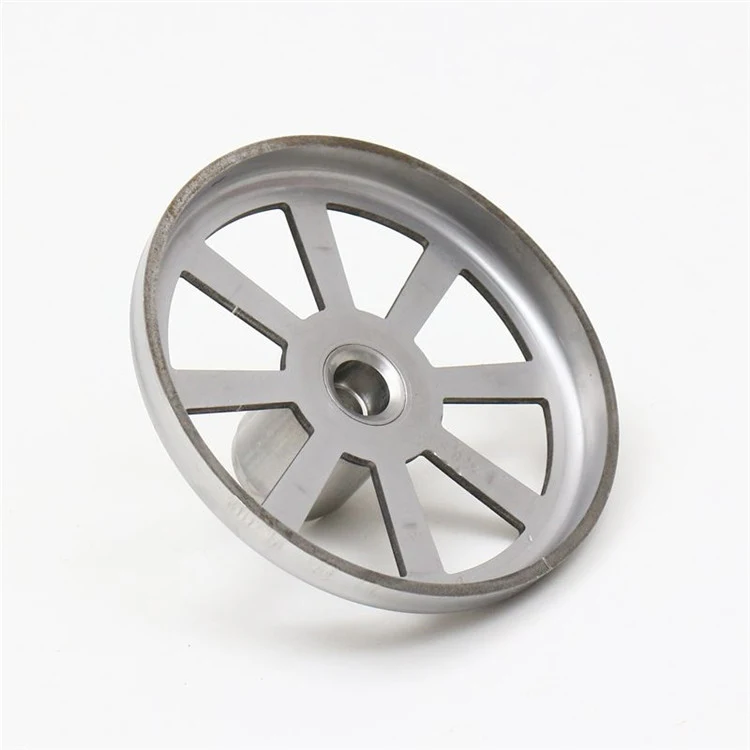

CNC Machined Soy Milk Maker Blade Holder

A blade-holder item for a soy milk maker's cutting assembly. This soy milk maker blade holder is produced to the specified part drawing. The manufacturing specification includes CNC machining.

Technical Overview

• Part: Soy Milk Maker Blade Holder
• Processing: CNC Machined

Soy Milk Maker Blade Holder Design and Assembly

• Machine fit: provide the equipment model and the position of the component within the maker.
• Functional interface: show the connection to the adjacent chamber, shaft, blade or mounting structure as applicable.
• Contact requirements: identify the surfaces exposed to the processed product and the finish specified for those surfaces.

Material and Manufacturing Requirements

The material grade is to be defined with the order drawing. Identify the intended equipment and service environment so that the material requirement can be agreed before the manufacturing specification is finalized.

CNC machining is specified for this component. Supply the latest drawing and, where available, the 3D model, with critical fits and reference datums identified rather than relying on the external shape alone.

Quotation Information

Specify blade attachment, drive interface and seating geometry. Confirm the required fit with the blade and shaft supplied for the machine. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
