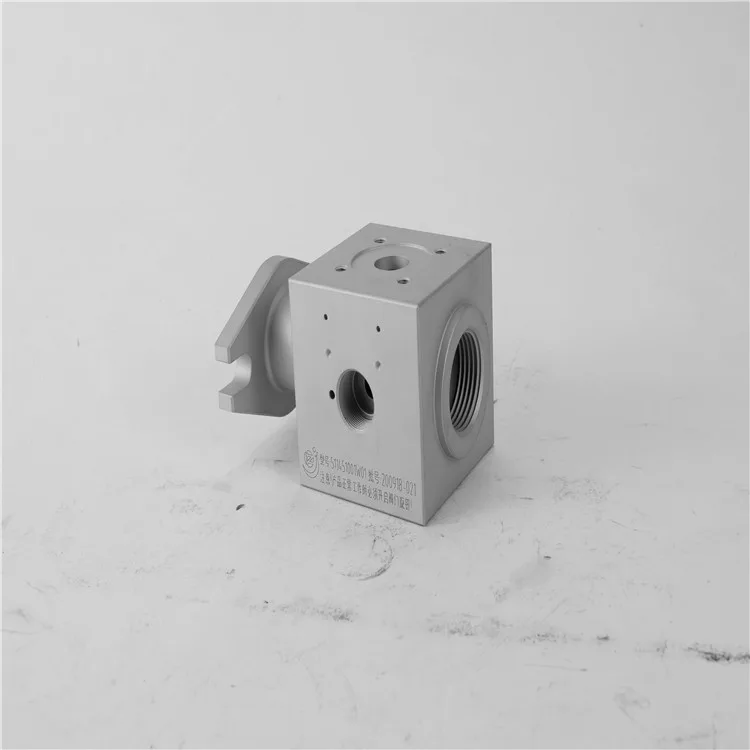

Custom Aluminum Valve Manifold Block

A manifold block for the connection layout defined by the assembly drawing. This valve manifold block is specified in Aluminum. The manufacturing specification includes machining.

Technical Overview

• Part: Valve Manifold Block
• Material: Aluminum
• Processing: Machined

Valve Manifold Block Design and Assembly

• Port map: label each connection, its size and its position relative to the installation datums.
• Passage geometry: define internal routes and identify any intersections or plugged openings.
• Mounting arrangement: show attachment points and the clearance required for connecting hardware.

Material and Manufacturing Requirements

The specified material is aluminum. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Machining is included in the part specification. The drawing should distinguish functional interfaces from general surfaces and identify the dimensions that must be coordinated with the adjoining components.

Quotation Information

Supply port positions, intersecting passage dimensions and mounting-hole coordinates. Identify any plugged passages and the required connection standard. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
