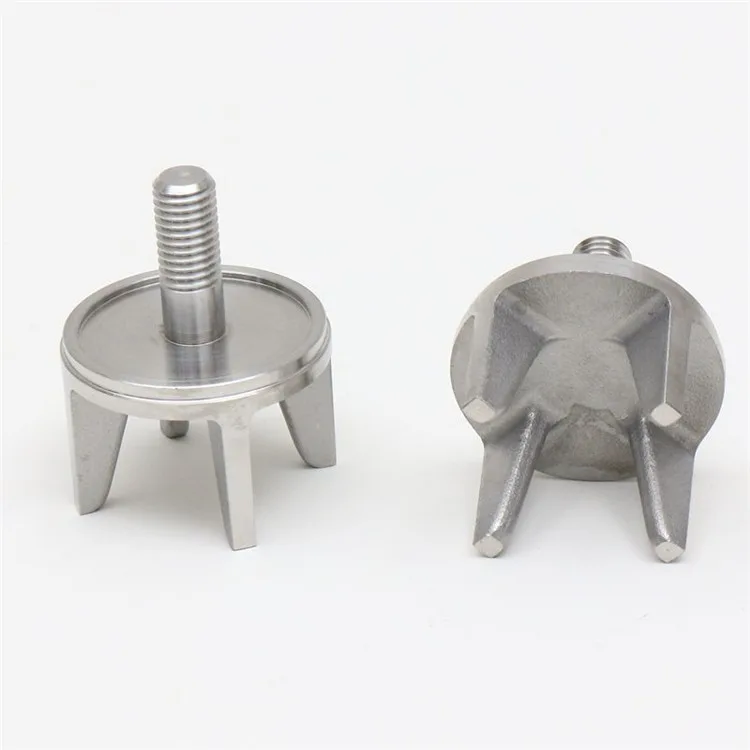

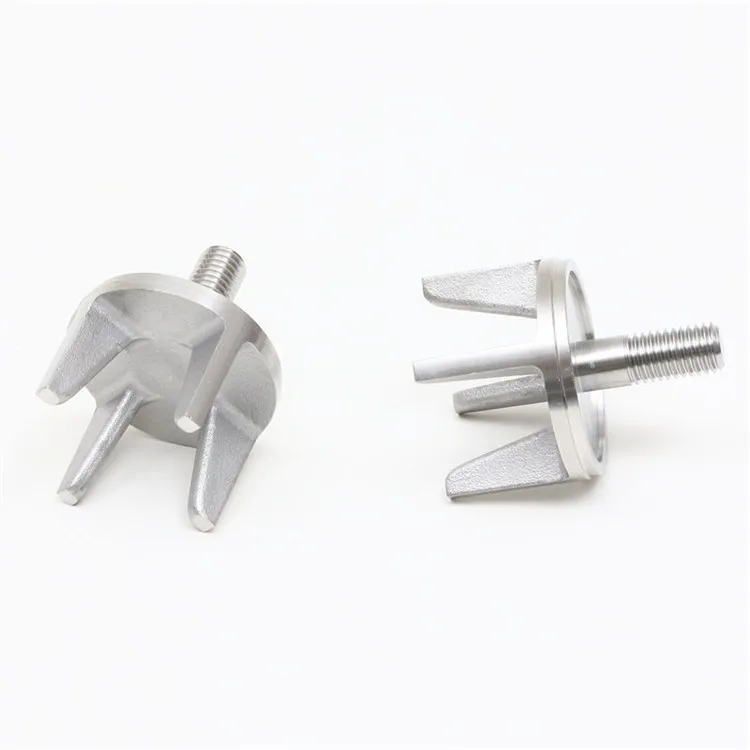

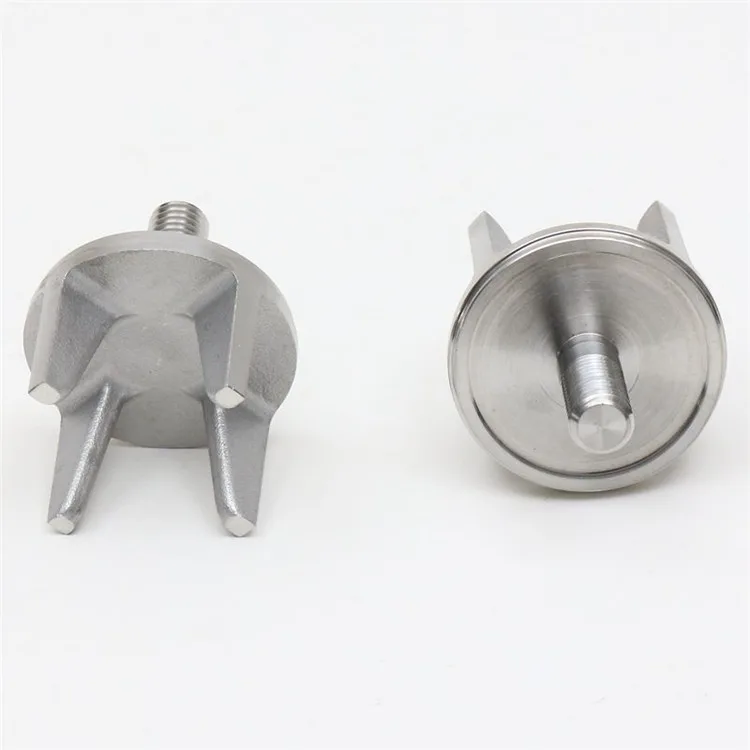

Investment-Cast Stainless Steel Industrial Component

This industrial component is intended to match the interfaces defined by the equipment assembly drawing. This industrial component is specified in Stainless Steel. The manufacturing specification includes investment casting.

Technical Overview

• Part: Industrial Component
• Material: Stainless Steel
• Processing: Investment-Cast

Industrial Component Design and Assembly

• Part geometry: provide a dimensioned drawing showing the complete outline and any functional internal features.
• Assembly interfaces: identify the mating parts, installation datums and dimensions that control fit.
• Order definition: specify the material, required surface condition and which features need particular inspection attention.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Investment casting is included in the specified route. Identify which features remain as cast and which require finishing so the casting requirements and final assembly dimensions can be reviewed together.

Quotation Information

Provide a dimensioned part drawing showing the assembly interfaces, required material and the surfaces that determine fit. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
