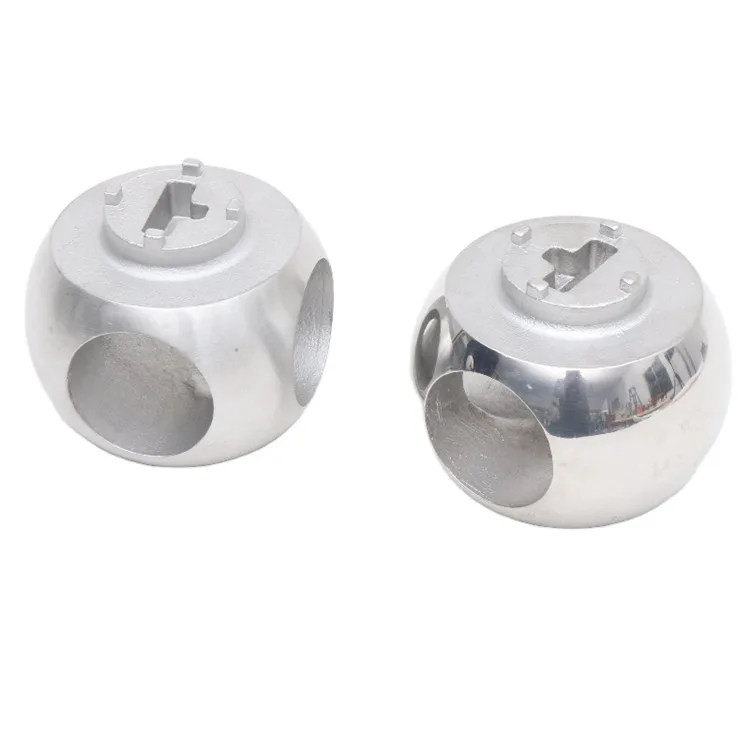

Three-Way Automotive Pump Ball Valve Component

A component for a valve assembly, with the specific internal or external interface defined by the part drawing. This three-way automotive pump ball valve component is produced to the specified part drawing. The manufacturing specification includes precision machining.

Technical Overview

• Part: Three-Way Automotive Pump Ball Valve Component
• Processing: Precision Machined

Three-Way Automotive Pump Ball Valve Component Design and Assembly

• Port configuration: state the passage arrangement and identify each connection in the valve drawing.
• Ball and stem interfaces: define the mating geometry of the components included in the order.
• Assembly scope: distinguish the individual metal part from seals, fasteners and a complete assembled valve.

Material and Manufacturing Requirements

The material grade is to be defined with the order drawing. Identify the intended equipment and service environment so that the material requirement can be agreed before the manufacturing specification is finalized.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Identify the valve type and the component's position in the assembly. Specify connection, sealing and fit requirements relevant to that position. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
