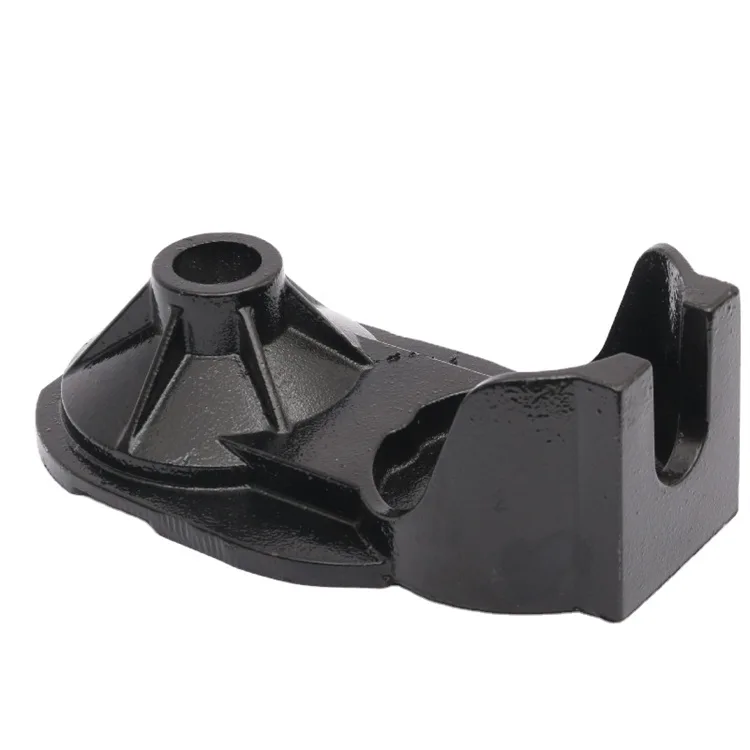

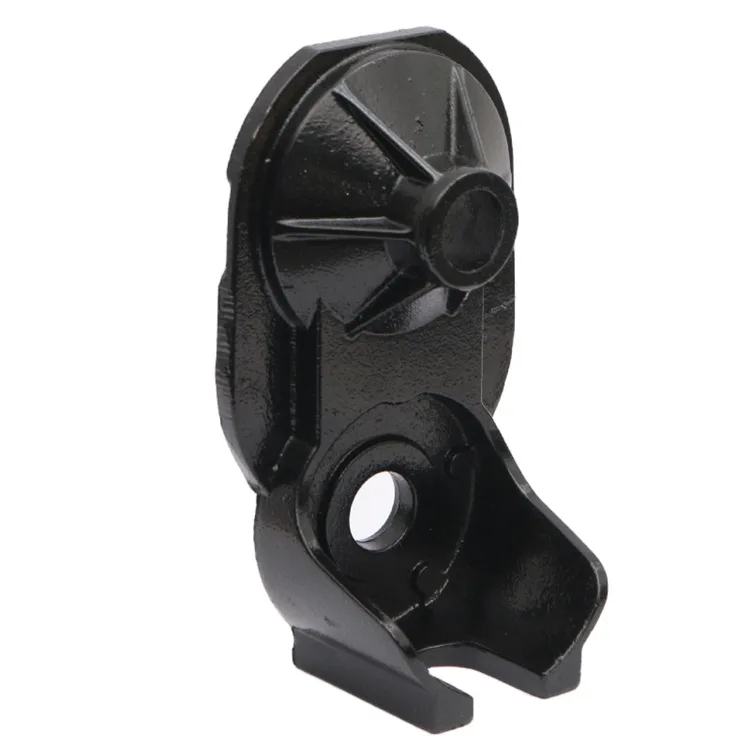

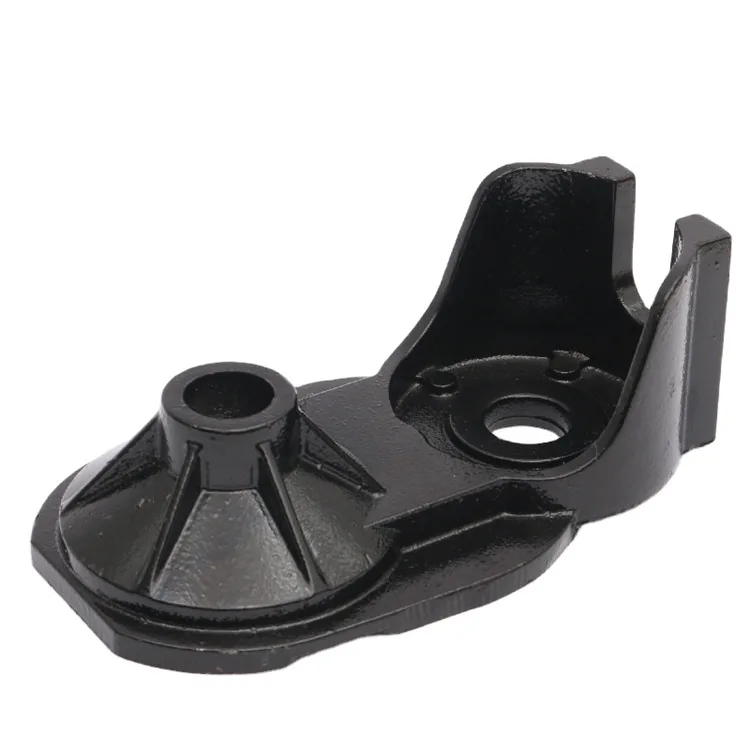

Sand-Cast Gray Iron Forklift Component

This forklift component is intended to match the interfaces defined by the equipment assembly drawing. This forklift component is specified in Gray Iron. The manufacturing specification includes sand casting and precision machining.

Technical Overview

• Part: Forklift Component
• Material: Gray Iron
• Processing: Precision Machined, Sand-Cast

Forklift Component Design and Assembly

• Part geometry: provide a dimensioned drawing showing the complete outline and any functional internal features.
• Assembly interfaces: identify the mating parts, installation datums and dimensions that control fit.
• Order definition: specify the material, required surface condition and which features need particular inspection attention.

Material and Manufacturing Requirements

The specified material is gray iron. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Sand casting is specified. Provide the finished-part drawing with the required machining areas and identify any surfaces or internal passages that need additional inspection requirements.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Provide a dimensioned part drawing showing the assembly interfaces, required material and the surfaces that determine fit. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
