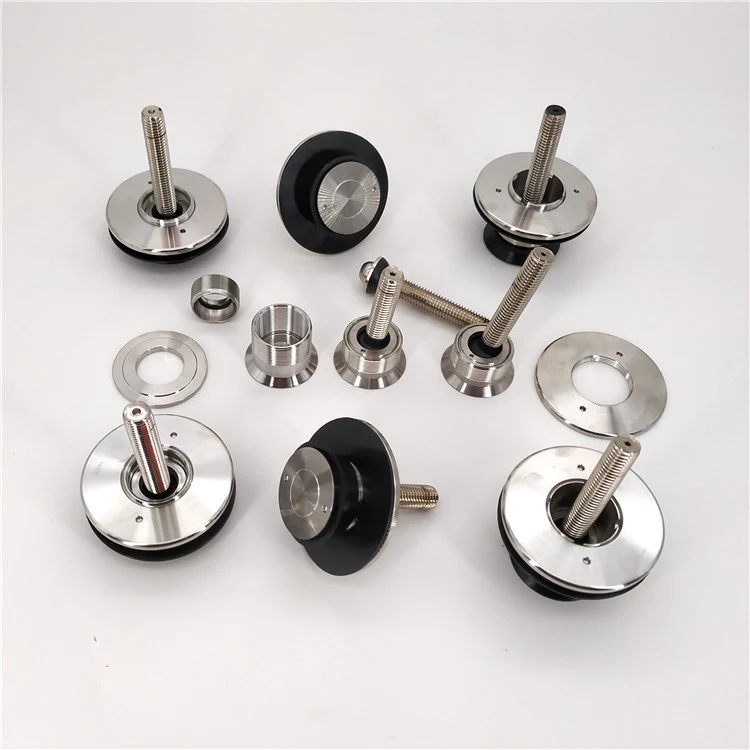

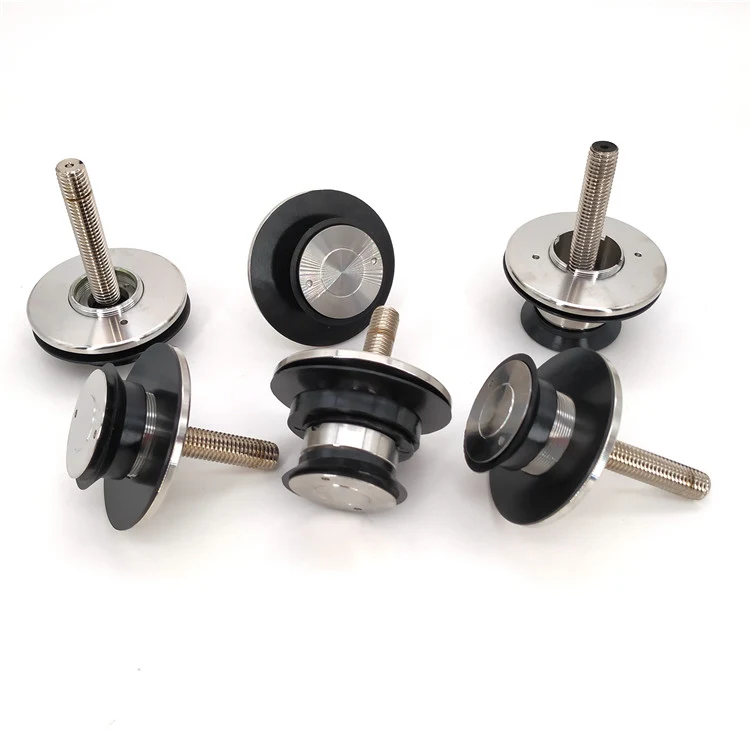

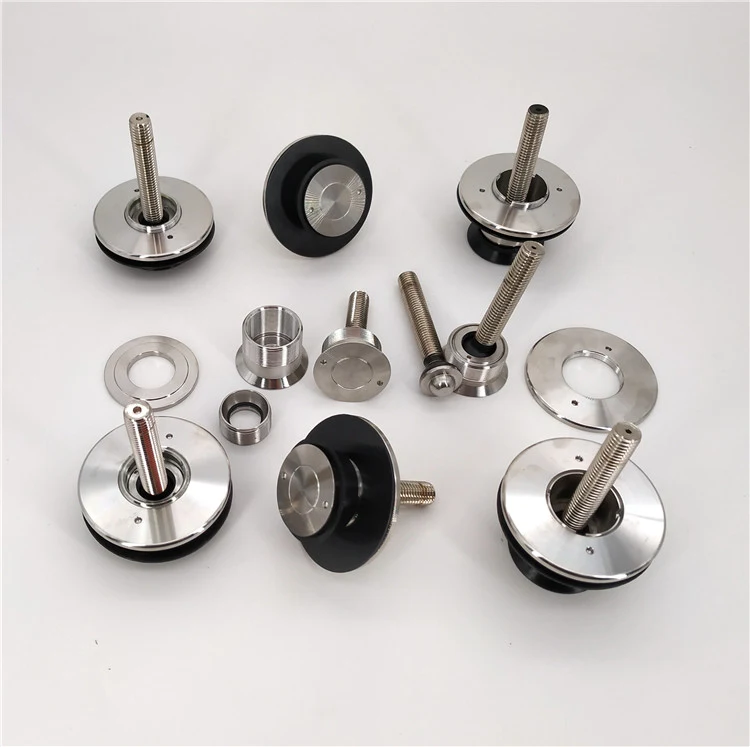

Precision Machined Stainless Steel Glass Clamp

A clamp item for the glass mounting arrangement defined by the installation design. This glass clamp is specified in Stainless Steel. The manufacturing specification includes precision machining.

Technical Overview

• Part: Glass Clamp
• Material: Stainless Steel
• Processing: Precision Machined

Glass Clamp Design and Assembly

• Glass interface: state the glass thickness and any pad or gasket arrangement used with the clamp.
• Mounting geometry: show fastening positions and the connection to the supporting structure.
• Assembly clearance: define the opening, contact profile and space needed for installation.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Specify glass thickness, clamp opening, fastening pattern and any gasket interfaces. Confirm the required installation geometry. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
