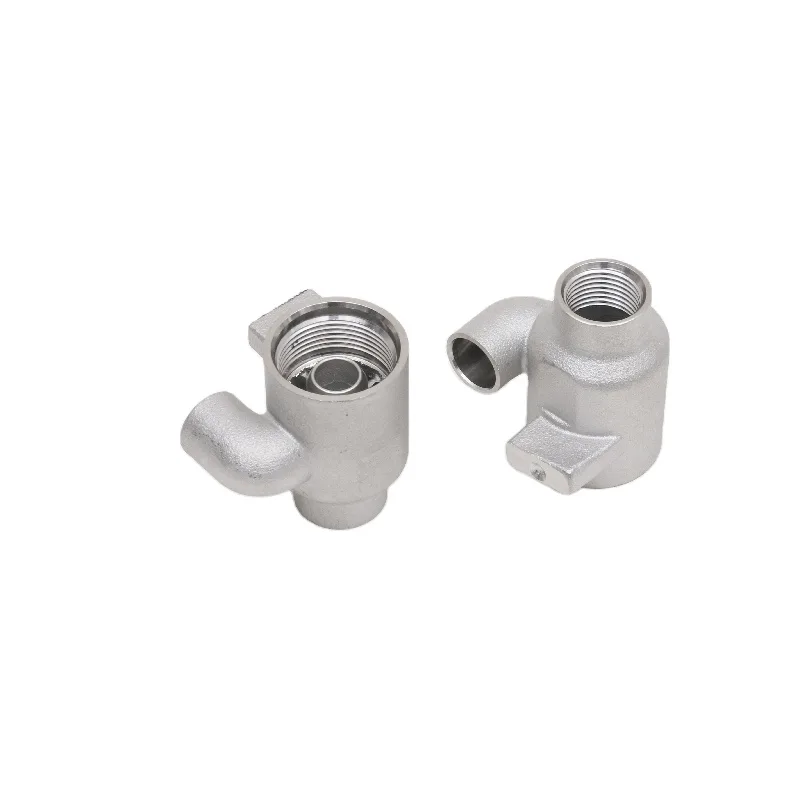

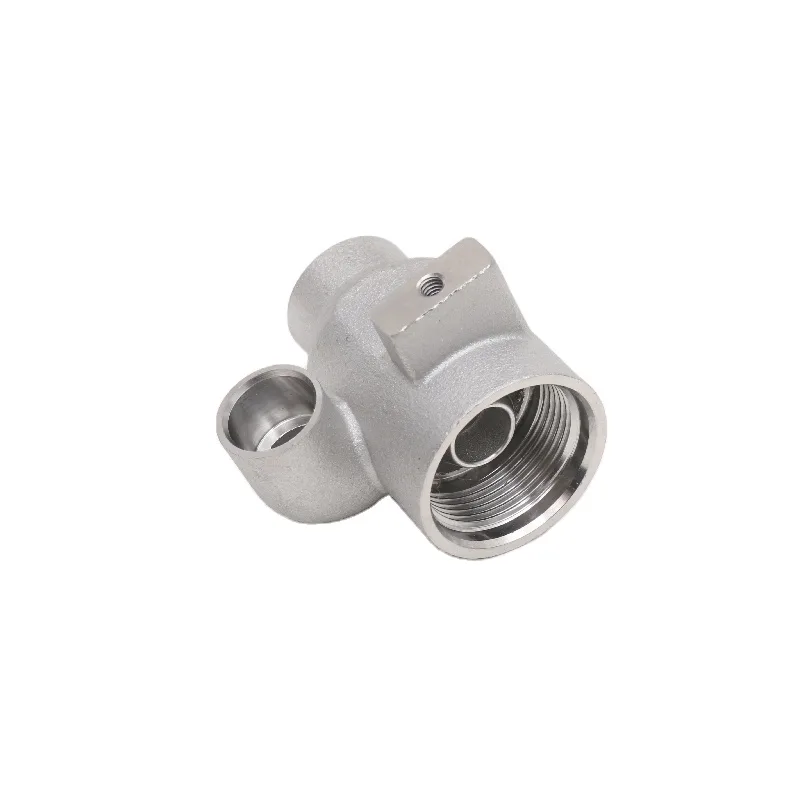

Forged Carbon Steel Pipe Connector

A connector item for joining the components specified in the assembly drawing. This pipe connector is specified in Carbon Steel. The manufacturing specification includes forging.

Technical Overview

• Part: Pipe Connector
• Material: Carbon Steel
• Processing: Forged

Pipe Connector Design and Assembly

• Two-sided interface: provide the dimensions of each mating end and identify the connected components.
• Location and orientation: show the reference features used to position the connector.
• Connection requirements: specify thread, sealing or retention details applicable to the selected design.

Material and Manufacturing Requirements

The specified material is carbon steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Forging is included in the specification. Identify the finished-part geometry and distinguish surfaces requiring later machining from those to be accepted in the forged condition.

Quotation Information

Provide the geometry at both ends, locating features and required assembly fit. State the connection standard where relevant. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
