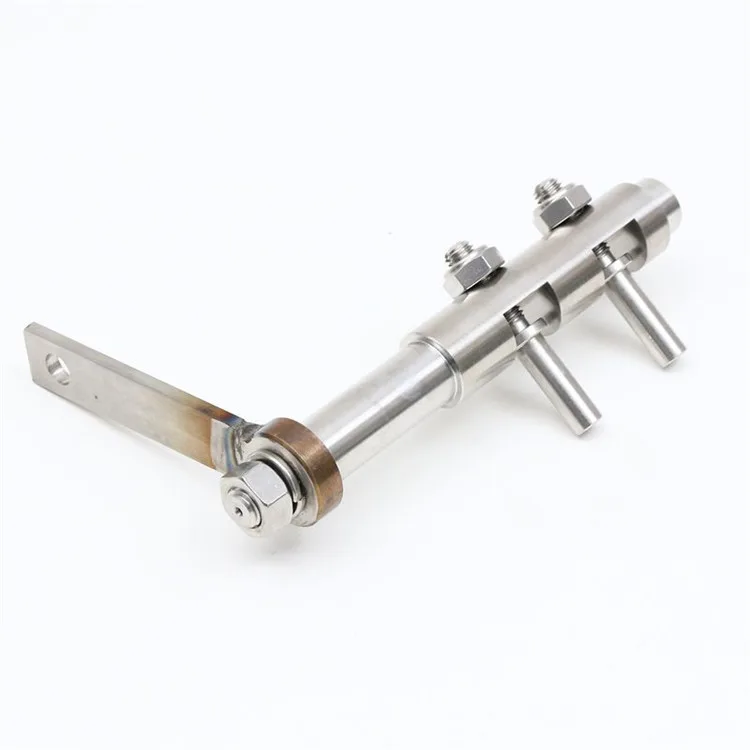

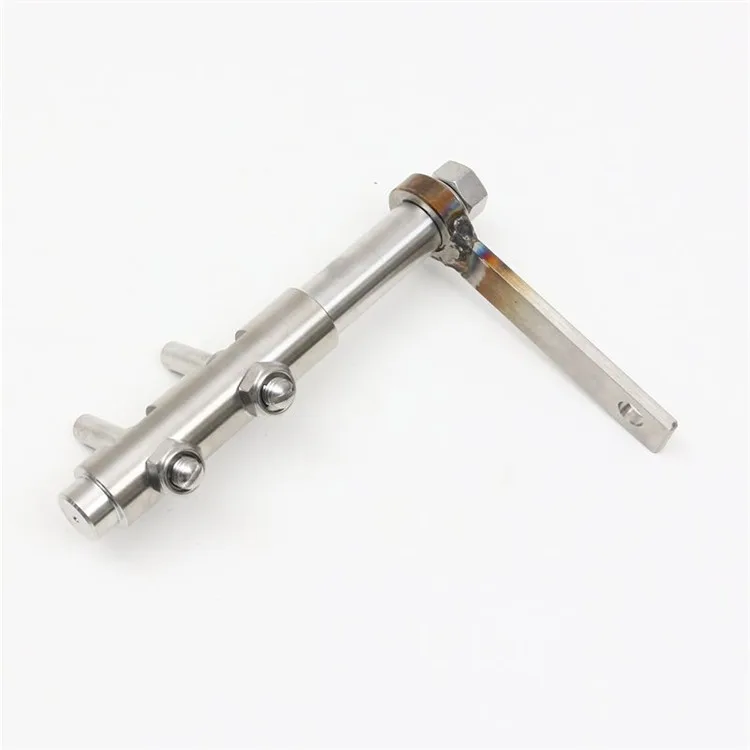

Welded Stainless Steel Connecting Rod

A connecting rod item for the linkage used with this component. This connecting rod is specified in Stainless Steel. The manufacturing specification includes precision machining and welding.

Technical Overview

• Part: Connecting Rod
• Material: Stainless Steel
• Processing: Precision Machined, Welded

Connecting Rod Design and Assembly

• Center distance: define the relationship between the two connection points.
• End interfaces: show bores, threads or other joint features required by the linkage.
• Movement envelope: identify adjoining parts and the clearance needed through the specified travel.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

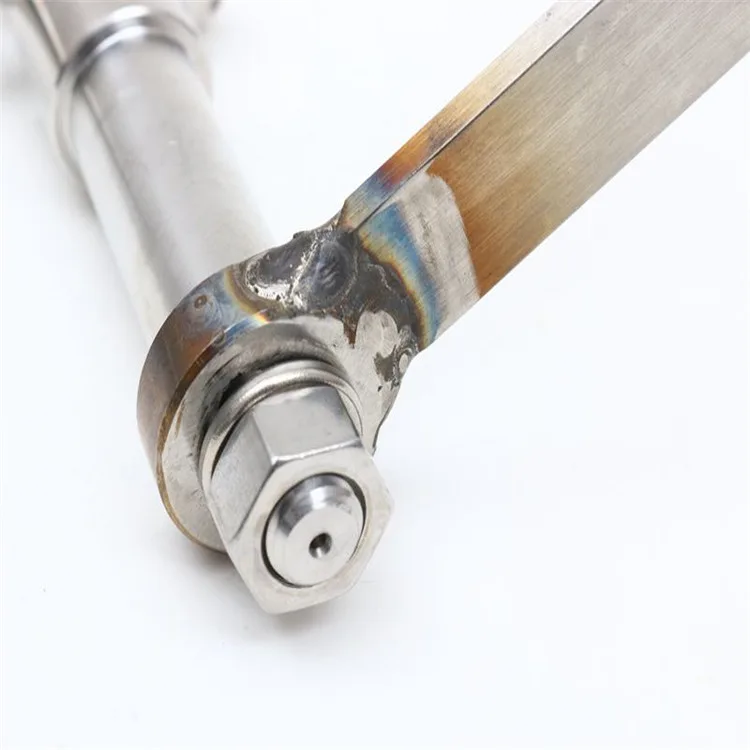

Welding is included in the specification. Define joint locations, assembly references and any machining needed after joining, with inspection requirements stated for the actual welded part.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Specify the distance between connection centers, end-hole geometry and required movement clearances. Identify any bushings or fasteners supplied separately. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
