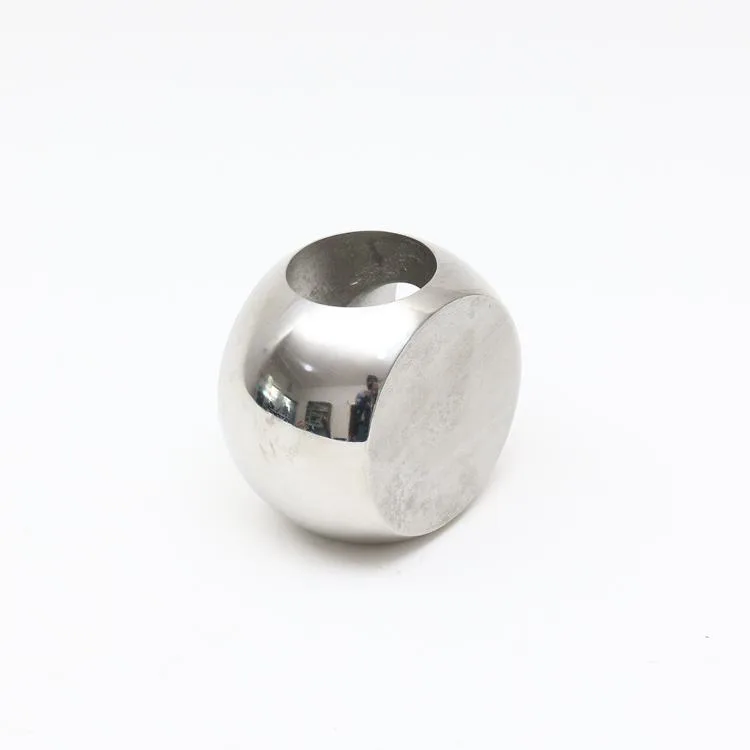

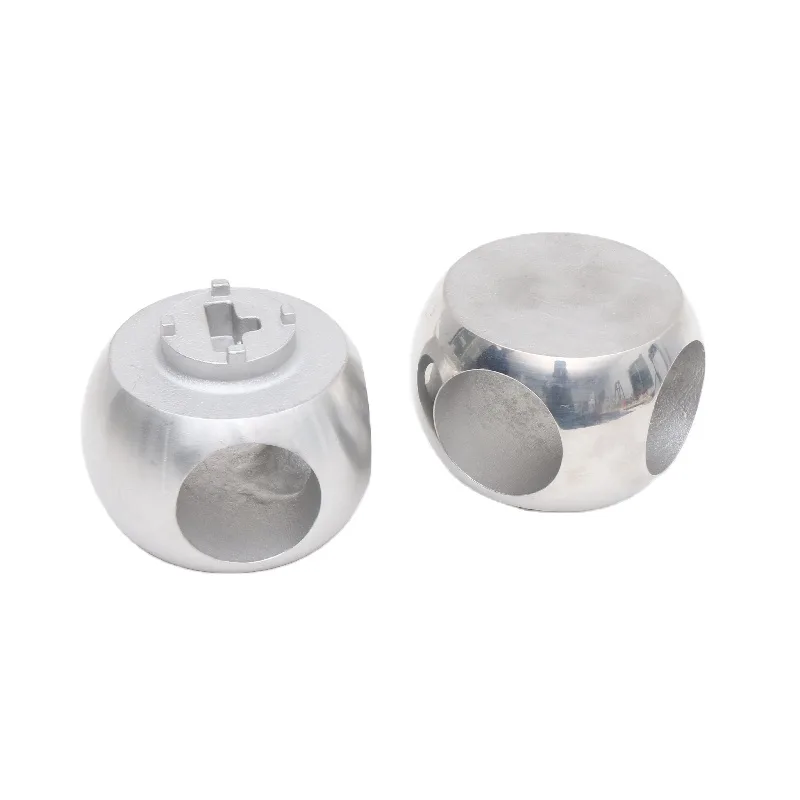

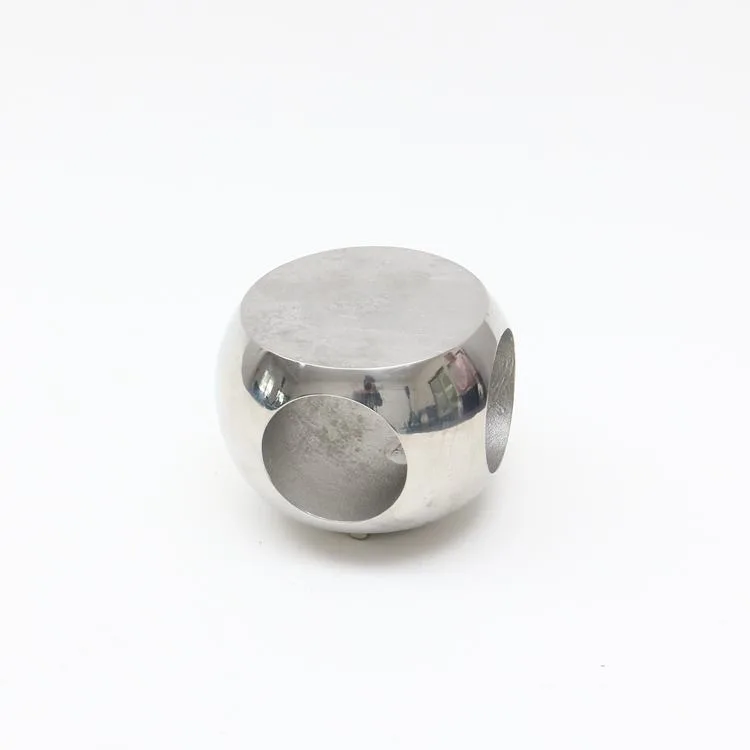

Investment-Cast Stainless Steel Automotive Pump Ball Valve

A ball valve item for the pump assembly specified for this component. This automotive pump ball valve is specified in Stainless Steel. The manufacturing specification includes investment casting and precision machining.

Technical Overview

• Part: Automotive Pump Ball Valve
• Material: Stainless Steel
• Processing: Precision Machined, Investment-Cast

Automotive Pump Ball Valve Design and Assembly

• Port configuration: state the passage arrangement and identify each connection in the valve drawing.
• Ball and stem interfaces: define the mating geometry of the components included in the order.
• Assembly scope: distinguish the individual metal part from seals, fasteners and a complete assembled valve.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Investment casting is included in the specified route. Identify which features remain as cast and which require finishing so the casting requirements and final assembly dimensions can be reviewed together.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

State the port arrangement, ball passage, stem interface and mating connections. Identify whether a complete valve or an individual component is required. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
