Description

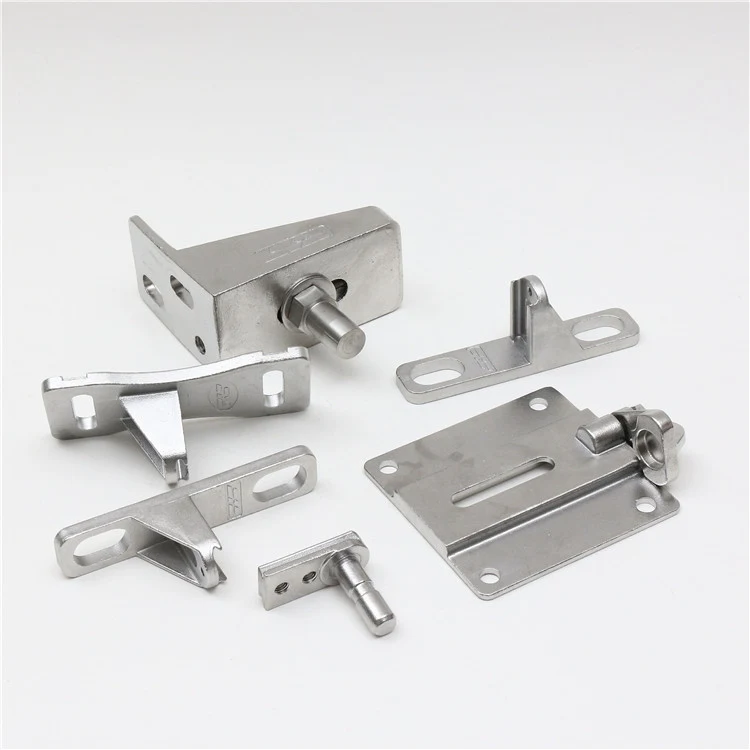

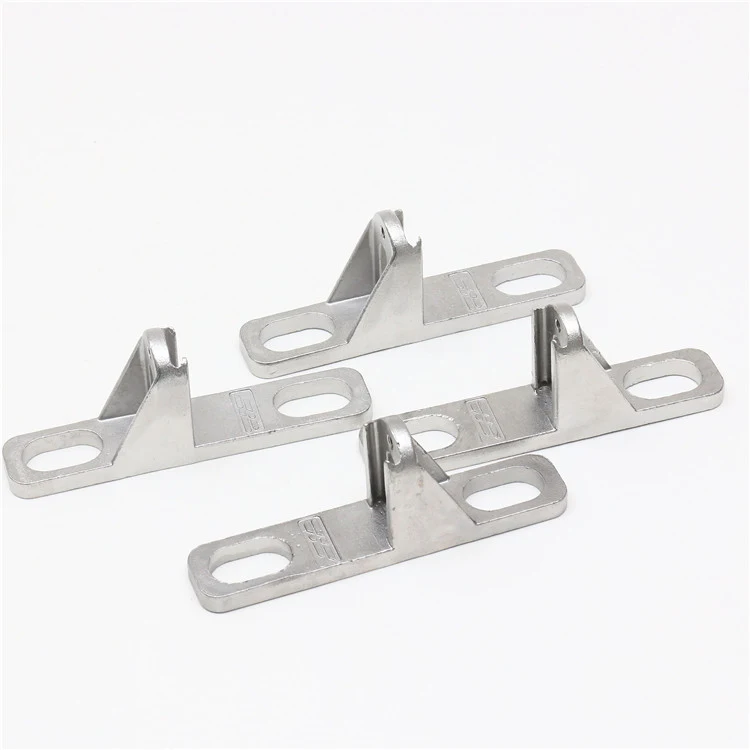

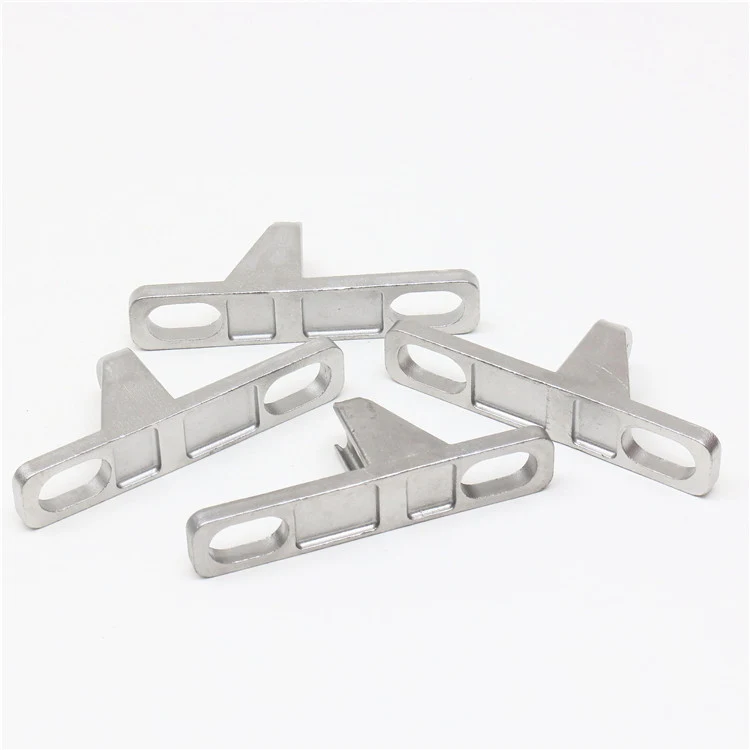

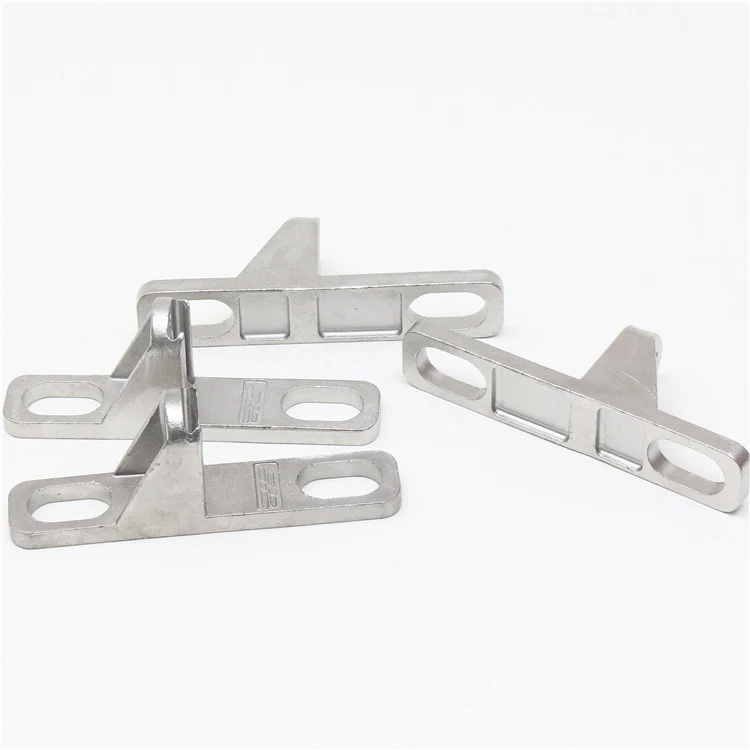

Investment-Cast Stainless Steel Door Lock Component
A part for a door lock mechanism, with its engagement geometry defined by the lock design. This door lock component is specified in Stainless Steel. The manufacturing specification includes investment casting.
Technical Overview
- Part: Door Lock Component
- Material: Stainless Steel
- Processing: Investment-Cast
Door Lock Component Design and Assembly
- Mechanism interface: identify the mating lock assembly and the role of the ordered component.
- Engagement geometry: define the contact profile and the clearance around moving parts.
- Mounting references: show pivot, guide or fastening positions relative to the lock mechanism.
Material and Manufacturing Requirements
The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.
Investment casting is included in the specified route. Identify which features remain as cast and which require finishing so the casting requirements and final assembly dimensions can be reviewed together.
Quotation Information
Specify the lock model or mating mechanism, pivot or mounting locations and the required latch clearances. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
