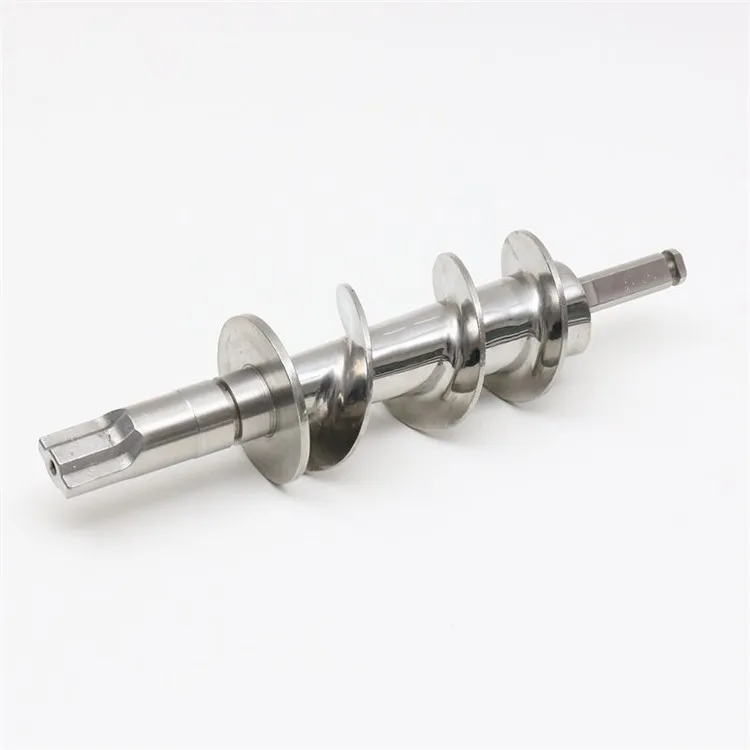

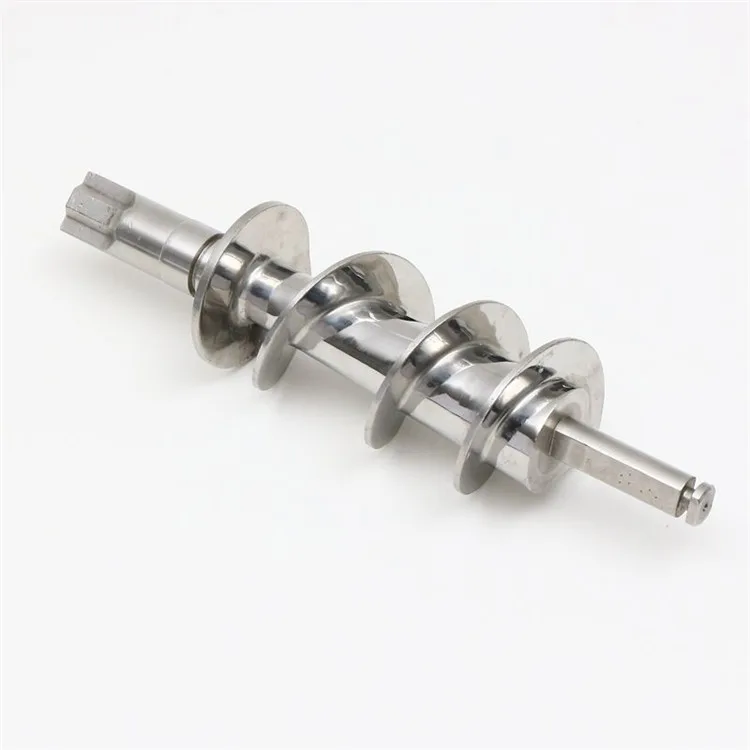

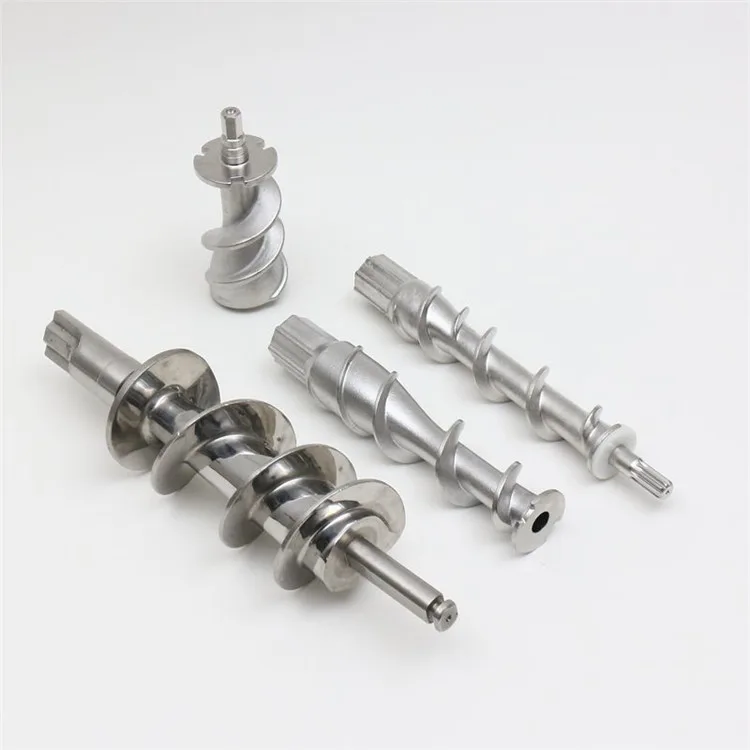

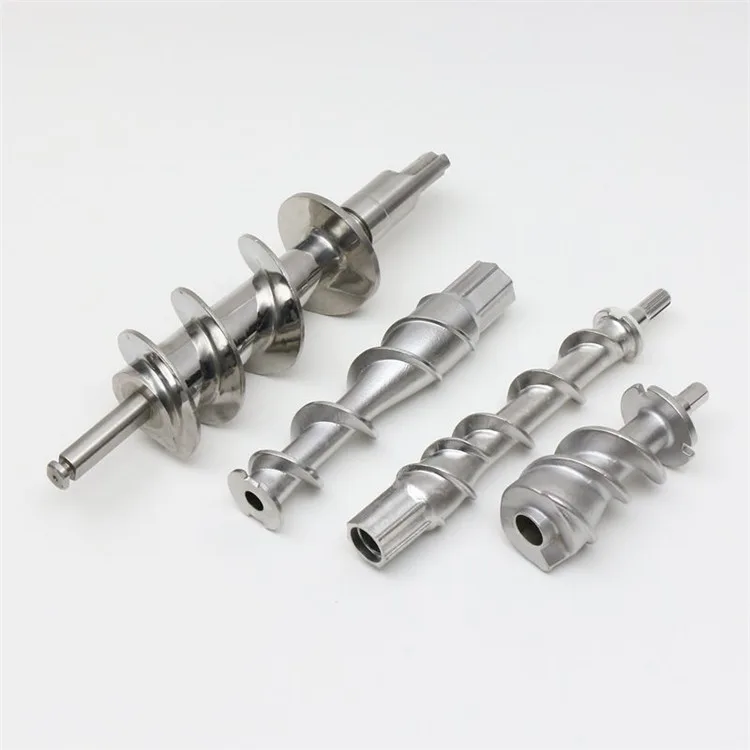

Stainless Steel Food Machinery Mixing Shaft Component

A component for food machinery, with the specific equipment interface defined by the drawing. This food machinery mixing shaft component is specified in Stainless Steel. The manufacturing specification includes precision machining.

Technical Overview

• Part: Food Machinery Mixing Shaft Component
• Material: Stainless Steel
• Processing: Precision Machined

Food Machinery Mixing Shaft Component Design and Assembly

• Equipment position: identify the machine and the exact role of the ordered component.
• Assembly dimensions: provide the mating drawing and the contact or drive interfaces relevant to the part.
• Use conditions: state cleaning and product-contact requirements where applicable to the selected equipment.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Identify the machine and component position. Specify the required material grade, surface condition and any product-contact requirements for that position. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
