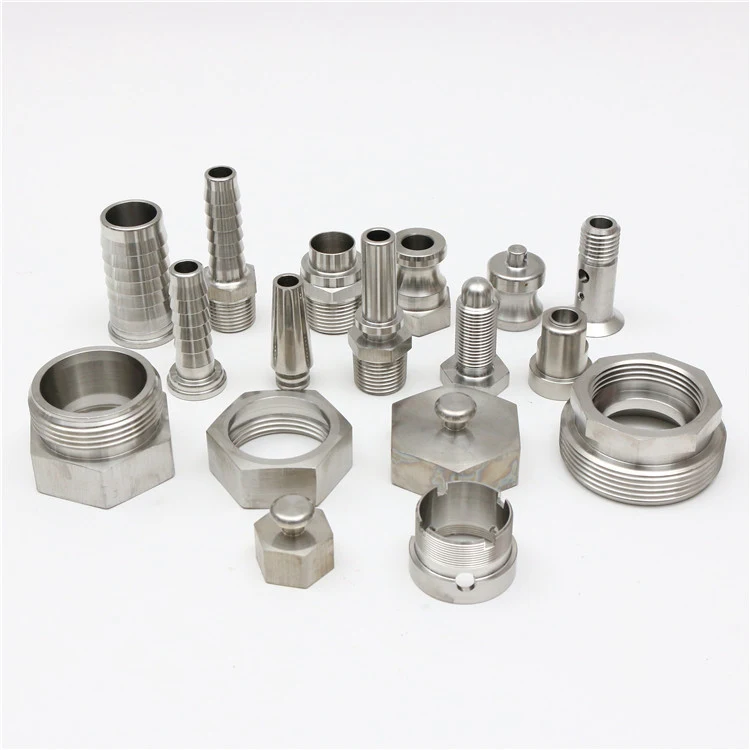

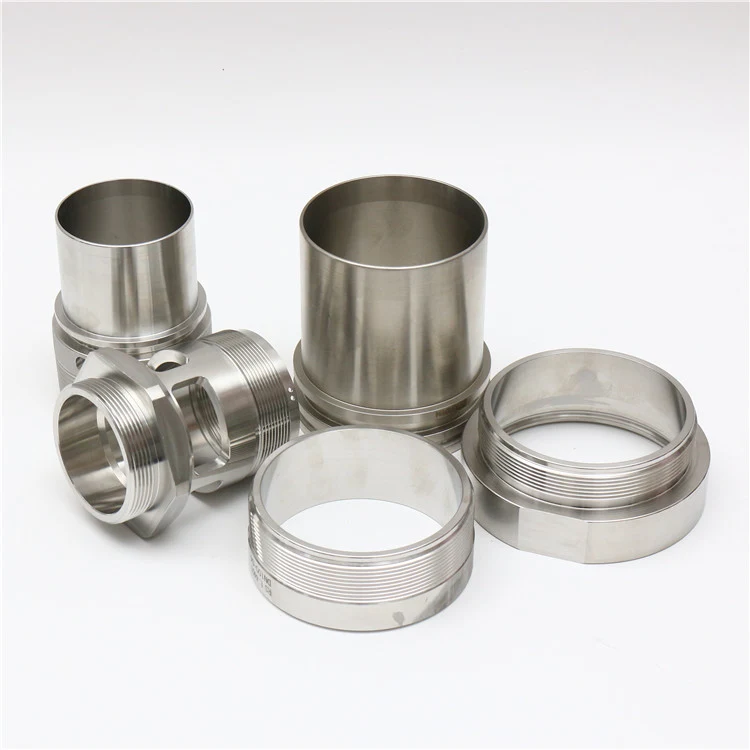

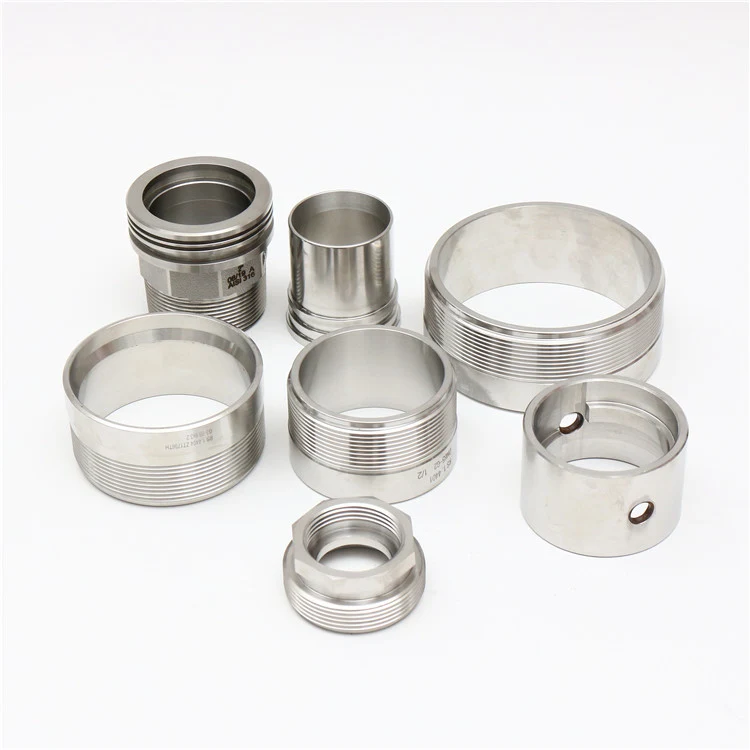

Custom Stainless Steel Pipe Fitting

A pipe fitting for the connection arrangement shown in the order drawing. This pipe fitting is specified in Stainless Steel. The manufacturing specification includes precision machining.

Technical Overview

• Part: Pipe Fitting
• Material: Stainless Steel
• Processing: Precision Machined

Pipe Fitting Design and Assembly

• End connections: identify the thread, tube, weld or other connection types actually required.
• Flow opening: specify bore dimensions and the relationship between the two ends.
• Installation features: define wrenching flats, orientation and the space available for assembly.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Specify end types, nominal dimensions, bore and any wrenching features. Confirm the applicable thread or connection standard. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
