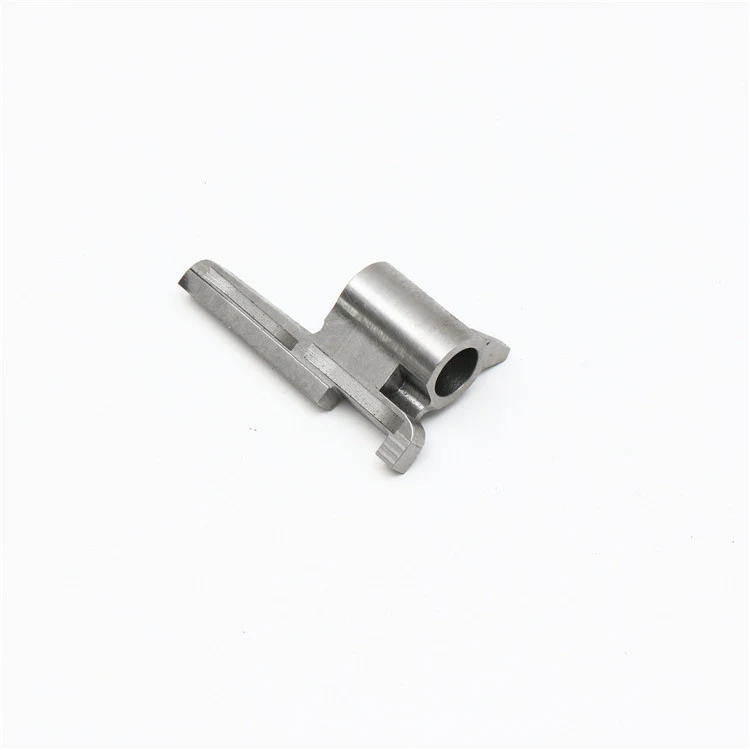

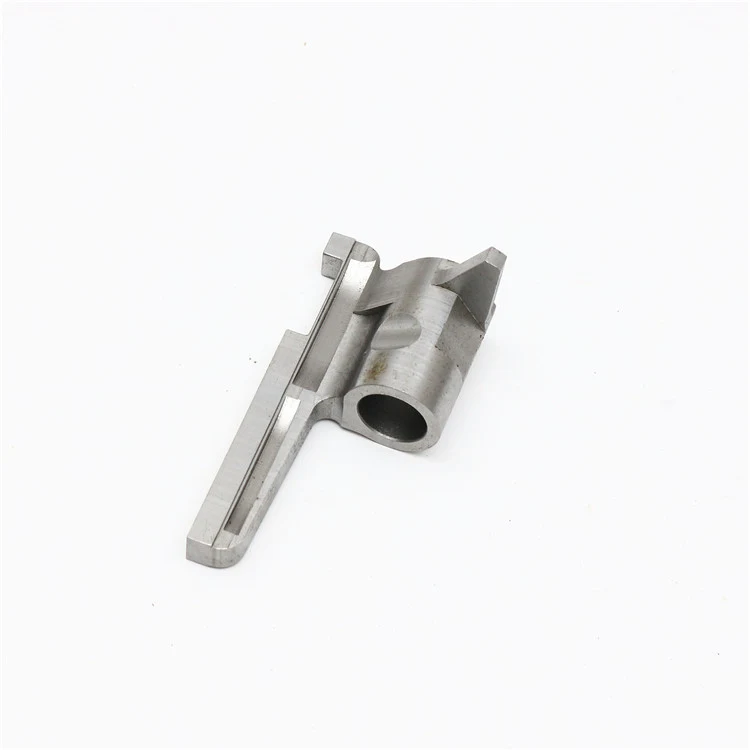

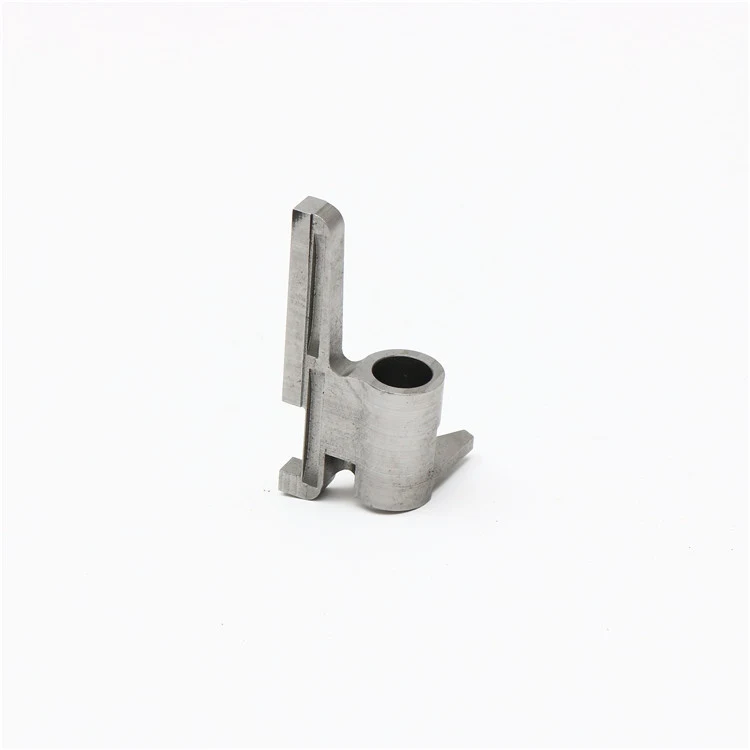

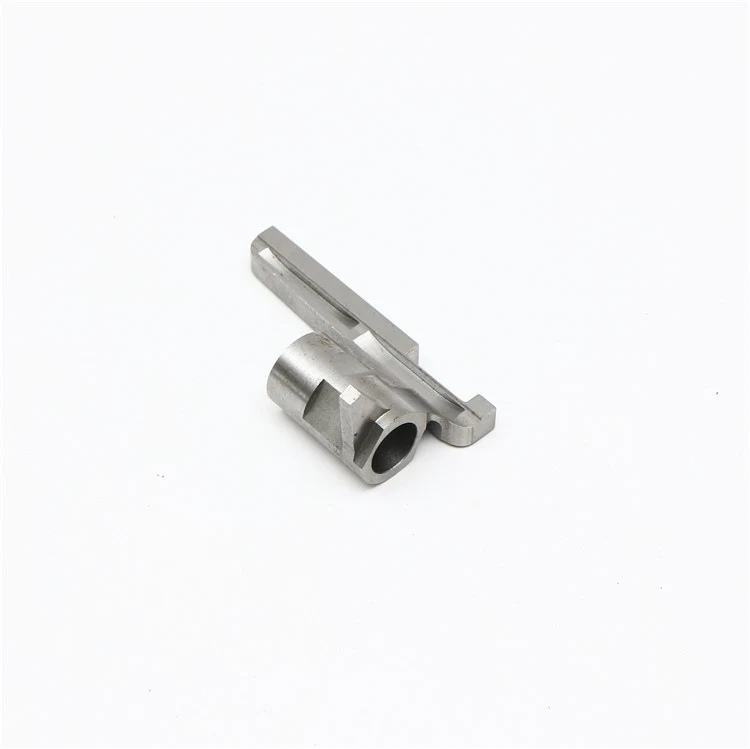

CNC Machined Alloy Steel Support Lever

A lever item for a supporting or actuating linkage. This support lever is specified in Alloy Steel. The manufacturing specification includes CNC machining.

Technical Overview

• Part: Support Lever
• Material: Alloy Steel
• Processing: CNC Machined

Support Lever Design and Assembly

• Pivot geometry: identify the axis, bore and locating features of the lever.
• Connection points: provide arm lengths and the attachment details at each working end.
• Travel clearance: define the installed orientation and clearance to neighboring parts during movement.

Material and Manufacturing Requirements

The specified material is alloy steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

CNC machining is specified for this component. Supply the latest drawing and, where available, the 3D model, with critical fits and reference datums identified rather than relying on the external shape alone.

Quotation Information

Define pivot centers, contact features and attachment geometry. The drawing should show the permitted movement envelope. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
