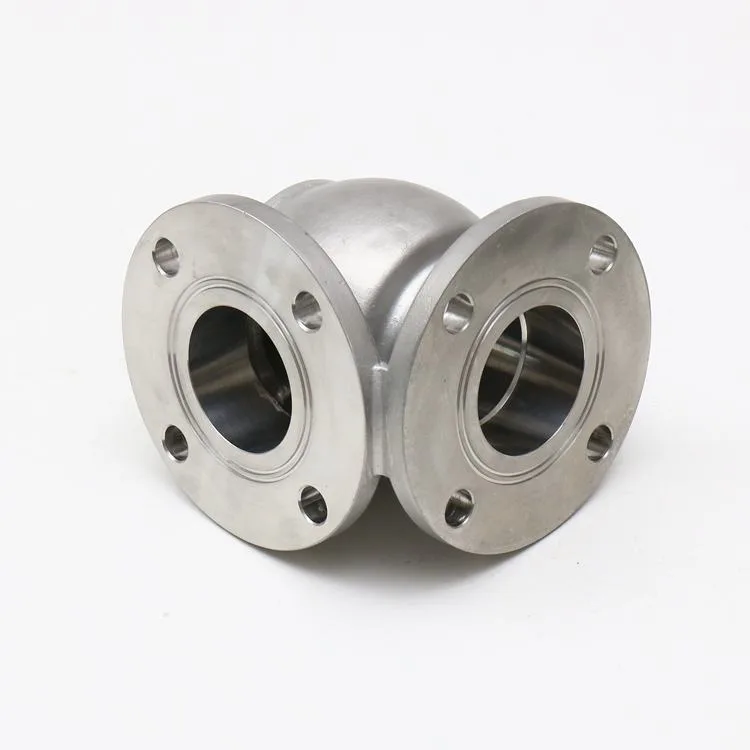

Investment-Cast Stainless Steel Valve Body

The valve body provides the housing interfaces for the valve's internal parts and external connections. This valve body is specified in Stainless Steel. The manufacturing specification includes investment casting.

Technical Overview

• Part: Valve Body
• Material: Stainless Steel
• Processing: Investment-Cast

Valve Body Design and Assembly

• Passage layout: show the inlet, outlet and internal geometry relevant to this body.
• Internal interfaces: identify seat locations and the reference surfaces for adjoining valve components.
• External connections: specify fastening, thread or flange geometry together with installation orientation.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Investment casting is included in the specified route. Identify which features remain as cast and which require finishing so the casting requirements and final assembly dimensions can be reviewed together.

Quotation Information

Specify passage geometry, seat locations, connection dimensions and machining datums. Confirm the applicable service conditions. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
