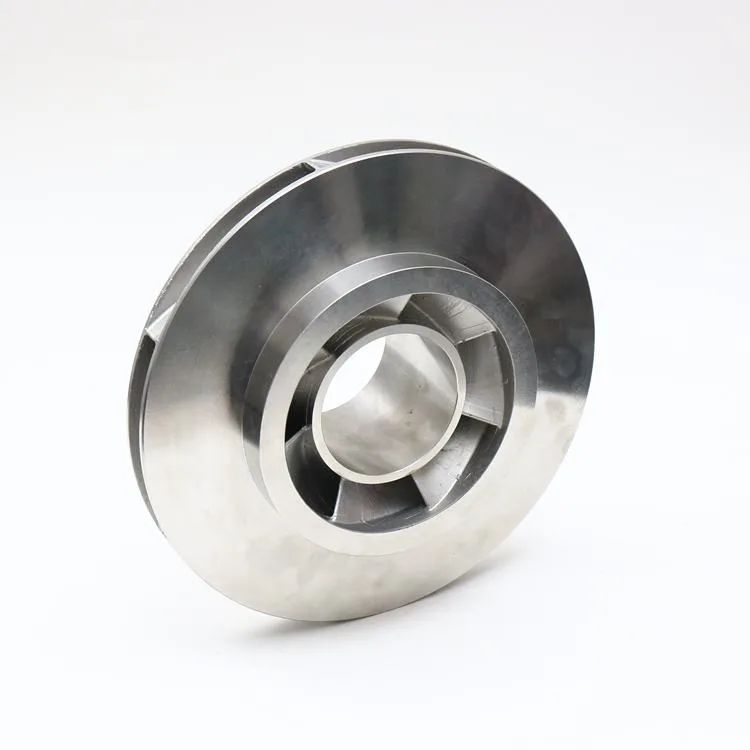

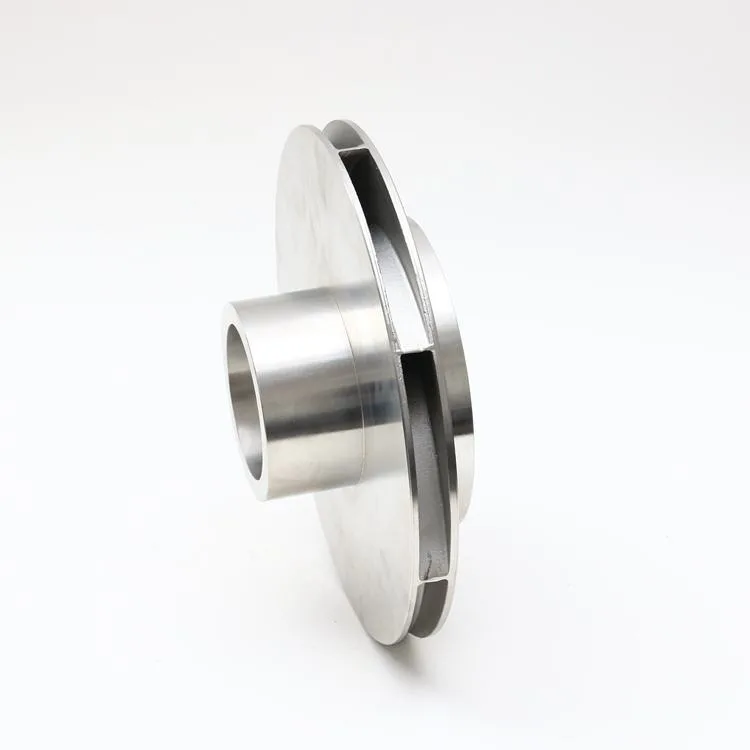

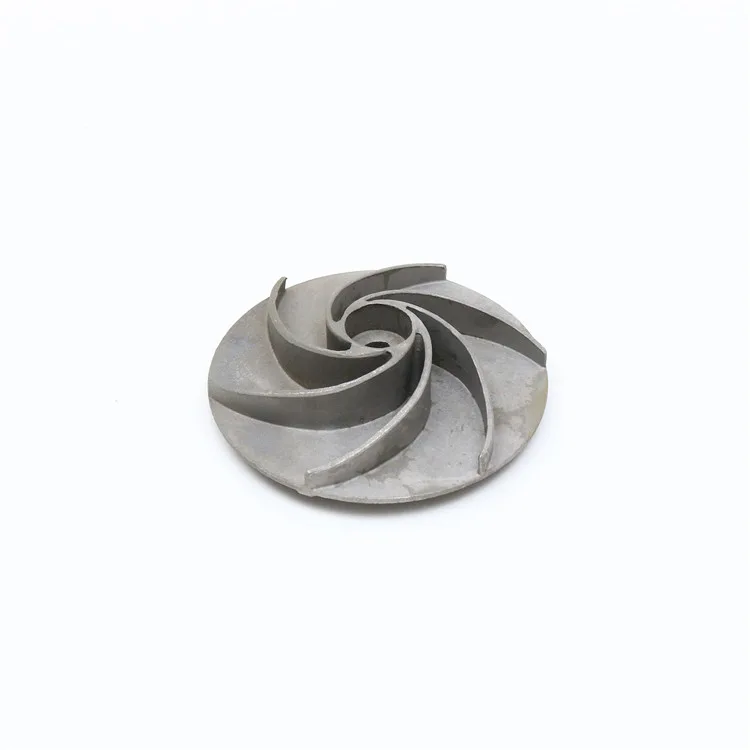

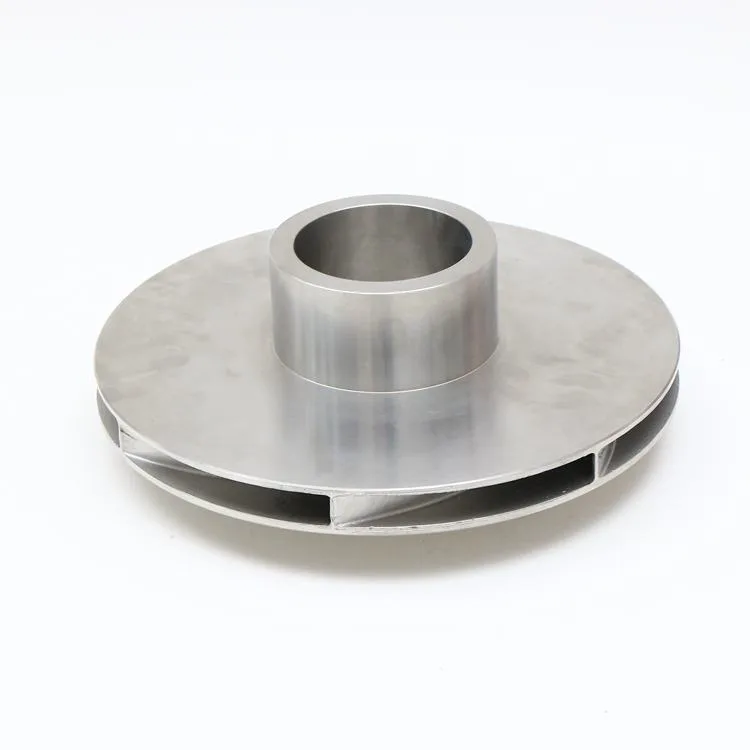

Stainless Steel Pump Impeller

An impeller item for a rotating pump assembly. This pump impeller is specified in Stainless Steel.

Technical Overview

• Part: Pump Impeller
• Material: Stainless Steel

Pump Impeller Design and Assembly

• Vane and rim geometry: show the flow-related profile, outside diameter and direction of rotation.
• Hub connection: define the shaft bore, keyway or other attachment features present in the design.
• Assembly controls: specify clearances, reference datums and any balance requirement separately.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

The manufacturing route should be agreed against the finished geometry and order quantity. Identify the surfaces and mating features that govern acceptance rather than specifying processes that are not required by the design.

Quotation Information

Provide the vane geometry, outside diameter, hub bore and shaft attachment. Balance requirements and rotation direction should be stated for the final part. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
