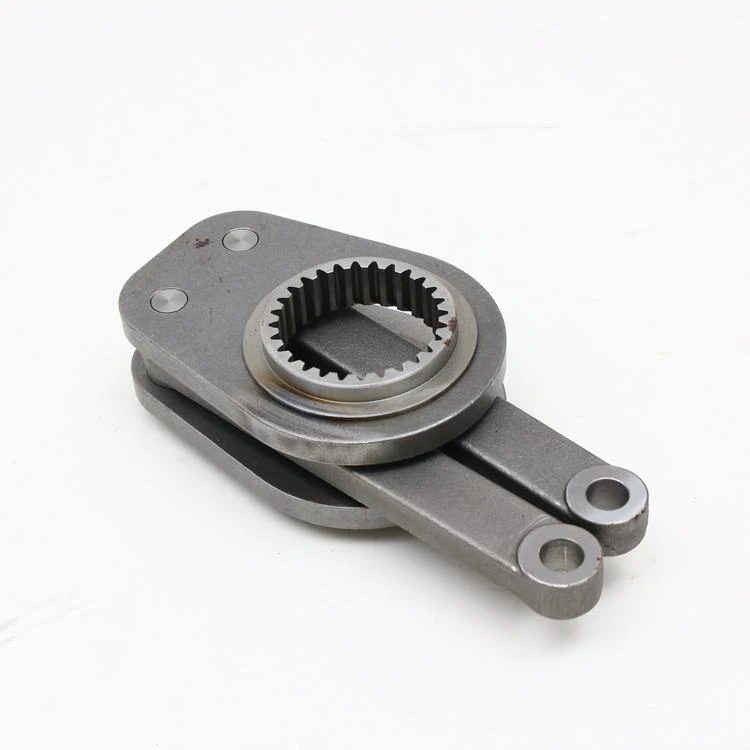

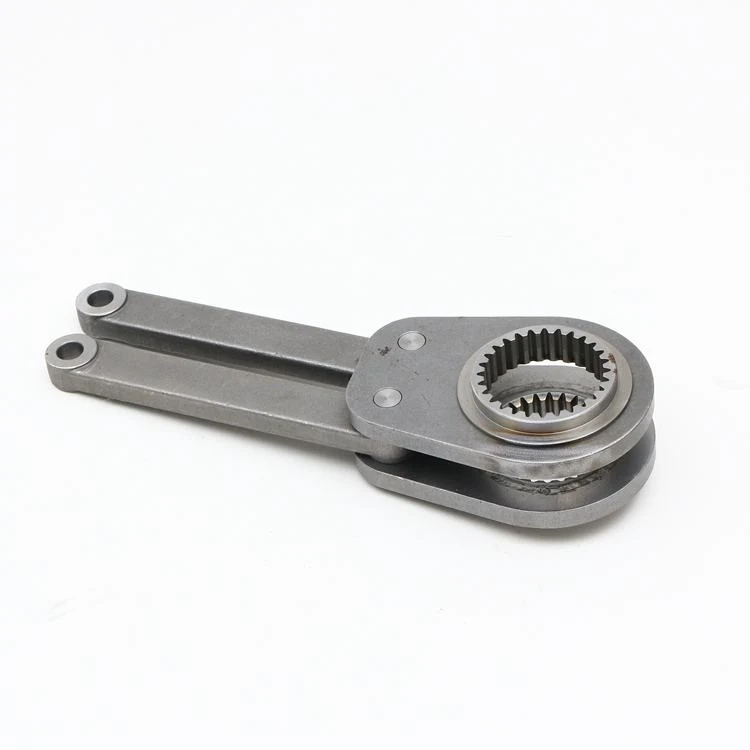

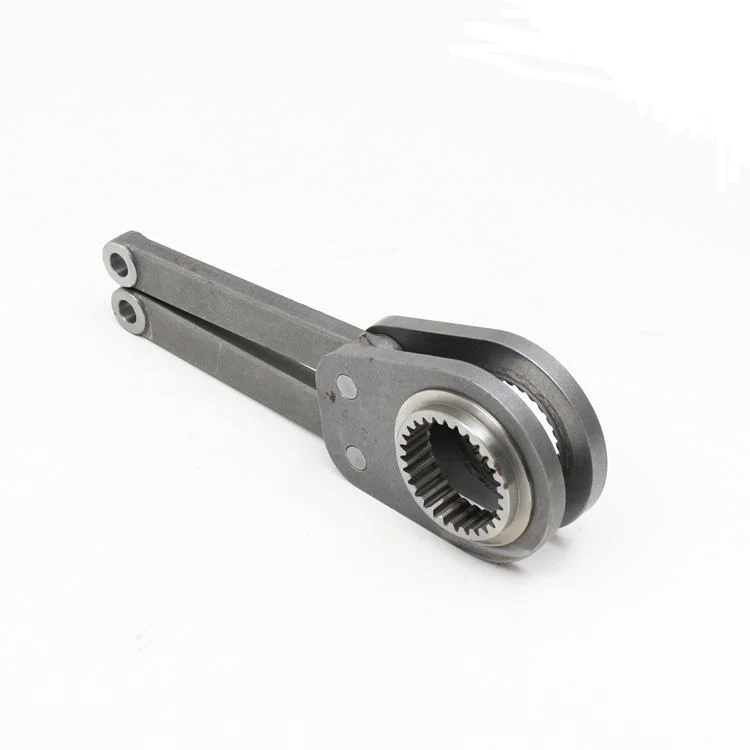

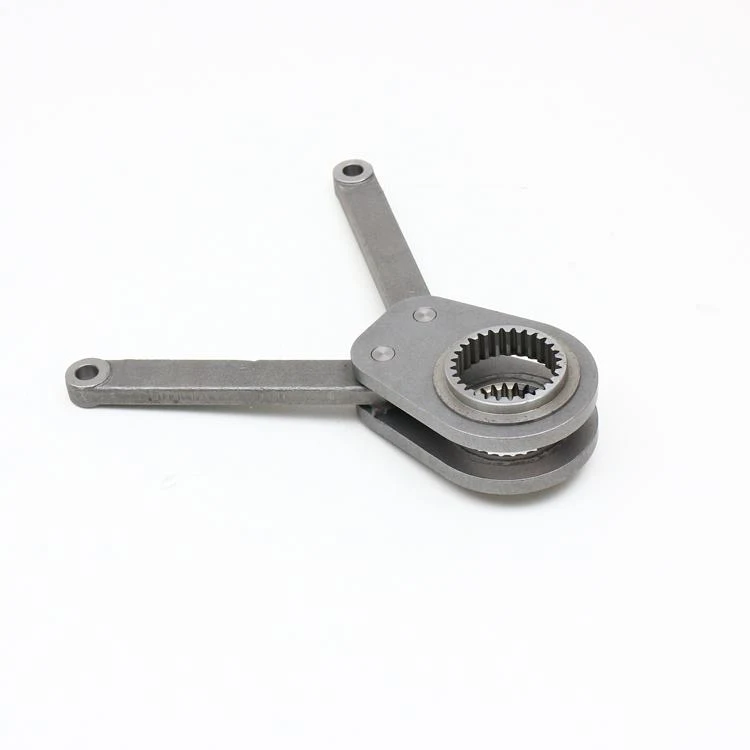

High-Pressure Crankshaft

A crankshaft item for the linkage or equipment specified for this component. This high-pressure crankshaft is defined by the equipment drawing and its mating interfaces.

Technical Overview

• Part: High-Pressure Crankshaft

High-Pressure Crankshaft Design and Assembly

• Crank geometry: define throw, offset and the relationship between the shaft and crank features.
• Connection details: provide journal diameters and the attachment dimensions of the adjoining linkage.
• Reference alignment: identify the datums and angular positions that need to remain consistent across the part.

Material and Manufacturing Requirements

The material grade is to be defined with the order drawing. Identify the intended equipment and service environment so that the material requirement can be agreed before the manufacturing specification is finalized.

The manufacturing route should be agreed against the finished geometry and order quantity. Identify the surfaces and mating features that govern acceptance rather than specifying processes that are not required by the design.

Quotation Information

Show crank throw, journal diameters, angular positions and connection details. Define the drawing datums used to control these relationships. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
