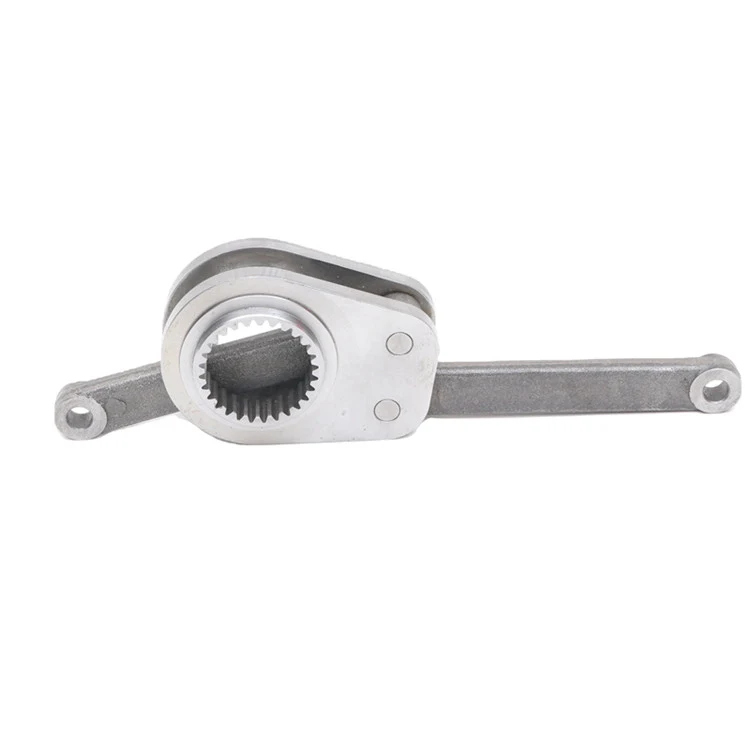

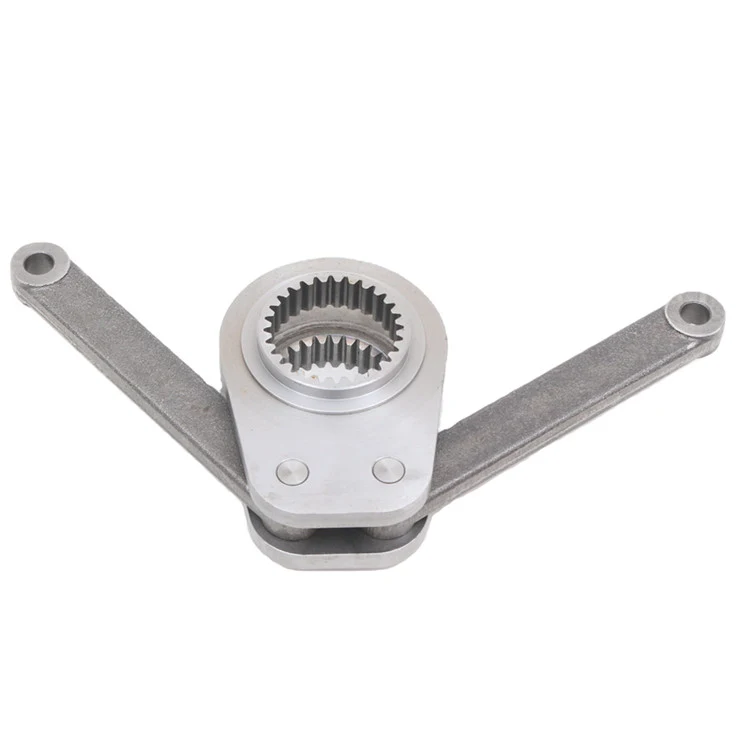

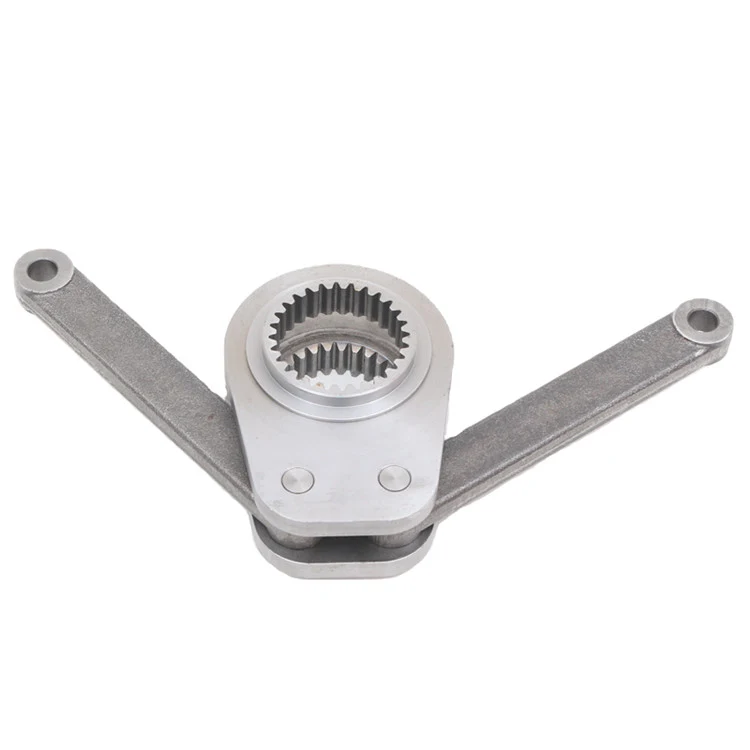

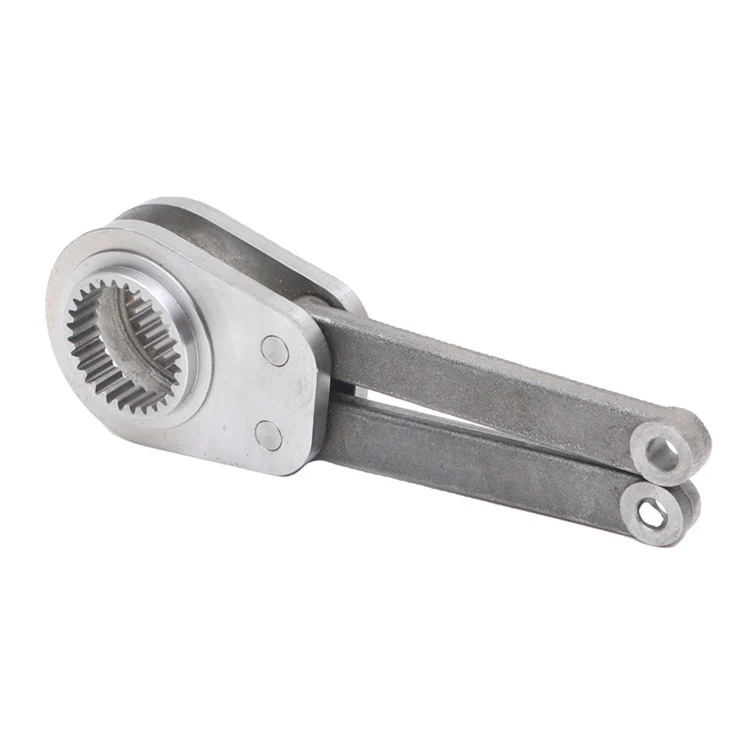

Precision Machined High-Pressure Crankshaft

A crankshaft item for the linkage or equipment specified for this component. This high-pressure crankshaft is produced to the specified part drawing. The manufacturing specification includes precision machining.

Technical Overview

• Part: High-Pressure Crankshaft
• Processing: Precision Machined

High-Pressure Crankshaft Design and Assembly

• Crank geometry: define throw, offset and the relationship between the shaft and crank features.
• Connection details: provide journal diameters and the attachment dimensions of the adjoining linkage.
• Reference alignment: identify the datums and angular positions that need to remain consistent across the part.

Material and Manufacturing Requirements

The material grade is to be defined with the order drawing. Identify the intended equipment and service environment so that the material requirement can be agreed before the manufacturing specification is finalized.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Show crank throw, journal diameters, angular positions and connection details. Define the drawing datums used to control these relationships. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
