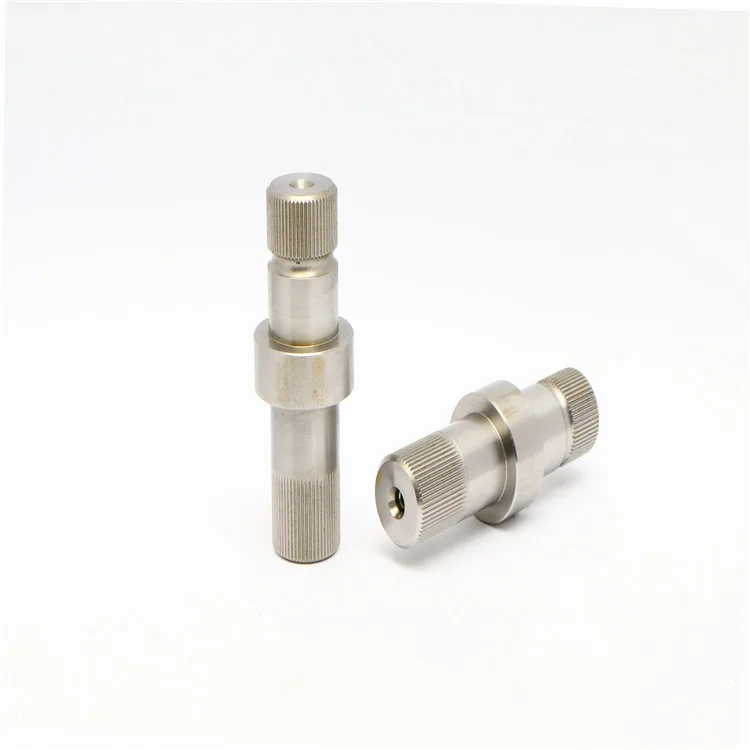

Custom CNC Machined Splined Shaft

A shaft with a spline interface specified for this component. This splined shaft is produced to the specified part drawing. The manufacturing specification includes CNC machining.

Technical Overview

• Part: Splined Shaft
• Processing: CNC Machined

Splined Shaft Design and Assembly

• Spline definition: state the applicable tooth form, size, tooth count and fit designation.
• Engagement length: show the working spline length and its relationship to shoulders or adjoining features.
• Alignment: identify the reference axis and the mating hub or shaft used for dimensional review.

Material and Manufacturing Requirements

The material grade is to be defined with the order drawing. Identify the intended equipment and service environment so that the material requirement can be agreed before the manufacturing specification is finalized.

CNC machining is specified for this component. Supply the latest drawing and, where available, the 3D model, with critical fits and reference datums identified rather than relying on the external shape alone.

Quotation Information

Specify spline standard, tooth count, major and minor diameters, engagement length and fit with the mating hub. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
