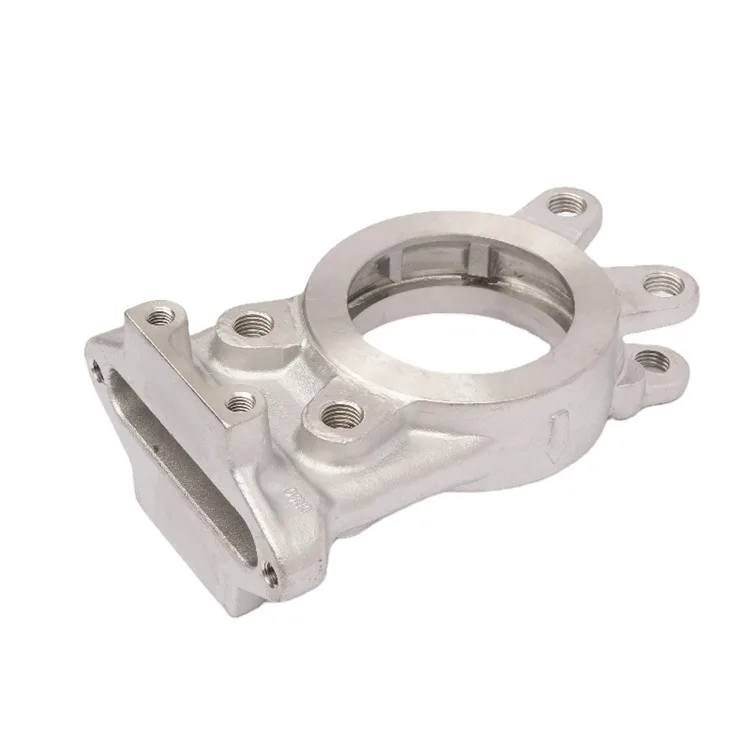

Investment-Cast Stainless Steel Gate Valve

A gate valve part for a shut-off assembly, with the final connection and operating specification defined by the valve drawing. This gate valve is specified in Stainless Steel. The manufacturing specification includes investment casting and precision machining.

Technical Overview

• Part: Gate Valve
• Material: Stainless Steel
• Processing: Precision Machined, Investment-Cast

Gate Valve Design and Assembly

• Valve size and connections: identify nominal size, end type and the adjoining pipeline geometry.
• Gate interface: show the seat, guide and closure-related features included in this particular part.
• Installation arrangement: define stem access, fastening locations and assembly orientation where applicable.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Investment casting is included in the specified route. Identify which features remain as cast and which require finishing so the casting requirements and final assembly dimensions can be reviewed together.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Confirm nominal size, end connections, gate interfaces and the required pressure rating before ordering. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
