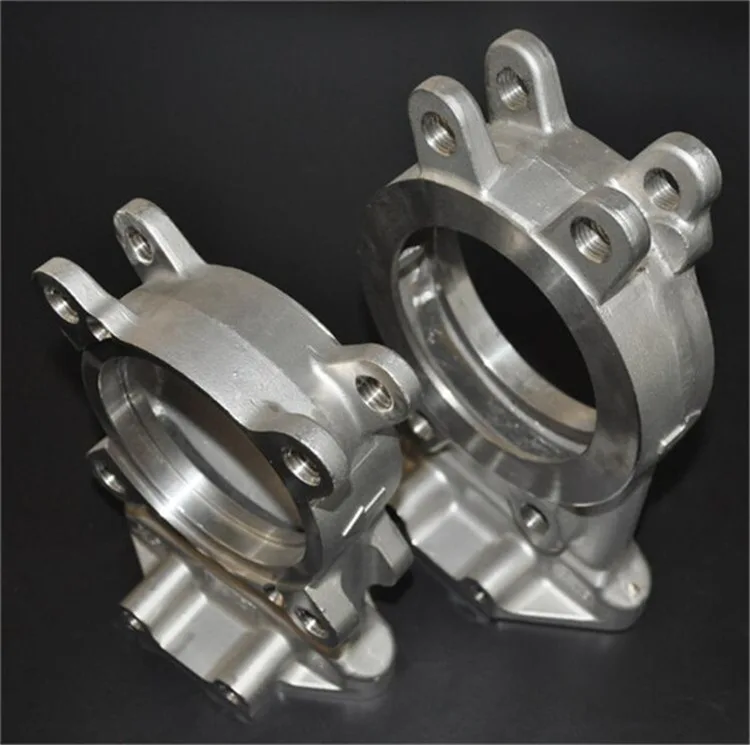

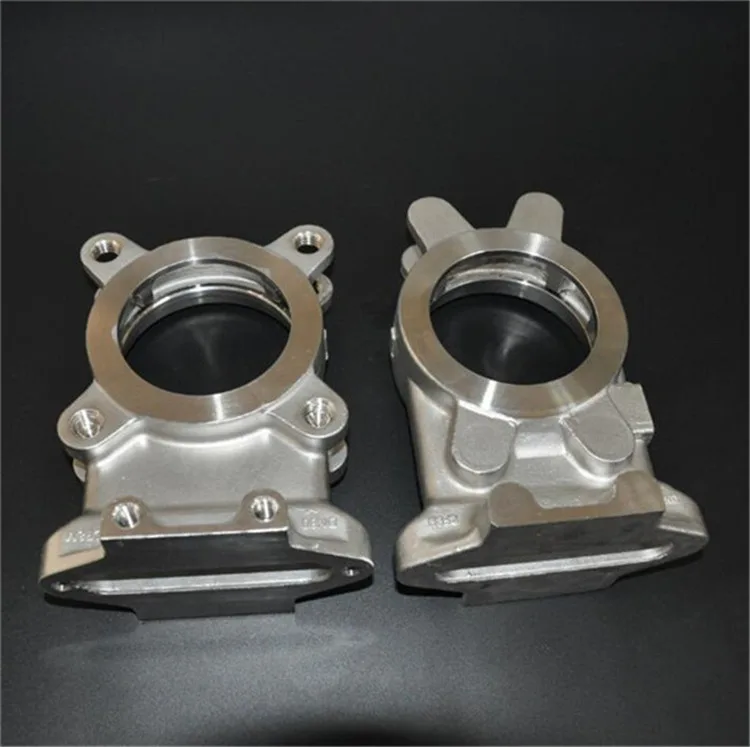

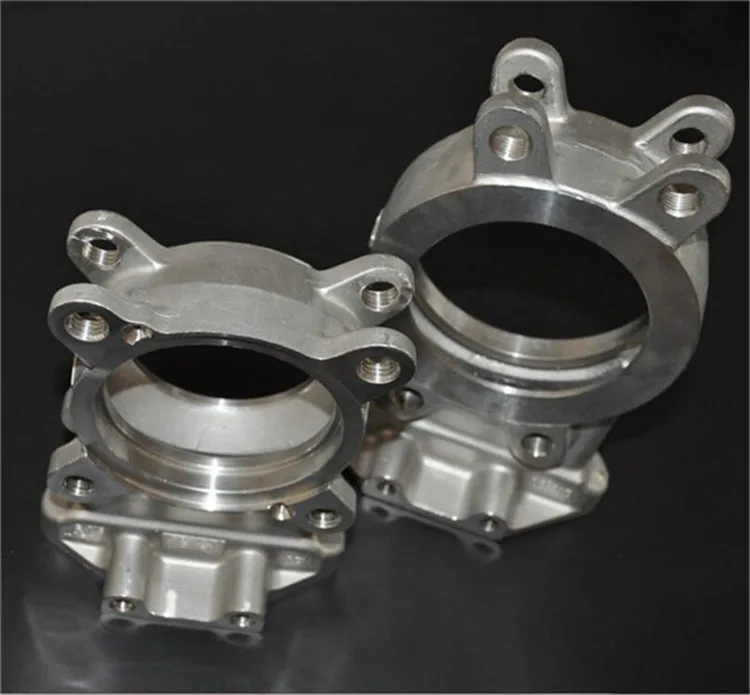

Cast Stainless Steel Pipeline Gate Valve

A gate valve part for a shut-off assembly, with the final connection and operating specification defined by the valve drawing. This pipeline gate valve is specified in Stainless Steel. The manufacturing specification includes casting and precision machining.

Technical Overview

• Part: Pipeline Gate Valve
• Material: Stainless Steel
• Processing: Precision Machined, Cast

Pipeline Gate Valve Design and Assembly

• Valve size and connections: identify nominal size, end type and the adjoining pipeline geometry.
• Gate interface: show the seat, guide and closure-related features included in this particular part.
• Installation arrangement: define stem access, fastening locations and assembly orientation where applicable.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Casting is specified for this part. Clarify the required casting geometry, the surfaces to be machined and any acceptance criteria relevant to the finished component rather than assuming a universal casting specification.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Confirm nominal size, end connections, gate interfaces and the required pressure rating before ordering. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
