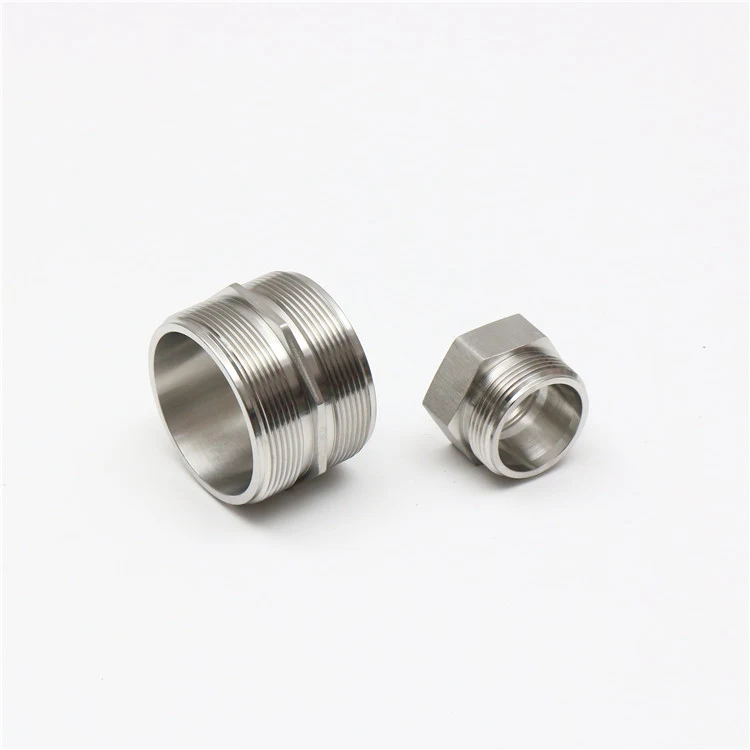

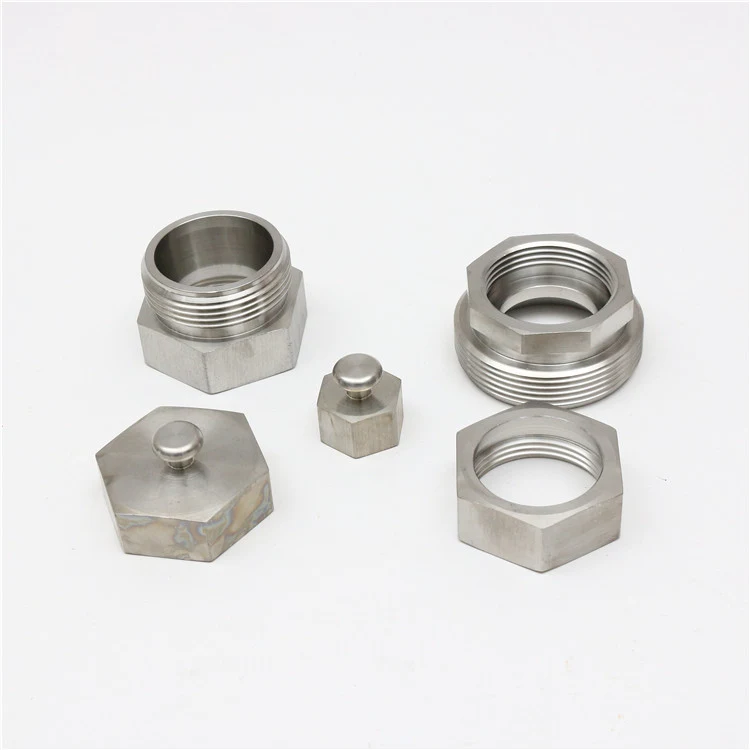

Stainless Steel Nut

A nut item for the specified threaded fastening connection. This nut is specified in Stainless Steel. The manufacturing specification includes precision machining.

Technical Overview

• Part: Nut
• Material: Stainless Steel
• Processing: Precision Machined

Nut Design and Assembly

• Internal thread: provide the thread designation, pitch and required engagement.
• External profile: define overall height and wrenching or locating dimensions.
• Mating fastener: identify the bolt or stud specification and any bearing-face requirements.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Define internal thread, external profile, thickness and mating fastener requirements on the drawing. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
