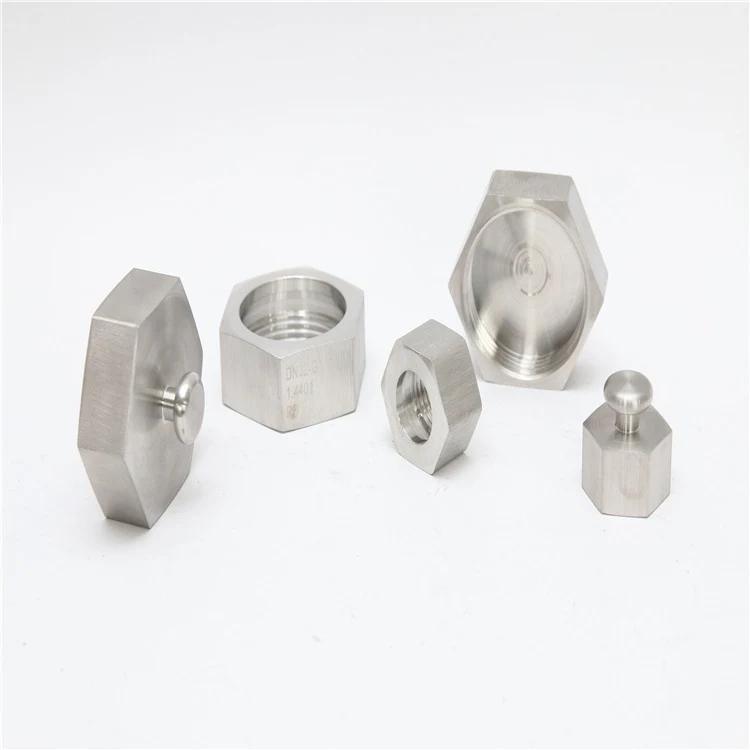

Stainless Steel Hex Nut

A nut item with a hexagonal wrenching profile. This hex nut is specified in Stainless Steel. The manufacturing specification includes precision machining.

Technical Overview

• Part: Hex Nut
• Material: Stainless Steel
• Processing: Precision Machined

Hex Nut Design and Assembly

• Internal thread: provide the thread designation, pitch and required engagement.
• External profile: define overall height and wrenching or locating dimensions.
• Mating fastener: identify the bolt or stud specification and any bearing-face requirements.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Confirm thread designation, nut height, across-flat dimensions and bearing-face requirements. Strength class is an order-specific requirement. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
