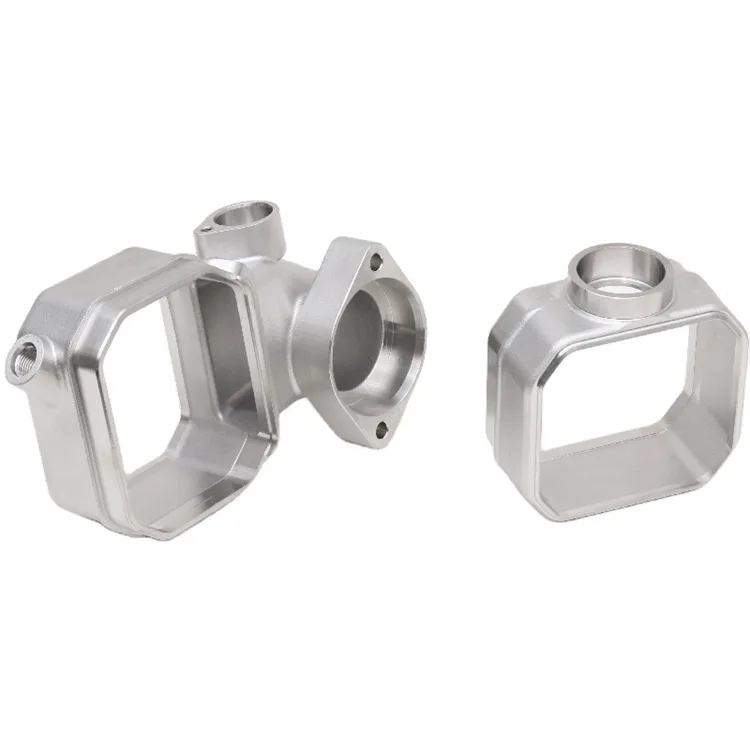

Precision Machined Investment-Cast Stainless Steel Automotive Component

This automotive component is intended to match the interfaces defined by the equipment assembly drawing. This automotive component is specified in Stainless Steel. The manufacturing specification includes investment casting and precision machining.

Technical Overview

• Part: Automotive Component
• Material: Stainless Steel
• Processing: Precision Machined, Investment-Cast

Automotive Component Design and Assembly

• Vehicle application: identify the relevant assembly and component drawing revision.
• Mating interfaces: specify fastening, mounting or engagement features used in that assembly.
• Procurement scope: distinguish the individual metal component from a complete vehicle subsystem.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Investment casting is included in the specified route. Identify which features remain as cast and which require finishing so the casting requirements and final assembly dimensions can be reviewed together.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Provide a dimensioned part drawing showing the assembly interfaces, required material and the surfaces that determine fit. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
