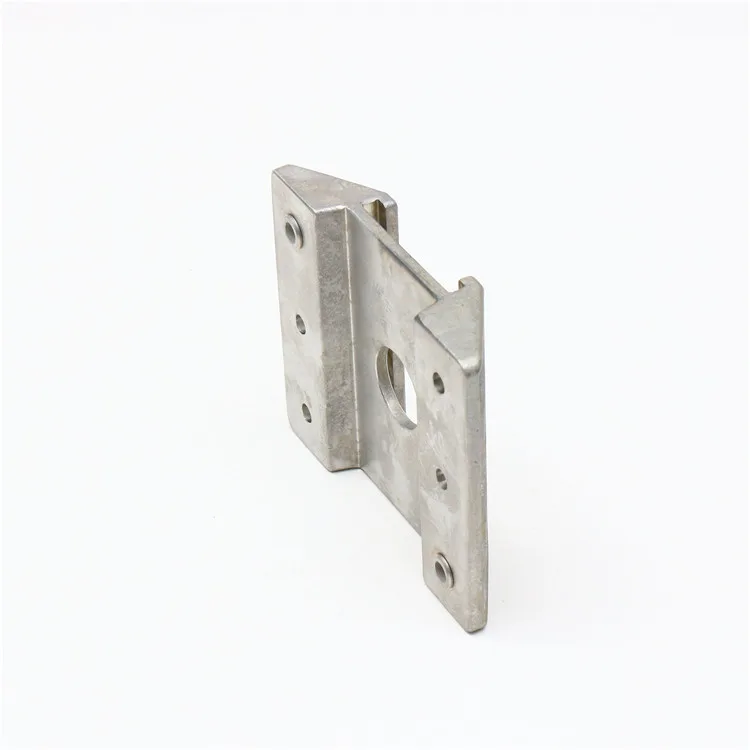

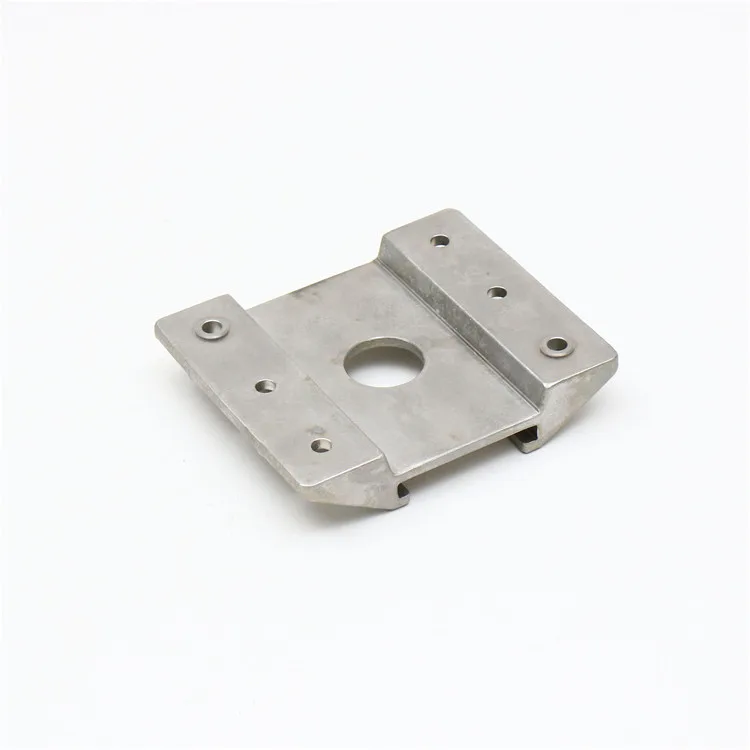

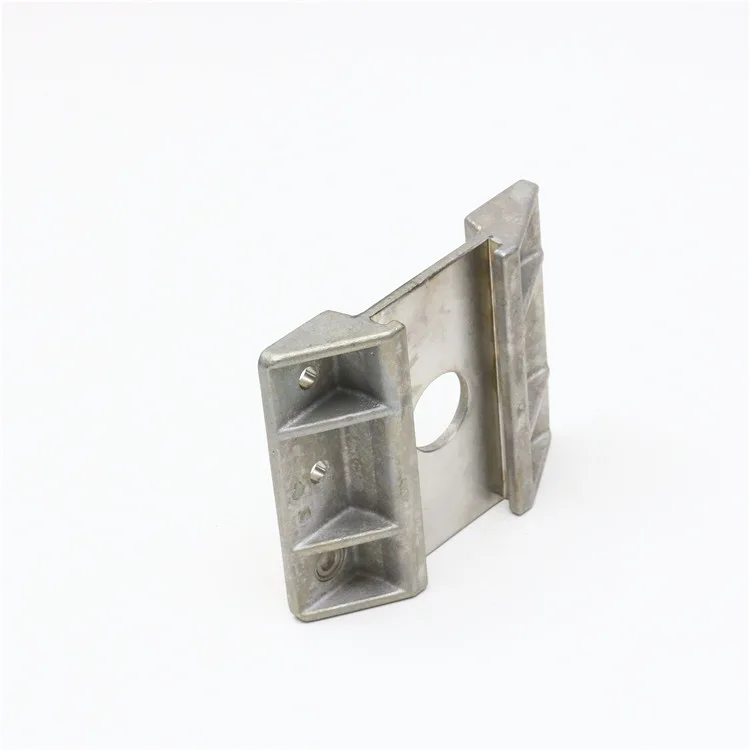

Investment-Cast Stainless Steel Valve Cover

The cover interfaces with the valve body and its fastening arrangement. This valve cover is specified in Stainless Steel. The manufacturing specification includes investment casting.

Technical Overview

• Part: Valve Cover
• Material: Stainless Steel
• Processing: Investment-Cast

Valve Cover Design and Assembly

• Cover profile: define the outside contour and the joint with the adjoining valve body.
• Fastener layout: provide hole positions, thread details and access around the mounting points.
• Contact and clearance: identify any sealing face and the space required around internal valve components.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Investment casting is included in the specified route. Identify which features remain as cast and which require finishing so the casting requirements and final assembly dimensions can be reviewed together.

Quotation Information

The drawing should define the cover profile, bolt pattern, sealing face and clearance for internal valve parts. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
