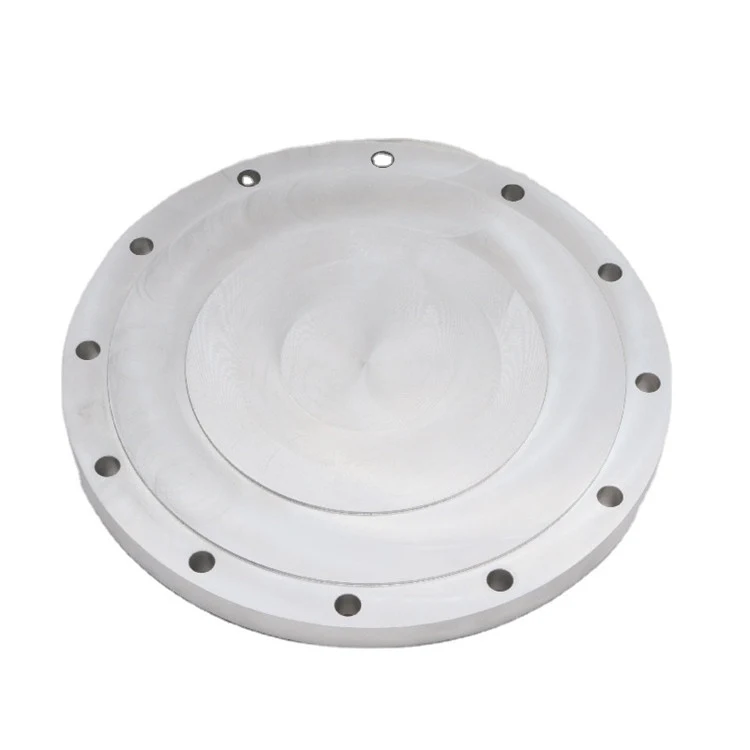

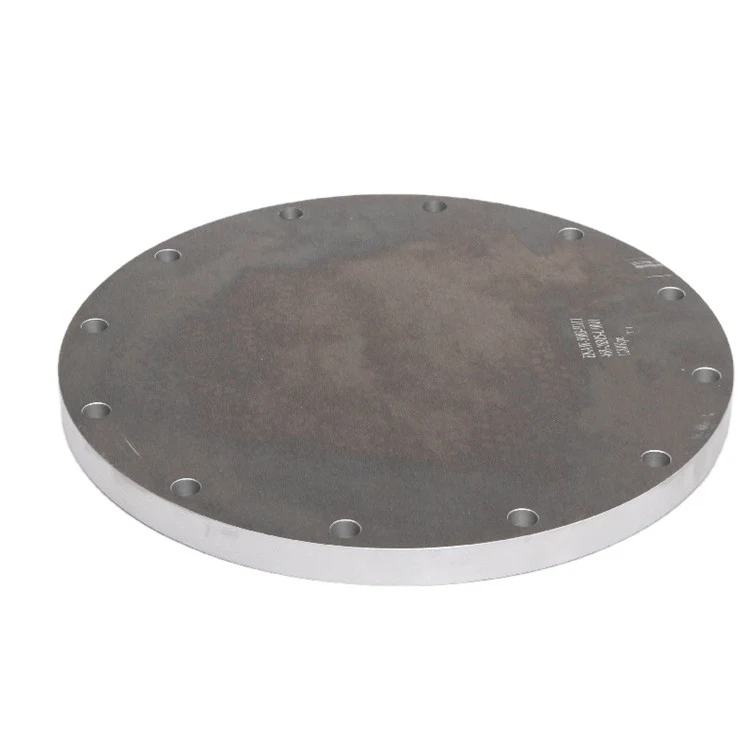

Custom Aluminum Cover

A cover item for the mating housing or assembly specified for this component. This cover is specified in Aluminum. The manufacturing specification includes machining.

Technical Overview

• Part: Cover
• Material: Aluminum
• Processing: Machined

Cover Design and Assembly

• Outer profile: define the cover contour and its relationship to the adjoining housing.
• Attachment pattern: show locating features and fastening positions.
• Enclosed space: identify clearances, access openings and any contact-face requirements included in the design.

Material and Manufacturing Requirements

The specified material is aluminum. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Machining is included in the part specification. The drawing should distinguish functional interfaces from general surfaces and identify the dimensions that must be coordinated with the adjoining components.

Quotation Information

Define the outer profile, fastening locations and clearance to the enclosed components. Include any sealing-face requirements. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
