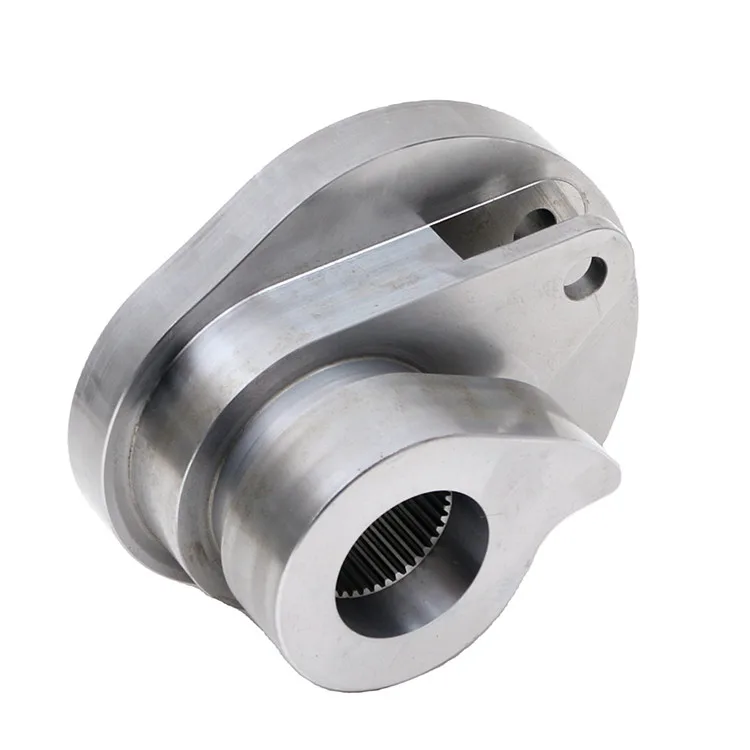

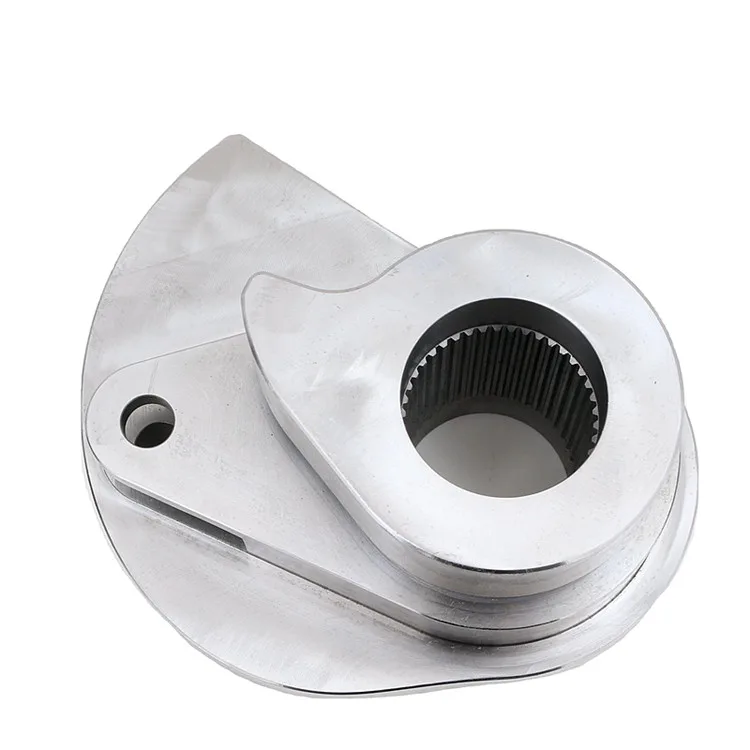

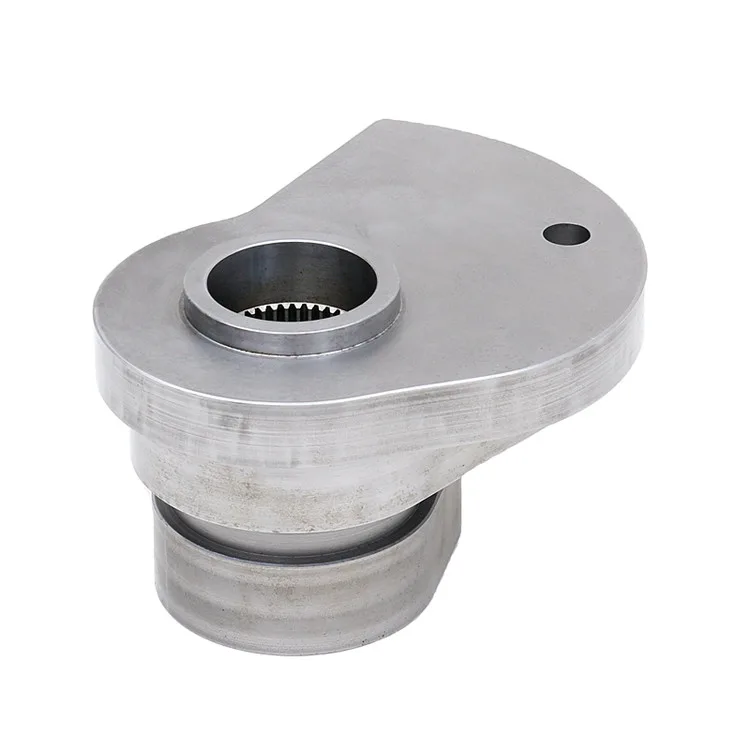

Forged Alloy Steel Cam

A cam item whose profile defines its interaction with the mating follower or linkage. This cam is specified in Alloy Steel. The manufacturing specification includes forging and precision machining.

Technical Overview

• Part: Cam
• Material: Alloy Steel
• Processing: Precision Machined, Forged

Cam Design and Assembly

• Working contour: provide the cam profile rather than relying only on an overall outline.
• Pivot or bore: identify the attachment geometry and its position relative to the contour.
• Motion relationship: state the reference angle and the mating follower or linkage arrangement.

Material and Manufacturing Requirements

The specified material is alloy steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Forging is included in the specification. Identify the finished-part geometry and distinguish surfaces requiring later machining from those to be accepted in the forged condition.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Provide the cam contour, reference angle, pivot or shaft bore and the required relationship to the driven mechanism. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
