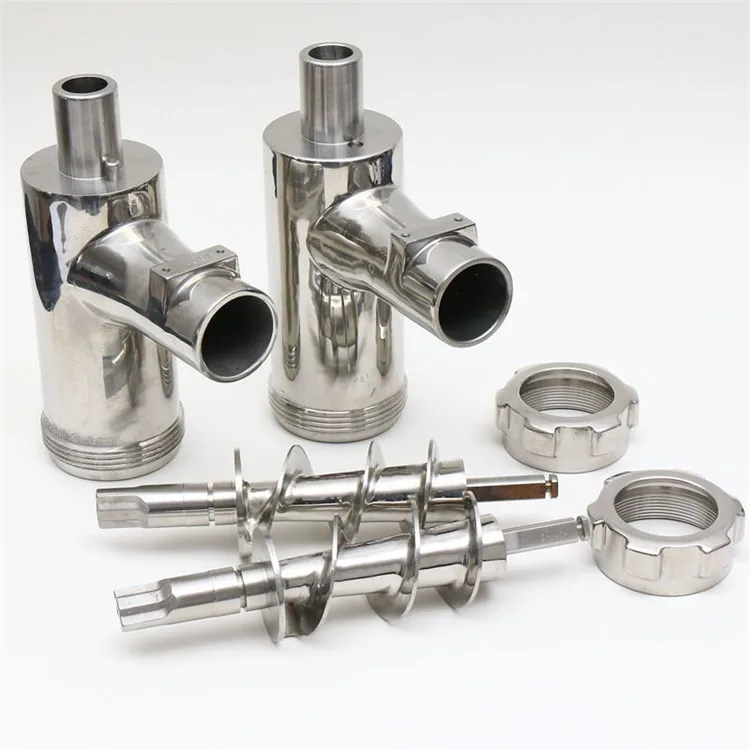

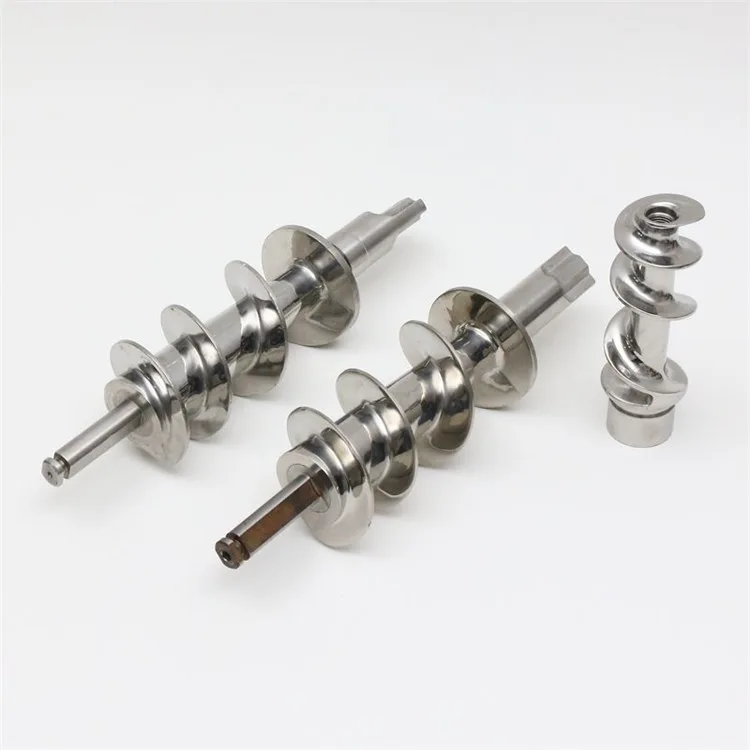

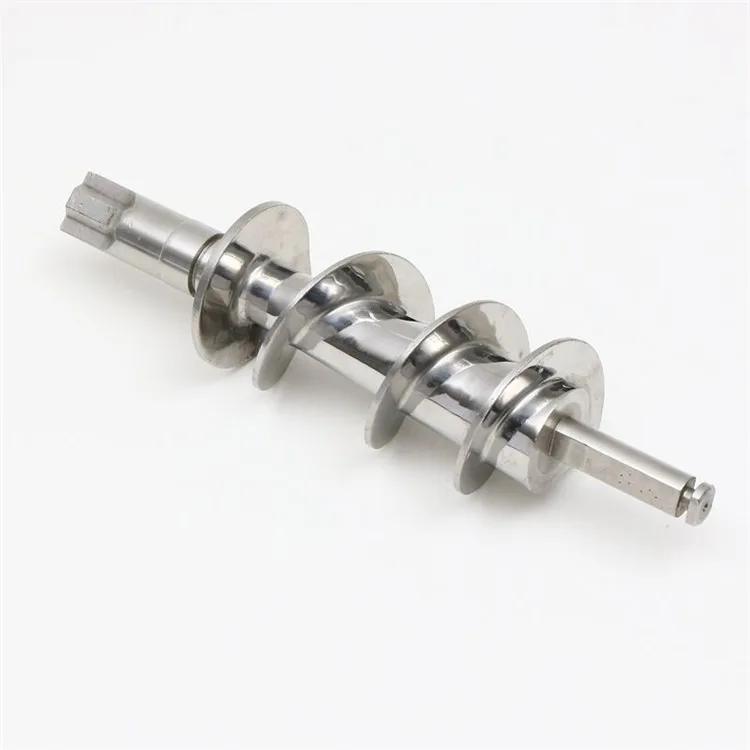

Precision Machined Stainless Steel Mixing Shaft

A shaft item for a mixing assembly, with mixer attachment details defined by the equipment design. This mixing shaft is specified in Stainless Steel. The manufacturing specification includes precision machining.

Technical Overview

• Part: Mixing Shaft
• Material: Stainless Steel
• Processing: Precision Machined

Mixing Shaft Design and Assembly

• Drive interface: specify the connection between the shaft and the mixer drive.
• Working section: define the shaft length and the attachment of mixing elements included in the assembly.
• Equipment fit: provide bearing positions, operating clearances and product-contact surface requirements where applicable.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Specify shaft length, drive connection, mixing-element attachment and operating clearances. Identify any product-contact surface requirements. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
