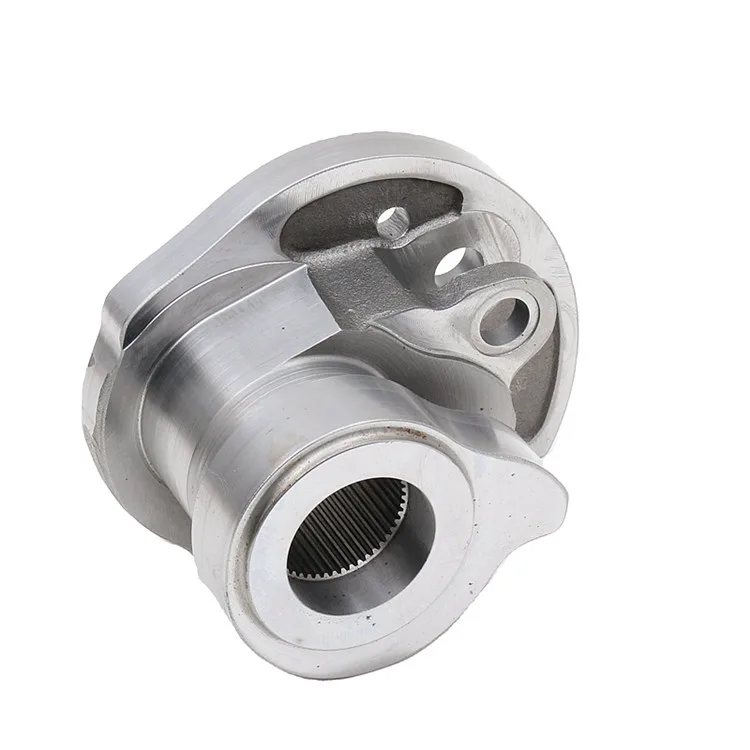

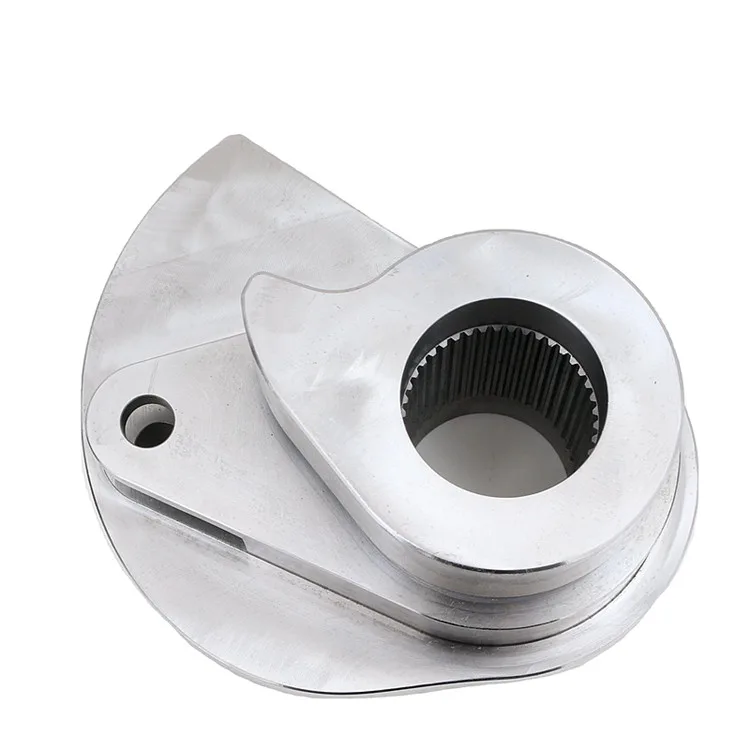

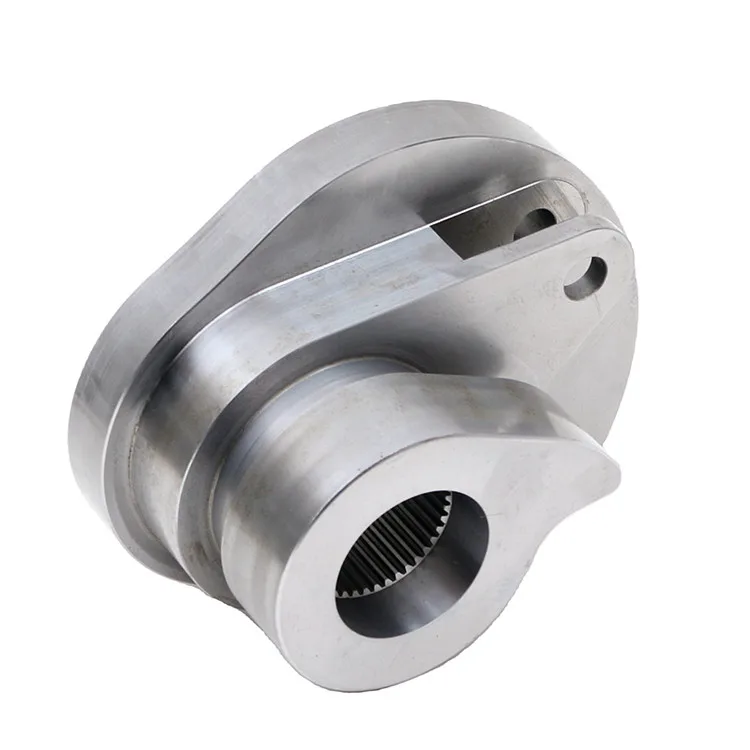

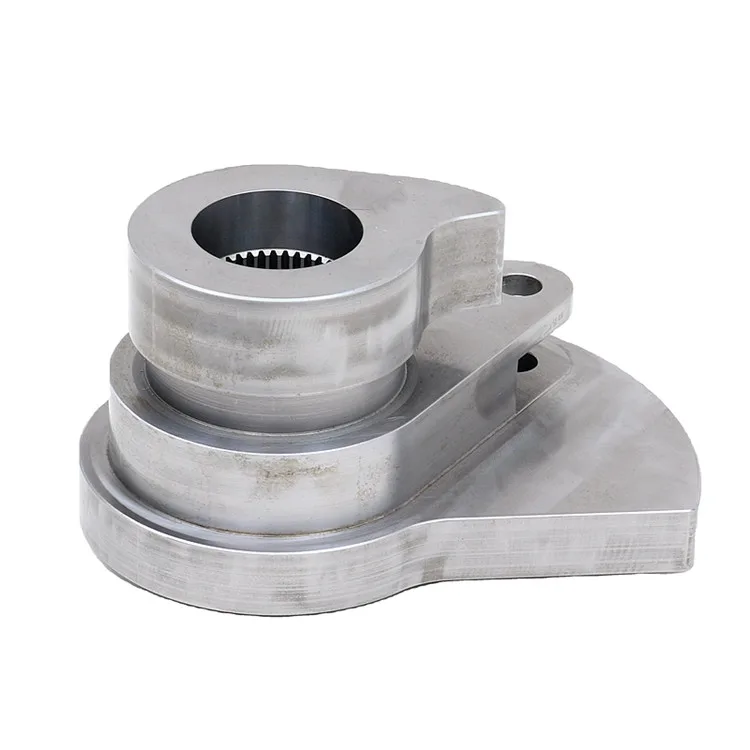

Hot-Forged High-Pressure Equipment Cam

A cam item whose profile defines its interaction with the mating follower or linkage. This high-pressure equipment cam is produced to the specified part drawing. The manufacturing specification includes hot forging and precision machining.

Technical Overview

• Part: High-Pressure Equipment Cam
• Processing: Precision Machined, Hot-Forged

High-Pressure Equipment Cam Design and Assembly

• Working contour: provide the cam profile rather than relying only on an overall outline.
• Pivot or bore: identify the attachment geometry and its position relative to the contour.
• Motion relationship: state the reference angle and the mating follower or linkage arrangement.

Material and Manufacturing Requirements

The material grade is to be defined with the order drawing. Identify the intended equipment and service environment so that the material requirement can be agreed before the manufacturing specification is finalized.

Hot forging is included in the specification. Distinguish the forged blank from the finished component, with any subsequent machining, trimming and treatment requirements stated in the order drawing.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Provide the cam contour, reference angle, pivot or shaft bore and the required relationship to the driven mechanism. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
