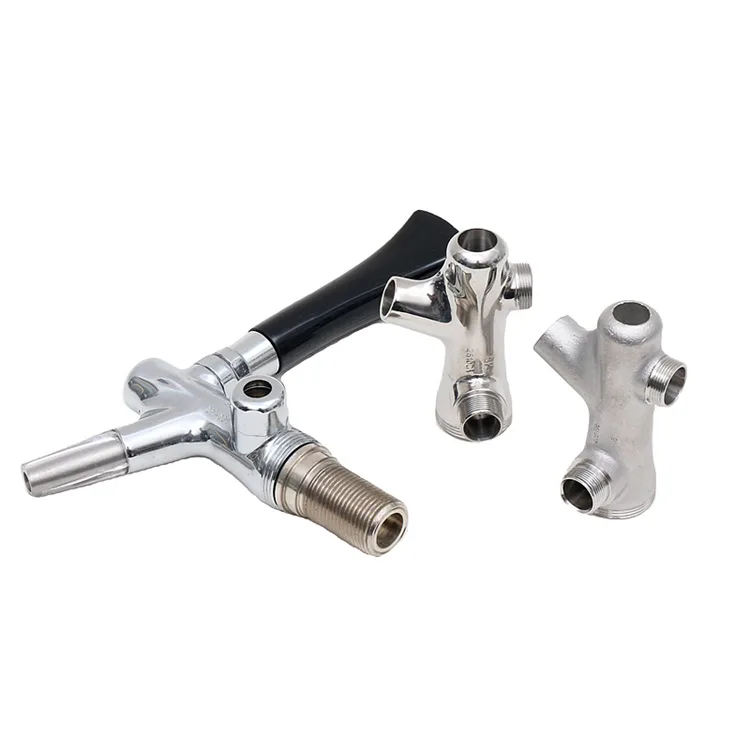

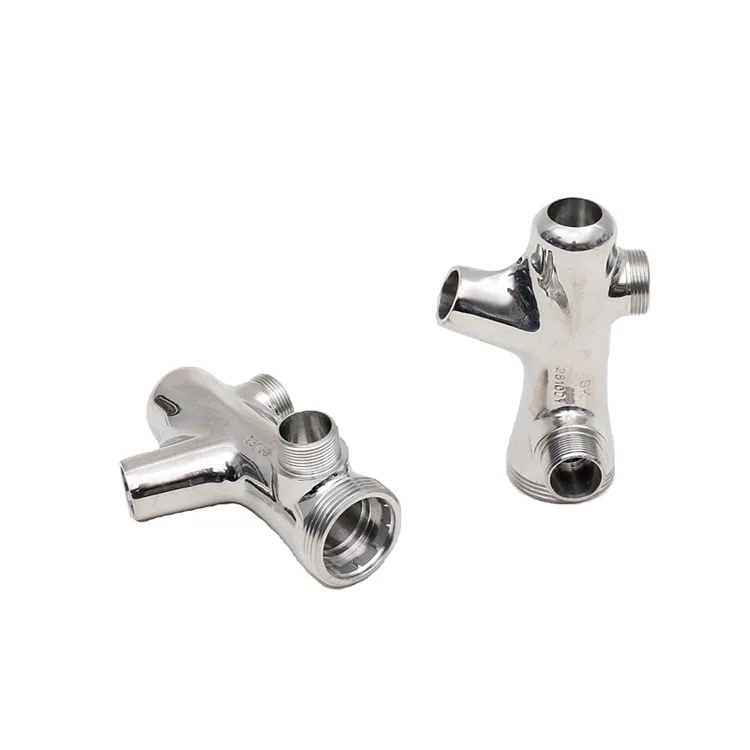

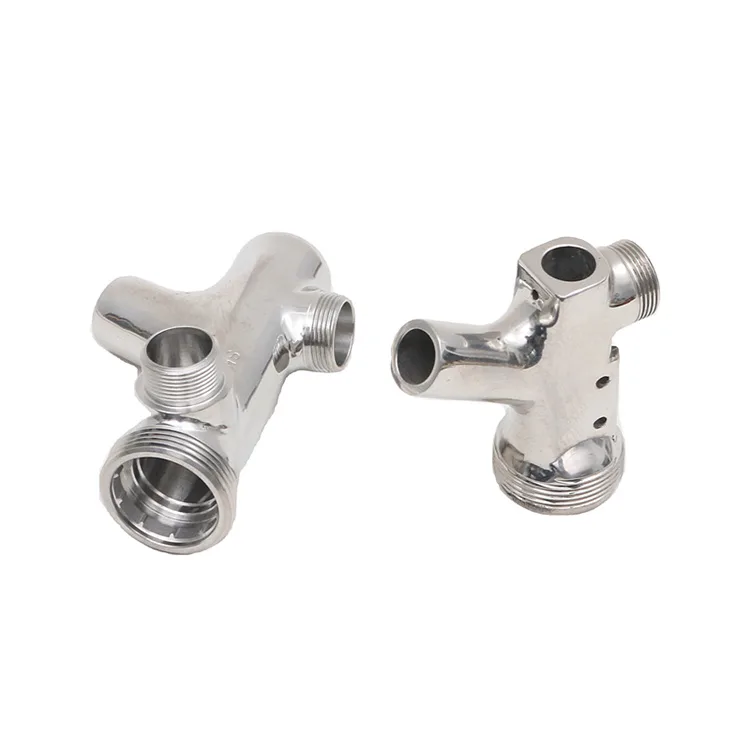

Investment-Cast Stainless Steel Water Tap

A tap item for the dispensing arrangement used with this component. This water tap is specified in Stainless Steel. The manufacturing specification includes investment casting and machining.

Technical Overview

• Part: Water Tap
• Material: Stainless Steel
• Processing: Machined, Investment-Cast

Water Tap Design and Assembly

• Supply connection: specify the inlet fitting and installation geometry.
• Operating interface: identify the mating handle, valve and sealing components as applicable.
• Dispensing outlet: provide outlet geometry and the material requirements for the intended fluid.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Investment casting is included in the specified route. Identify which features remain as cast and which require finishing so the casting requirements and final assembly dimensions can be reviewed together.

Machining is included in the part specification. The drawing should distinguish functional interfaces from general surfaces and identify the dimensions that must be coordinated with the adjoining components.

Quotation Information

Specify inlet connection, operating mechanism interfaces and outlet geometry. Confirm material and sealing requirements for the intended fluid. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
