Description

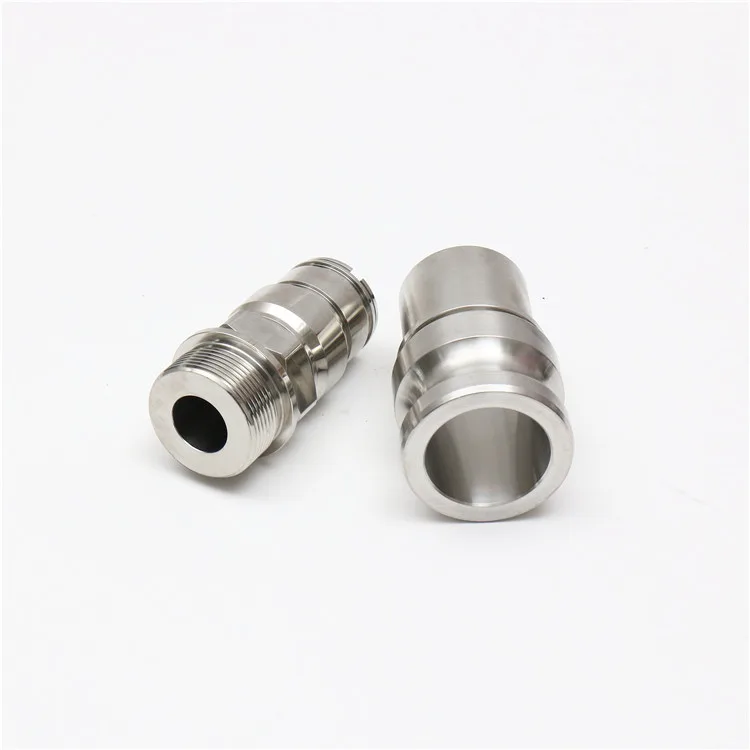

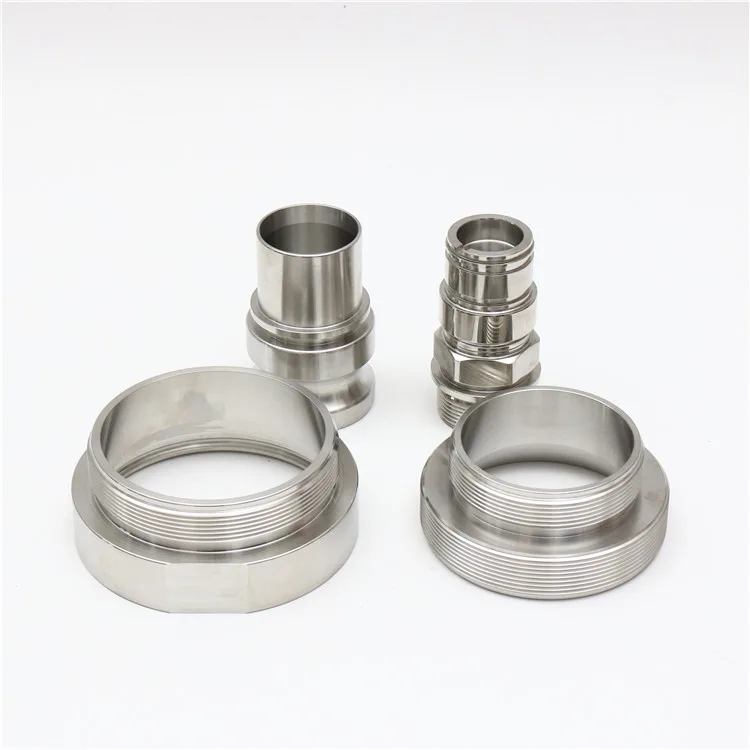

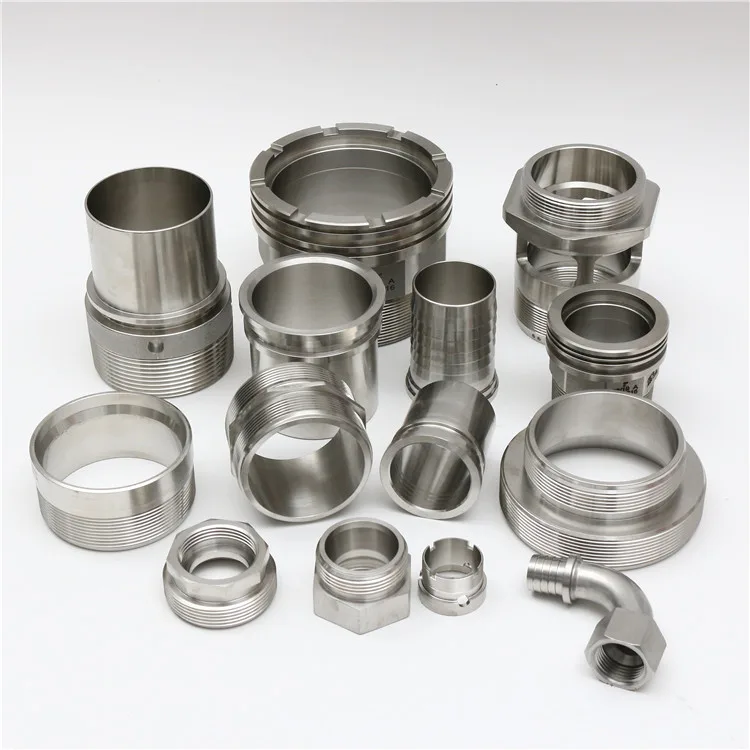

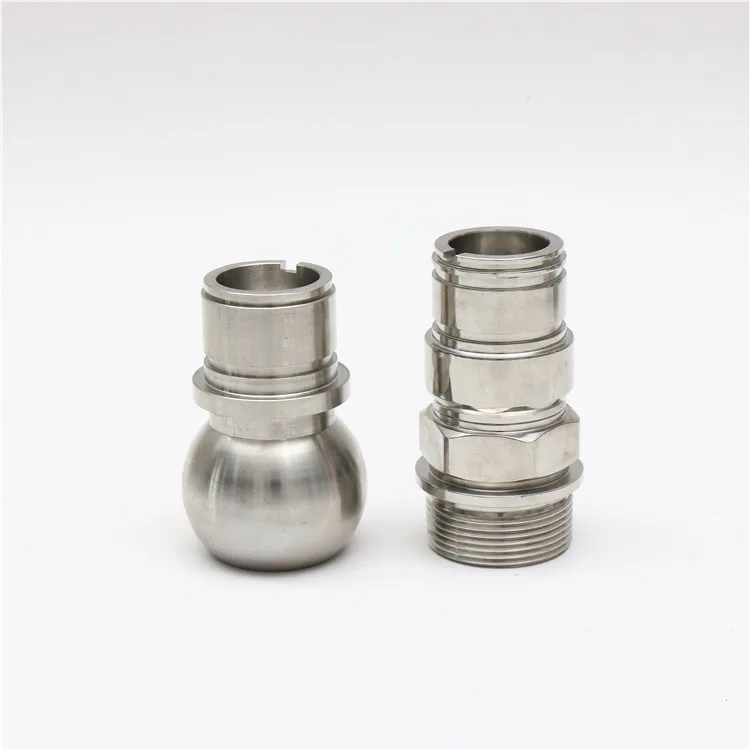

CNC Machined Stainless Steel Pipe Fitting
A pipe fitting for the connection arrangement shown in the order drawing. This pipe fitting is specified in Stainless Steel. The manufacturing specification includes CNC machining.
Technical Overview
Part: Pipe Fitting
Material: Stainless Steel
Processing: CNC Machined
Pipe Fitting Design and Assembly
End connections: identify the thread, tube, weld or other connection types actually required.
Flow opening: specify bore dimensions and the relationship between the two ends.
Installation features: define wrenching flats, orientation and the space available for assembly.
Material and Manufacturing Requirements
The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.
CNC machining is specified for this component. Supply the latest drawing and, where available, the 3D model, with critical fits and reference datums identified rather than relying on the external shape alone.
Quotation Information
Specify end types, nominal dimensions, bore and any wrenching features. Confirm the applicable thread or connection standard. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
