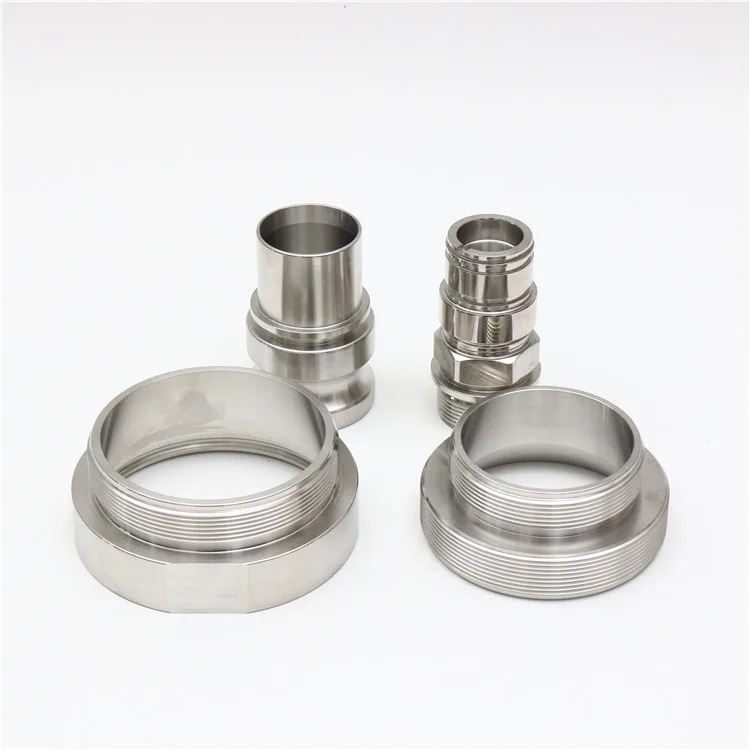

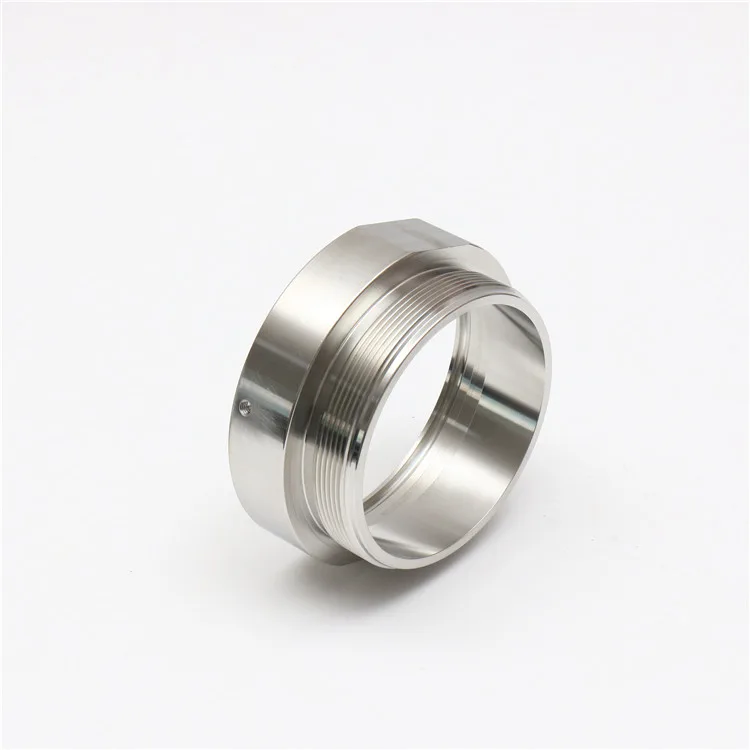

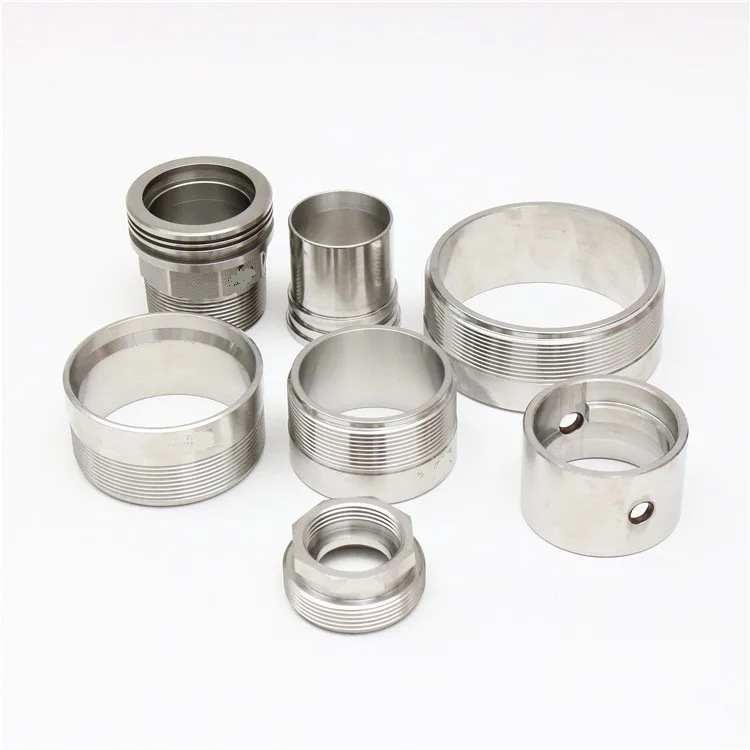

Stainless Steel Threaded Connector

A connector incorporating the threaded interface specified for this component. This threaded connector is specified in Stainless Steel. The manufacturing specification includes precision machining.

Technical Overview

• Part: Threaded Connector
• Material: Stainless Steel
• Processing: Precision Machined

Threaded Connector Design and Assembly

• Two-sided interface: provide the dimensions of each mating end and identify the connected components.
• Location and orientation: show the reference features used to position the connector.
• Connection requirements: specify thread, sealing or retention details applicable to the selected design.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Specify thread designation, engagement length, lead-in features and the mating connection geometry. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
