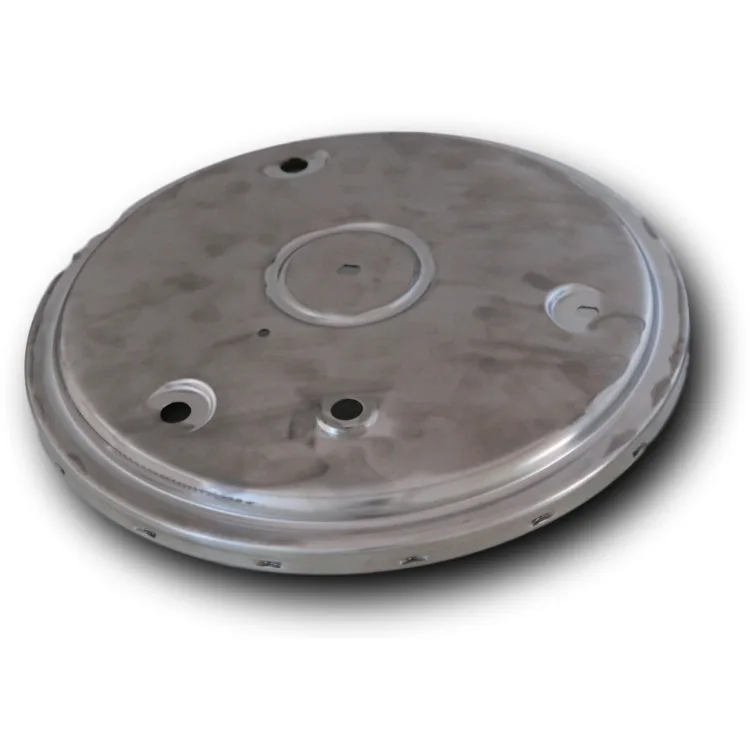

Stainless Steel Pump Casing Cover

A cover for the pump casing, matched to the casing joint and fastening points. This pump casing cover is specified in Stainless Steel.

Technical Overview

• Part: Pump Casing Cover
• Material: Stainless Steel

Pump Casing Cover Design and Assembly

• Casing geometry: provide the internal contour, openings and joint-face arrangement.
• Mounting references: define the surfaces and hole pattern used to locate the pump assembly.
• Mating components: show interfaces with the cover, shaft assembly and any sealing elements included in the design.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

The manufacturing route should be agreed against the finished geometry and order quantity. Identify the surfaces and mating features that govern acceptance rather than specifying processes that are not required by the design.

Quotation Information

Define the joint face, fastener locations, seal groove if present and clearance to rotating components. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
