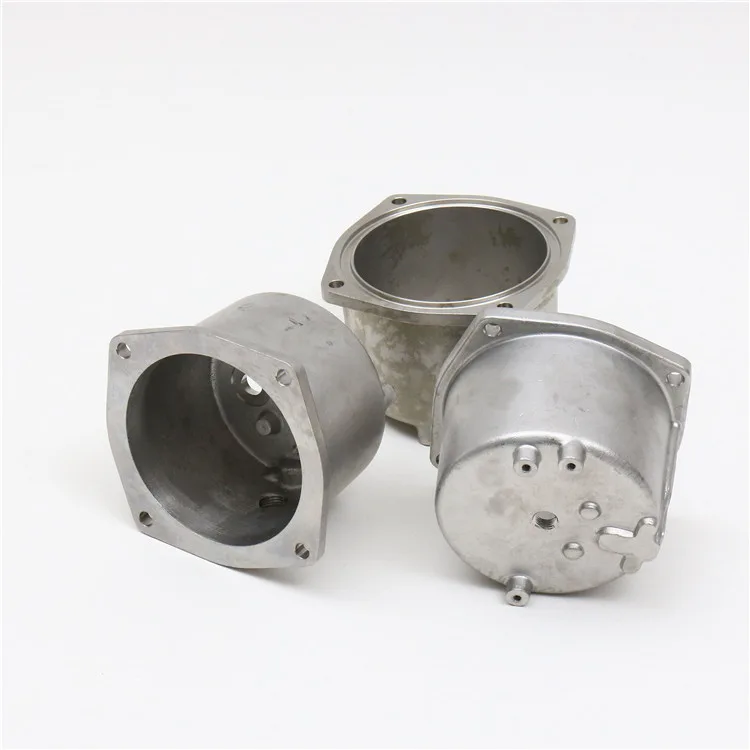

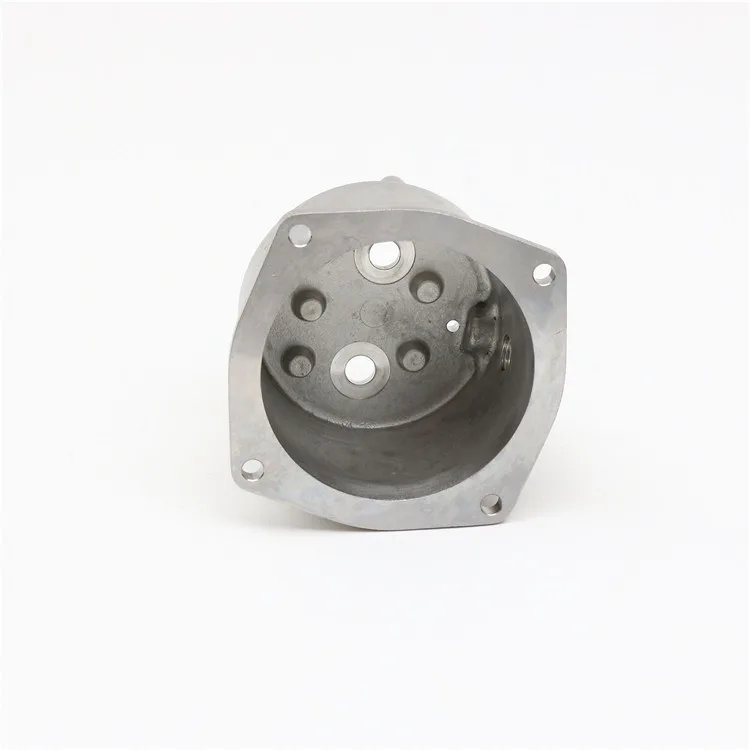

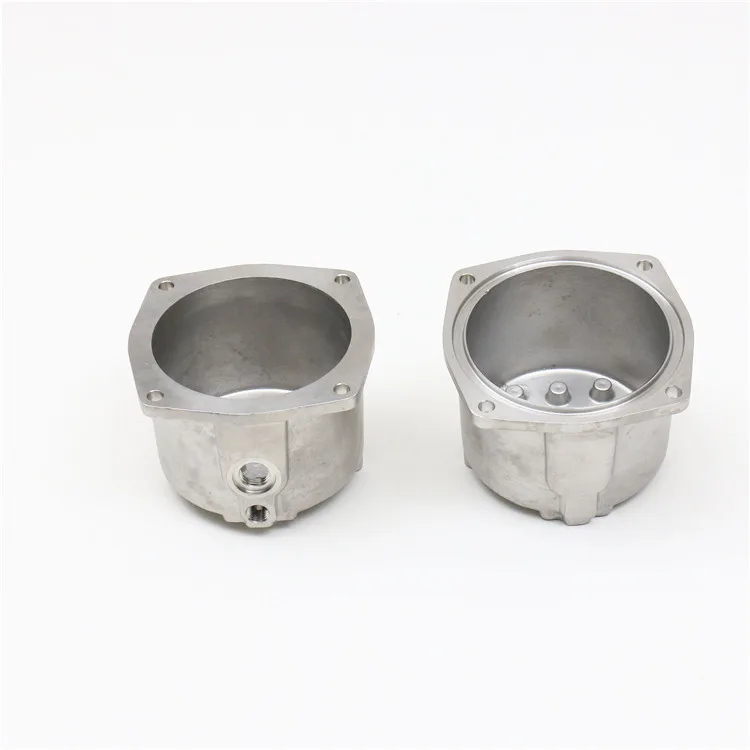

Stainless Steel Connector

A connector item for joining the components specified in the assembly drawing. This connector is specified in Stainless Steel.

Technical Overview

• Part: Connector
• Material: Stainless Steel

Connector Design and Assembly

• Two-sided interface: provide the dimensions of each mating end and identify the connected components.
• Location and orientation: show the reference features used to position the connector.
• Connection requirements: specify thread, sealing or retention details applicable to the selected design.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

The manufacturing route should be agreed against the finished geometry and order quantity. Identify the surfaces and mating features that govern acceptance rather than specifying processes that are not required by the design.

Quotation Information

Provide the geometry at both ends, locating features and required assembly fit. State the connection standard where relevant. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
