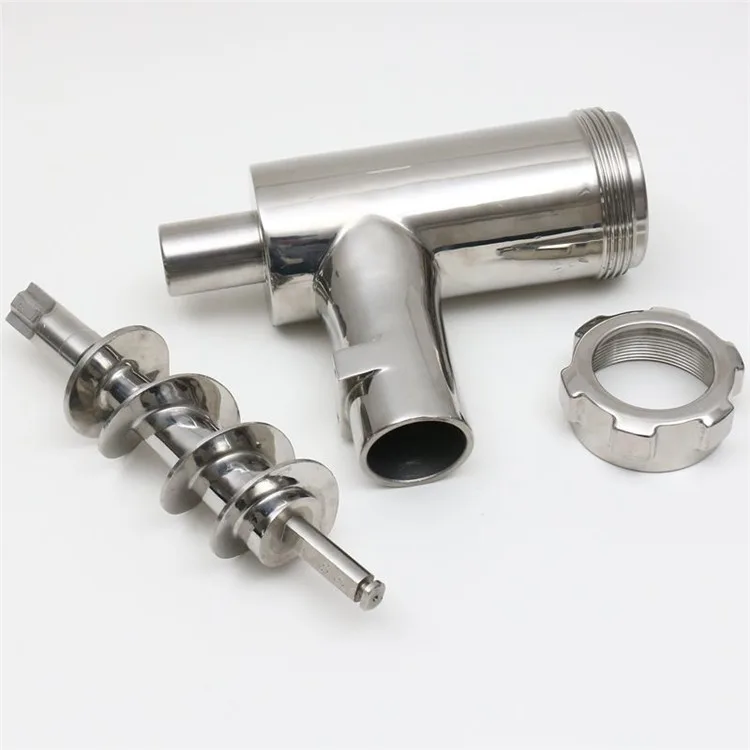

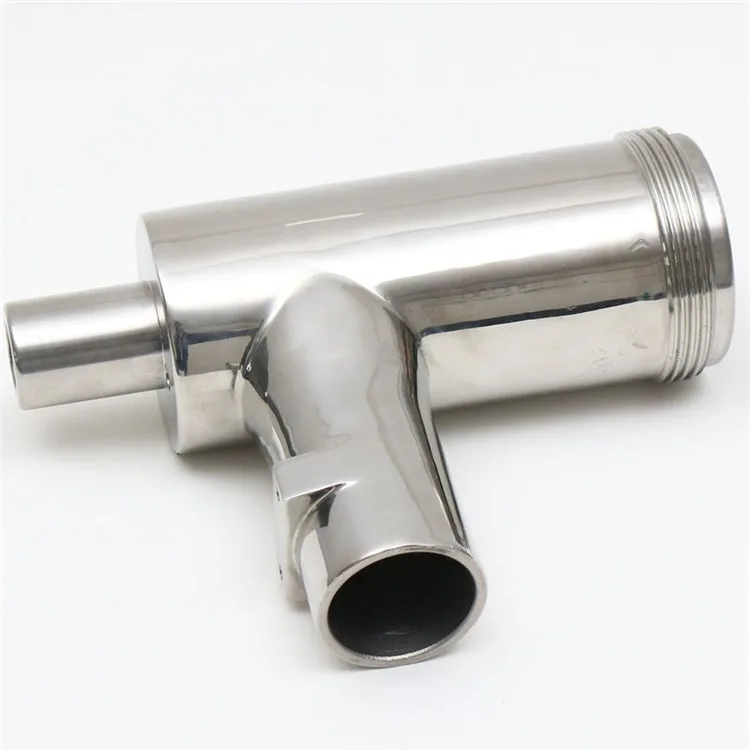

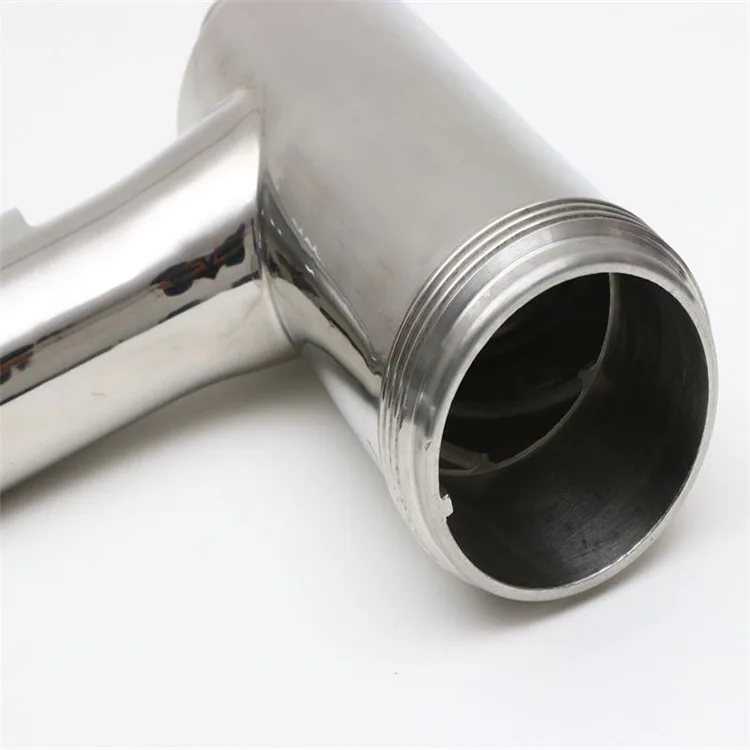

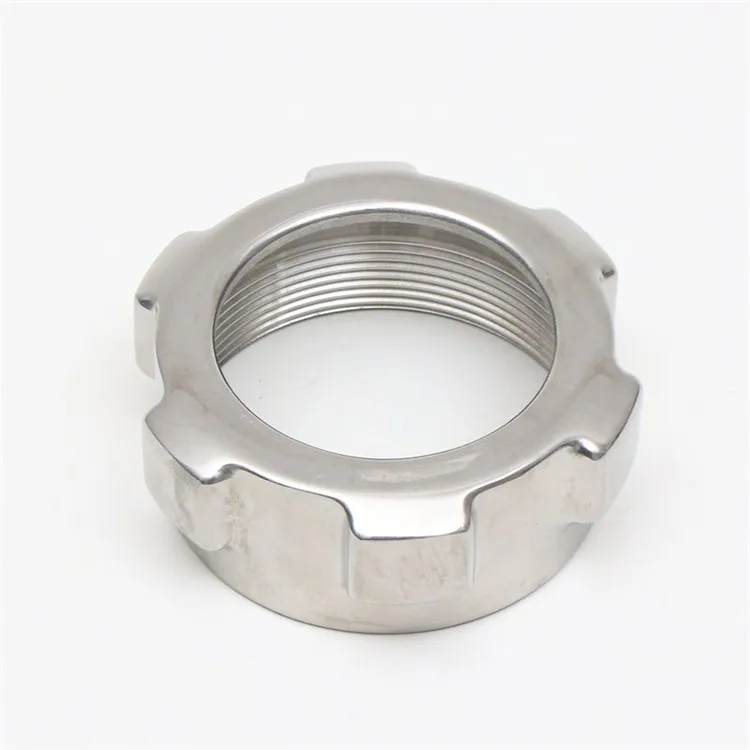

Cast Meat Grinder Component

An item for the meat grinder assembly used with this component. This meat grinder component is produced to the specified part drawing. The manufacturing specification includes casting and precision machining.

Technical Overview

• Part: Meat Grinder Component
• Processing: Precision Machined, Cast

Meat Grinder Component Design and Assembly

• Machine identification: provide the grinder model and the exact component position.
• Mating geometry: show the connection to the drive, chamber, cutter or other relevant neighboring part.
• Contact requirements: specify material grade and surface condition for any areas that contact the processed product.

Material and Manufacturing Requirements

The material grade is to be defined with the order drawing. Identify the intended equipment and service environment so that the material requirement can be agreed before the manufacturing specification is finalized.

Casting is specified for this part. Clarify the required casting geometry, the surfaces to be machined and any acceptance criteria relevant to the finished component rather than assuming a universal casting specification.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Identify the exact part and grinder model, then provide mating dimensions and any material or surface requirements for food-contact locations. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
