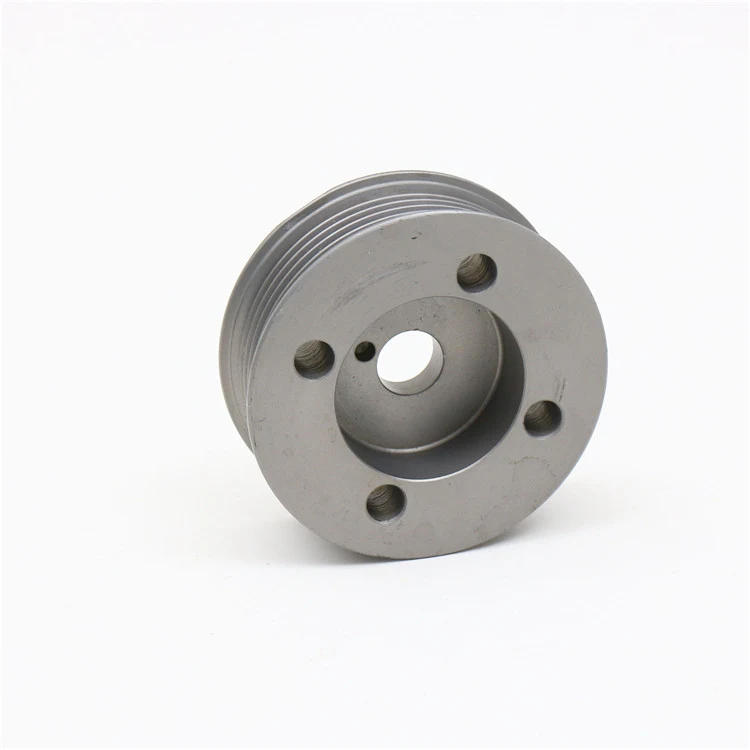

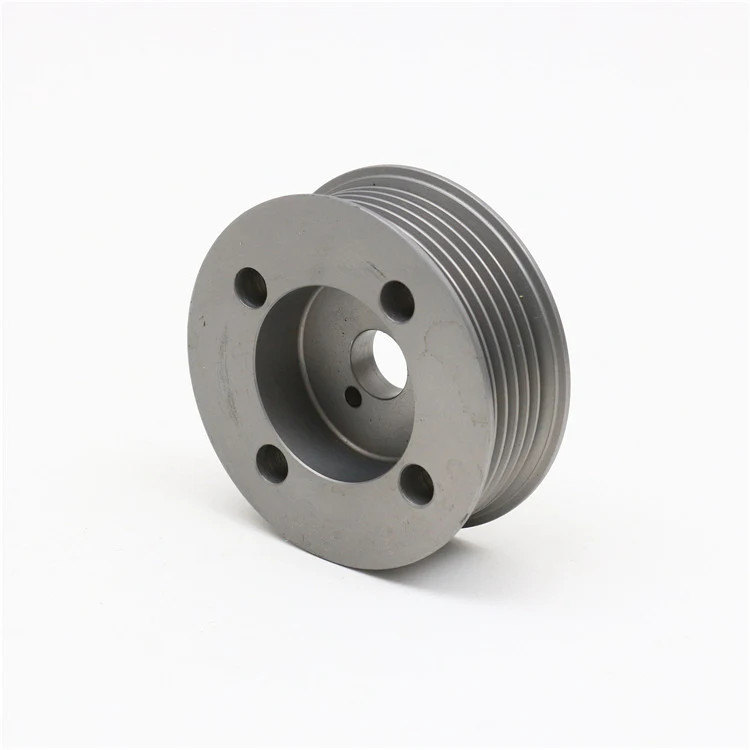

Custom Pulley

A pulley item whose profile must match the selected belt and shaft connection. This pulley is produced to the specified part drawing. The manufacturing specification includes machining.

Technical Overview

• Part: Pulley
• Processing: Machined

Pulley Design and Assembly

• Belt interface: define the groove profile and the belt specification used in the assembly.
• Working dimensions: state pulley diameter, width and the number of grooves.
• Hub connection: show the shaft fit and any keyway, retaining feature or fastening arrangement.

Material and Manufacturing Requirements

The material grade is to be defined with the order drawing. Identify the intended equipment and service environment so that the material requirement can be agreed before the manufacturing specification is finalized.

Machining is included in the part specification. The drawing should distinguish functional interfaces from general surfaces and identify the dimensions that must be coordinated with the adjoining components.

Quotation Information

Provide groove form, pitch diameter, groove count, bore dimensions and hub attachment details. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
