Description

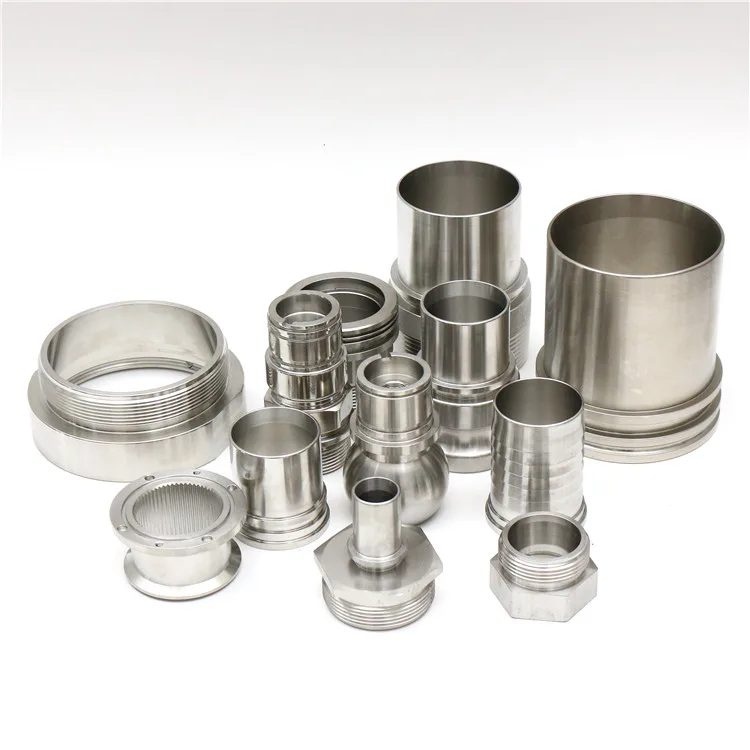

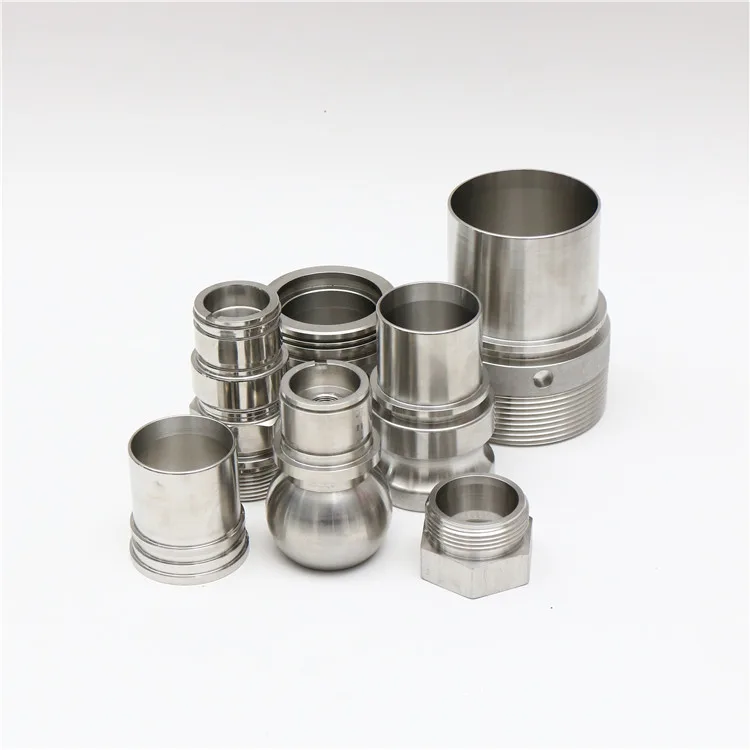

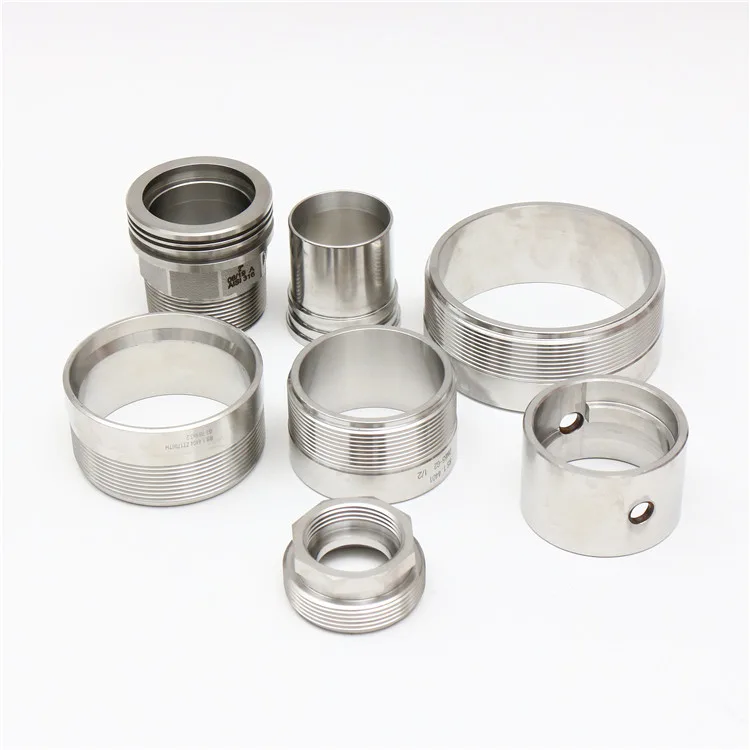

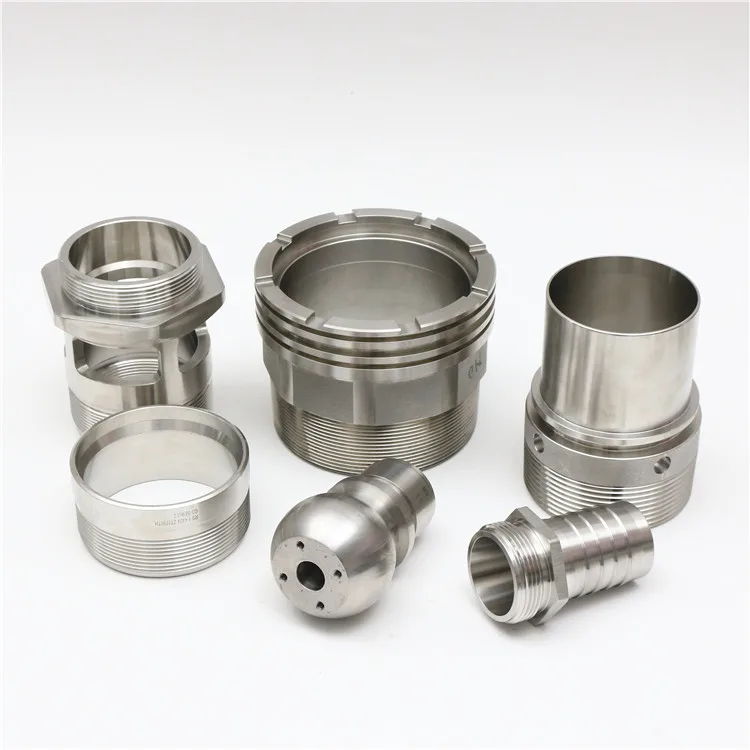

CNC Machined Threaded Pipe Fitting
A pipe fitting for the connection arrangement shown in the order drawing. This threaded pipe fitting is produced to the specified part drawing. The manufacturing specification includes CNC machining.
Technical Overview
- Part: Threaded Pipe Fitting
- Processing: CNC Machined
Threaded Pipe Fitting Design and Assembly
- End connections: identify the thread, tube, weld or other connection types actually required.
- Flow opening: specify bore dimensions and the relationship between the two ends.
- Installation features: define wrenching flats, orientation and the space available for assembly.
Material and Manufacturing Requirements
The material grade is to be defined with the order drawing. Identify the intended equipment and service environment so that the material requirement can be agreed before the manufacturing specification is finalized.
CNC machining is specified for this component. Supply the latest drawing and, where available, the 3D model, with critical fits and reference datums identified rather than relying on the external shape alone.
Quotation Information
Specify end types, nominal dimensions, bore and any wrenching features. Confirm the applicable thread or connection standard. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
