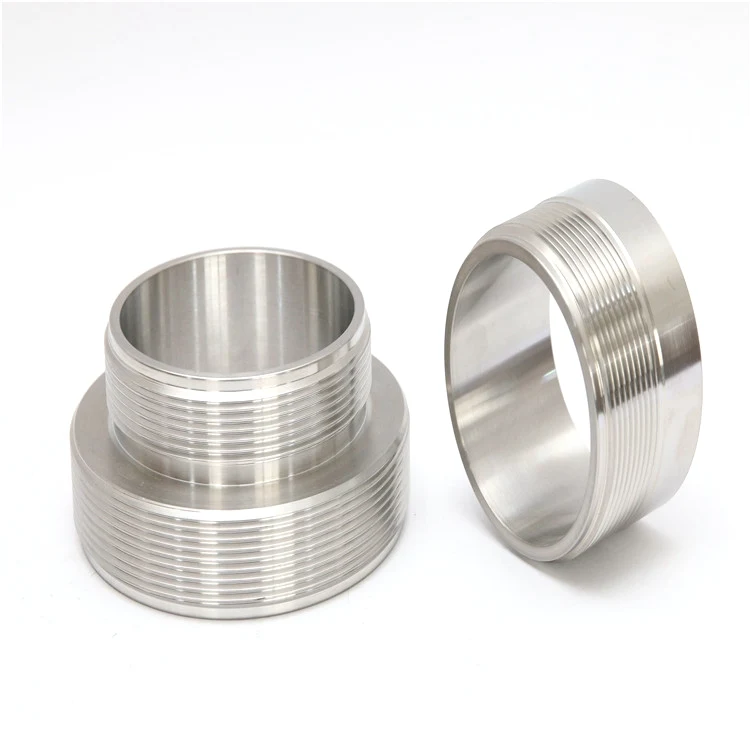

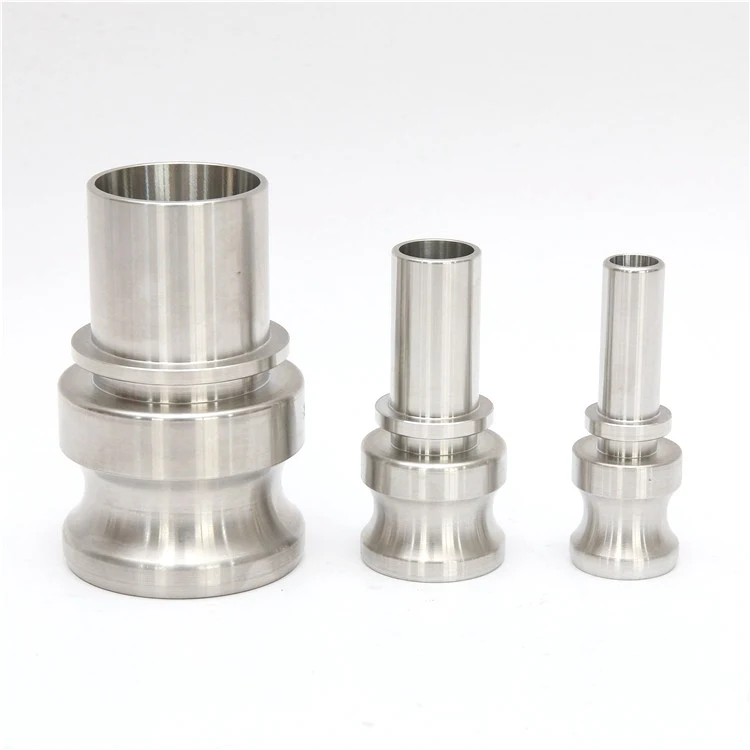

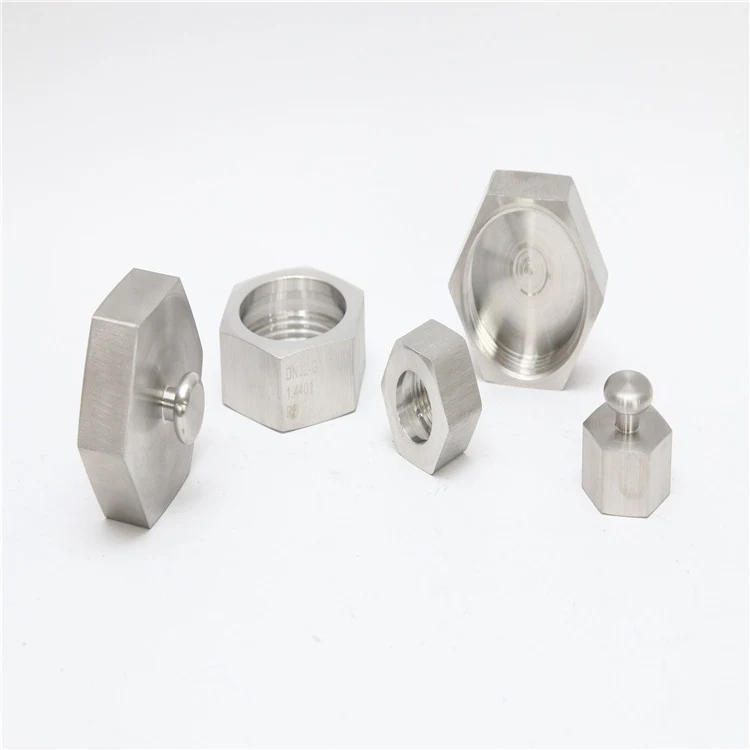

Custom Pipe Fitting

A pipe fitting for the connection arrangement shown in the order drawing. This pipe fitting is produced to the specified part drawing. The manufacturing specification includes precision machining.

Technical Overview

• Part: Pipe Fitting
• Processing: Precision Machined

Pipe Fitting Design and Assembly

• End connections: identify the thread, tube, weld or other connection types actually required.
• Flow opening: specify bore dimensions and the relationship between the two ends.
• Installation features: define wrenching flats, orientation and the space available for assembly.

Material and Manufacturing Requirements

The material grade is to be defined with the order drawing. Identify the intended equipment and service environment so that the material requirement can be agreed before the manufacturing specification is finalized.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Specify end types, nominal dimensions, bore and any wrenching features. Confirm the applicable thread or connection standard. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
