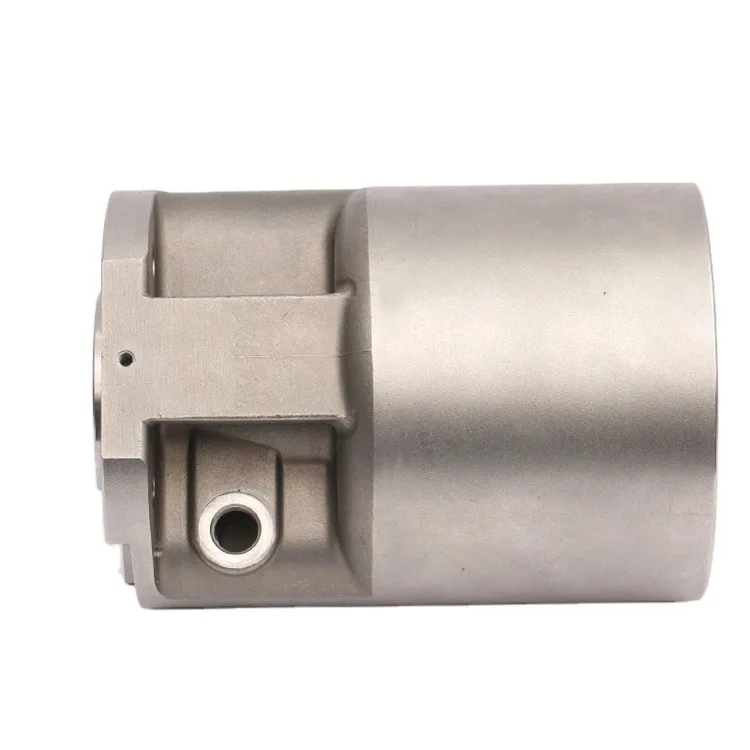

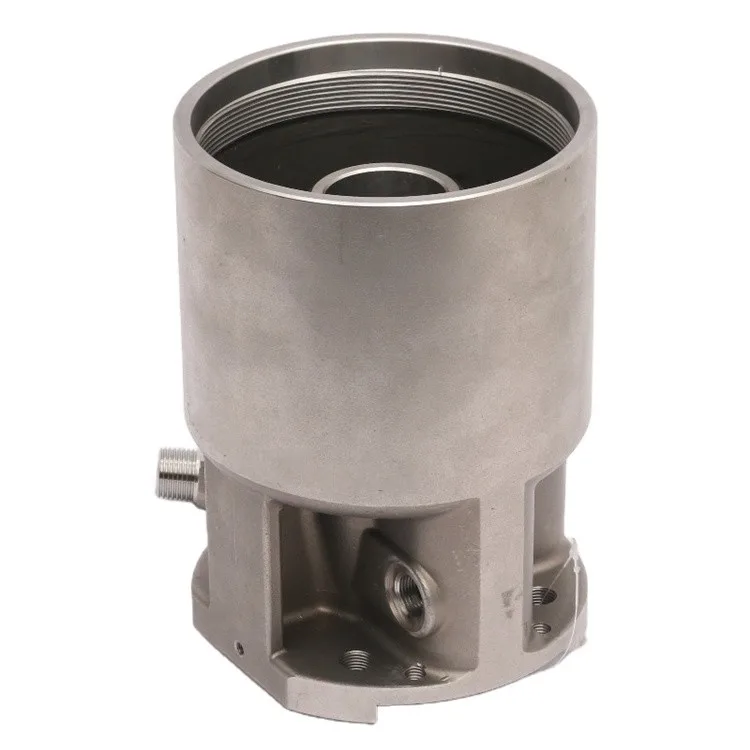

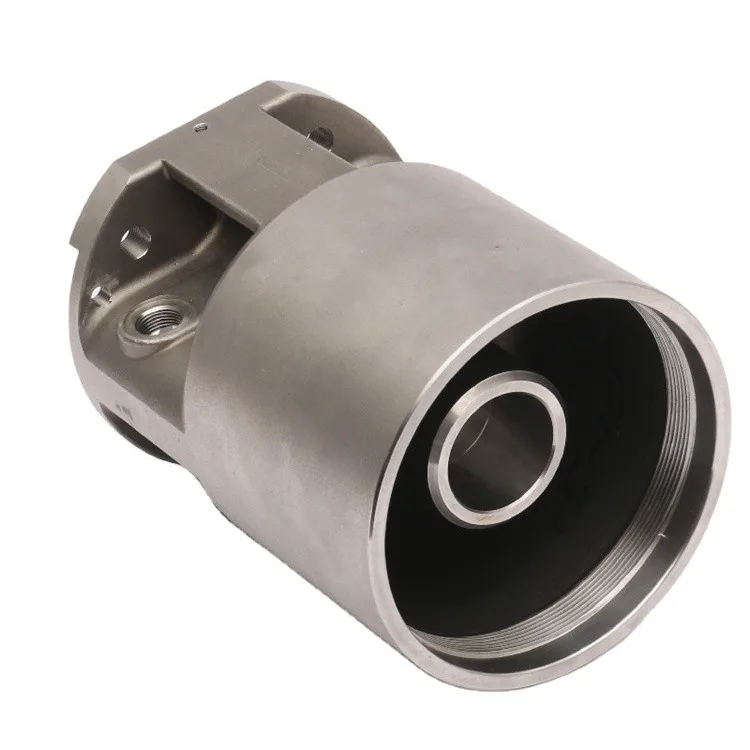

Cast Stainless Steel Hydraulic Chamber

A chamber part for a hydraulic assembly. This hydraulic chamber is specified in Stainless Steel. The manufacturing specification includes casting and precision machining.

Technical Overview

• Part: Hydraulic Chamber
• Material: Stainless Steel
• Processing: Precision Machined, Cast

Hydraulic Chamber Design and Assembly

• System interface: identify the part's position within the hydraulic assembly and the adjoining components.
• Functional geometry: specify the applicable bores, ports, connection faces or sealing features.
• Service requirements: provide the hydraulic working conditions and the drawing requirements associated with them.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Casting is specified for this part. Clarify the required casting geometry, the surfaces to be machined and any acceptance criteria relevant to the finished component rather than assuming a universal casting specification.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Specify internal passages, connection ports and sealing interfaces. Pressure-related requirements must be defined for the intended system. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
