Welded Stainless Steel Mechanical Arm

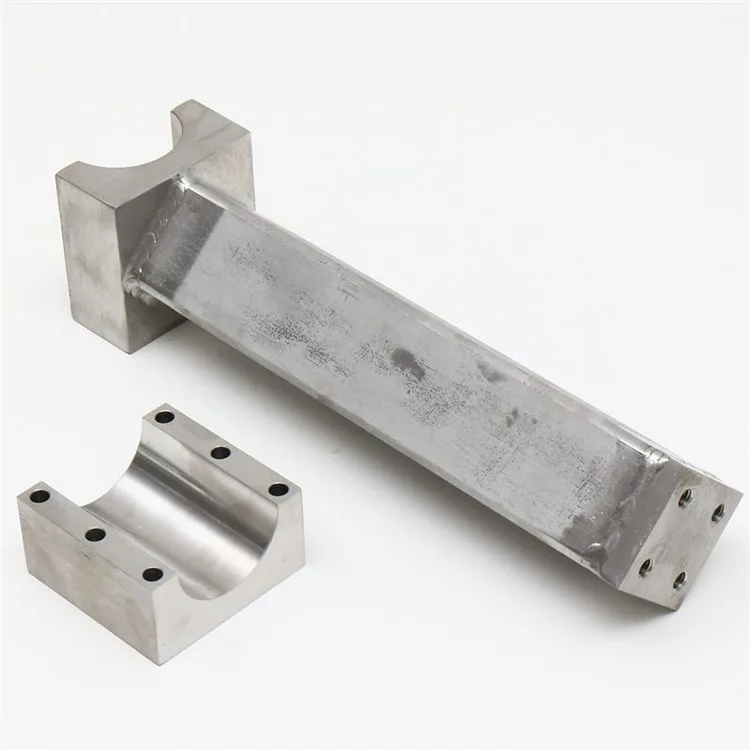

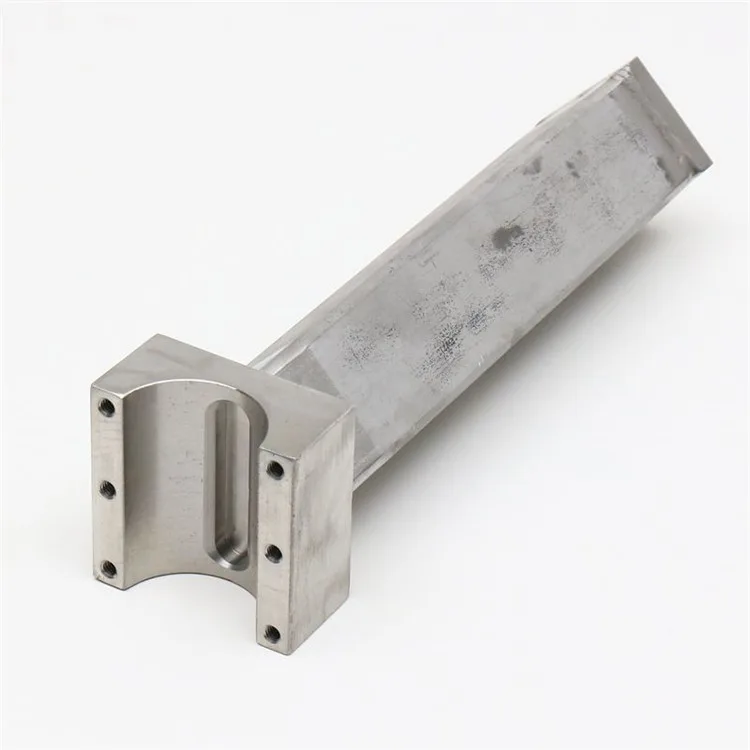

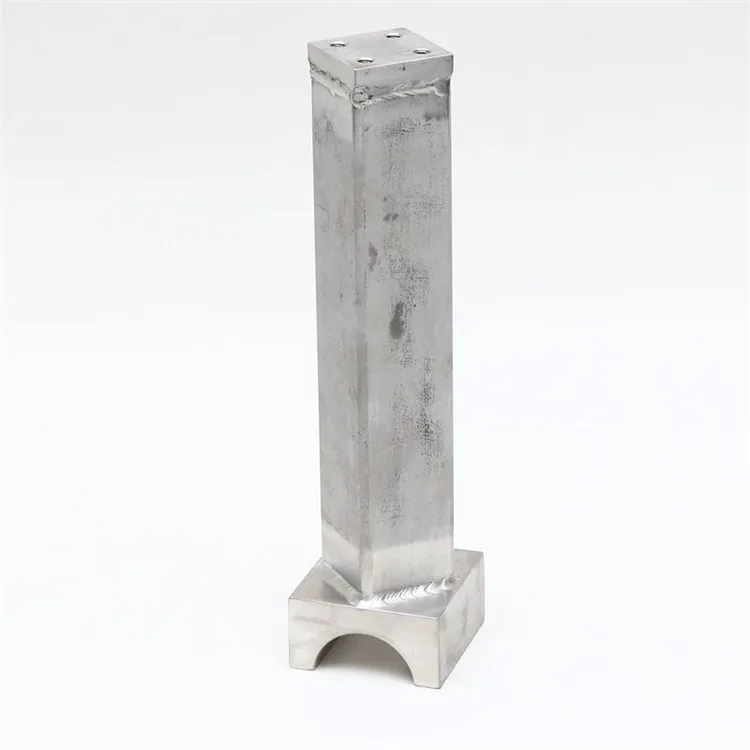

A part for the mechanical arm assembly specified for this component. This mechanical arm is specified in Stainless Steel. The manufacturing specification includes machining and welding.

Technical Overview

• Part: Mechanical Arm
• Material: Stainless Steel
• Processing: Machined, Welded

Mechanical Arm Design and Assembly

• Joint locations: define pivot or attachment points and their relationship to the arm profile.
• Mounting datums: identify the surfaces used to align the arm with the adjoining assembly.
• Movement clearance: provide the neighboring-part geometry needed to review the installed envelope.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

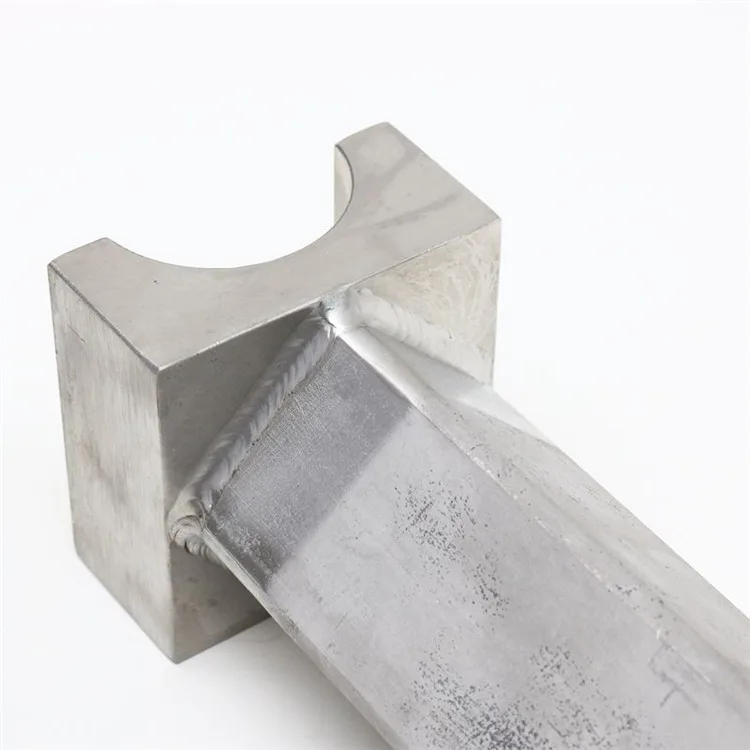

Welding is included in the specification. Define joint locations, assembly references and any machining needed after joining, with inspection requirements stated for the actual welded part.

Machining is included in the part specification. The drawing should distinguish functional interfaces from general surfaces and identify the dimensions that must be coordinated with the adjoining components.

Quotation Information

Supply joint locations, mounting datums and adjoining-part interfaces. Define the required alignment between these features. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
